B/W MONITOR
Art. 6300
Art. 6301
Art. 6500
Art. 6501
POWER SUPPLY
Art. 6680
Mains
DISEGNO N° vc4843
B/W MONITOR
Art. 6000 +
Art. 6200 +
Art. 6145
*
COLOUR
MONITOR
Art. 6003 +
Art. 6200 +
Art. 6145
COLOUR
MONITOR
Art. 6303

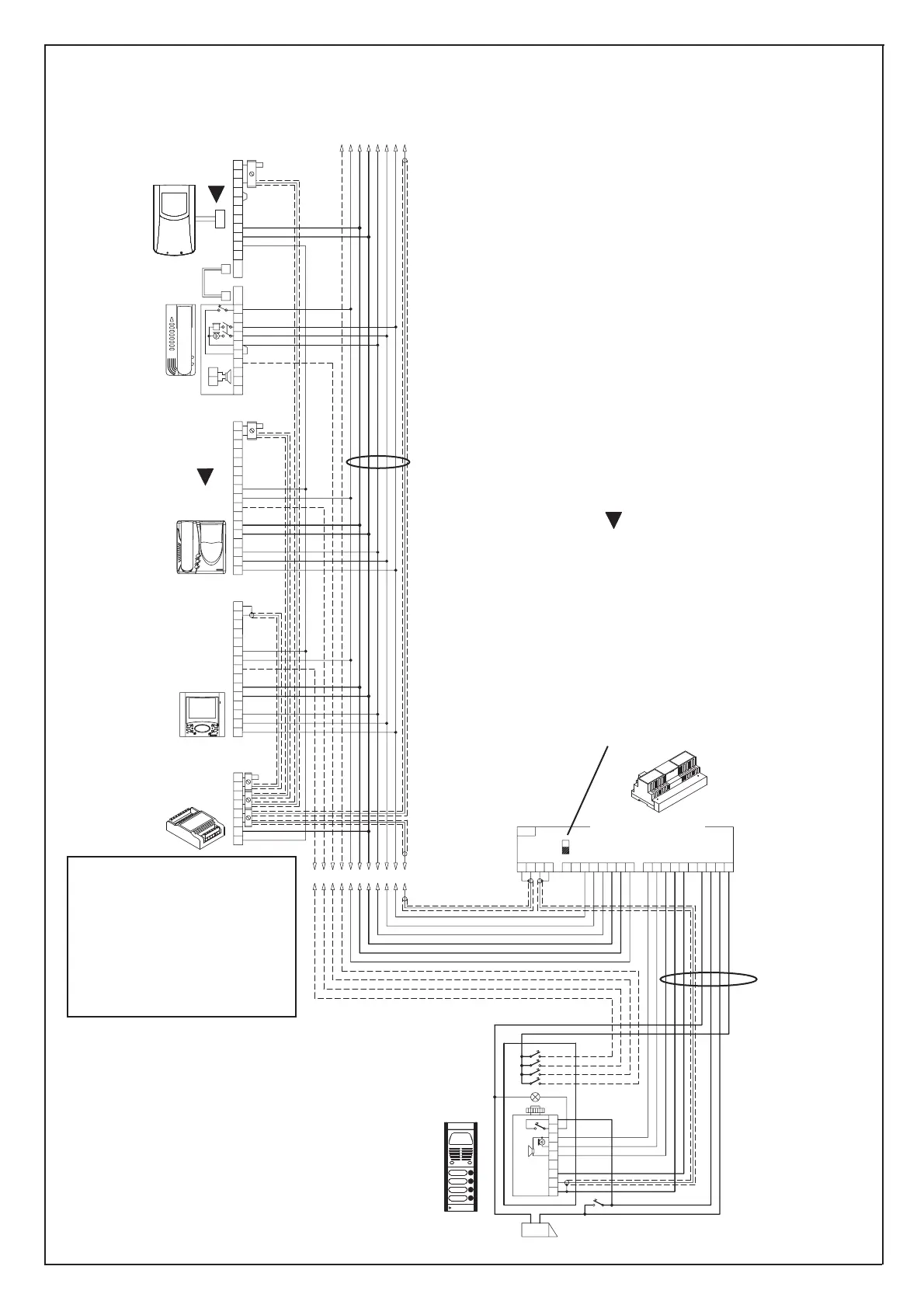

"SOUND SYSTEM" SINGLE AND MULTIPLE RESIDENCE VIDEO DOOR ENTRY SYSTEM WITH POWER SUPPLY
TYPE 6680 WITHOUT CONVERSATION PRIVACY
AND VIDEO DISTRIBUTOR ART. 5556/004 OR 6554
CABLE
Art. 61/001
Art. 61/003
CABLE
Art. 61/001
Art. 61/003
*
*
*
*
*
COLOUR
MONITOR
Art. 6600
All video outputs V1-V2-V3-V4
must connected with the 75 Ohm
resistors (supplied) which must be
connected to the not used output
terminals or to the monitor V2-M
terminals. The last distributor
must be loaded with the 75 Ohm
resistor connected to the free "V"
terminal.
VIDEO DISTRIBUTOR
Art. 5556/004 O 6554
MONITOR CABLE RISER
N.B.
In the event of buzzing on the
audio line, move the switching
module "A-B" located under the
cover to position "A".
Connect 75 Ohm resistor (sup-
plied) to the last monitor, between
terminals V2-M.
*
N.B.
The monitors have a microswitch
on the back, set it to “without con-
versation privacy”.
N.B.
The monitors have a microswitch
on the back (or underneath) for
connection "with coaxial/without
coaxial"; set the microswitch to
"coaxial".
* *
* *
*
The “CONVERSATION PRI-
VACY” function is normally deac-
tivated. To activate or deactivate
the function see conversation pri-
vacy programming.
A- Video entrance panel
GALILEO SECURITY, GALILEO, 8100
PATAVIUM and letter box 2550/301-302 series
B- Additional door lock button
C- 12V~ electric lock
D- Camera with speech unit
type 559, 559A, 559B, 559G, 558, 570,
570G, 571, 559C and 570C+930A
Note: For the connection of camera type 559A
and 559B see variation 17
L1- entrance panel illumination bulb
(3x24V 3W max.)
10x24V 3W with type M832
16X24V 3W with type 832/030
To Next Page
