Elvox 6901/D User Manual

GB
15

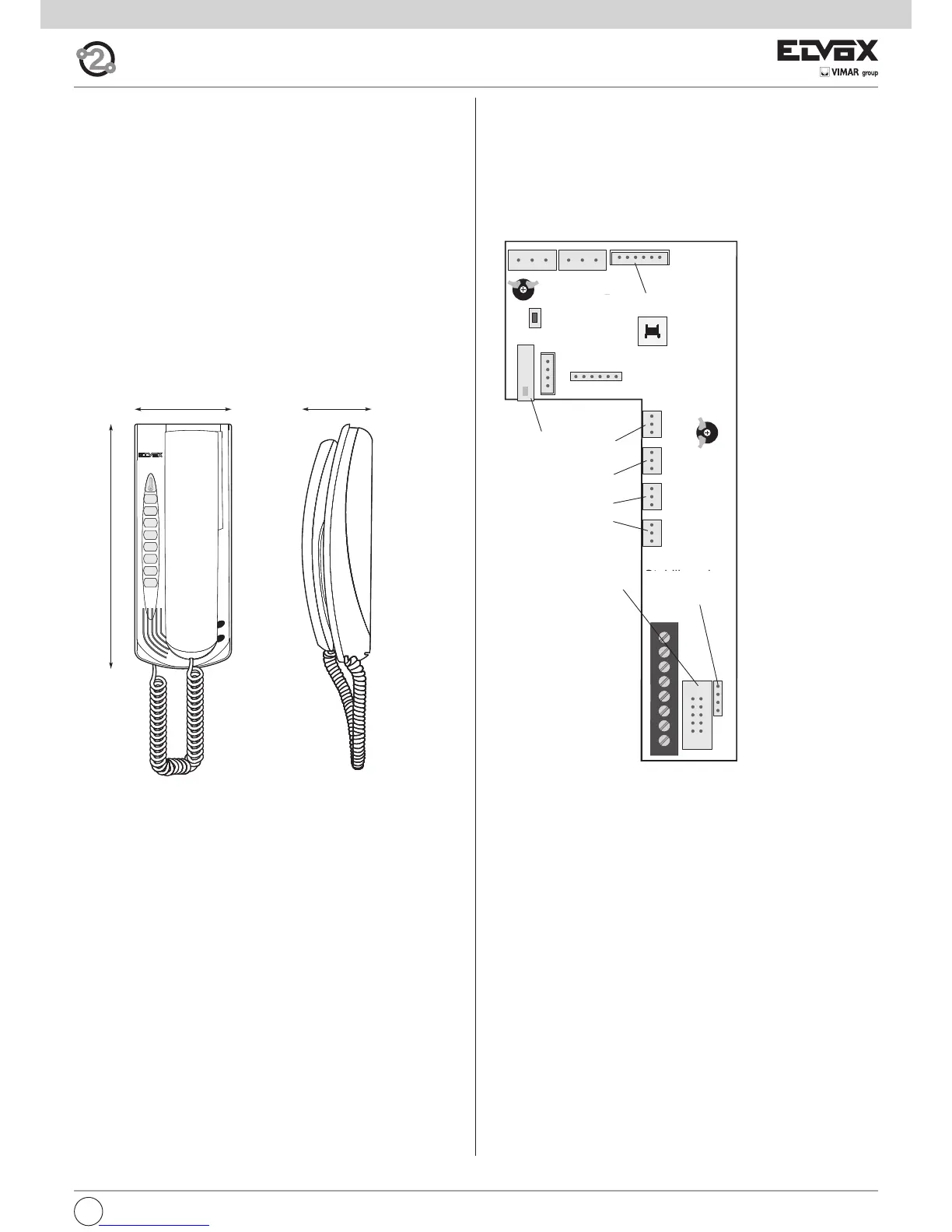

Fig. 3.5
226 mm
65 mm
89 mm
Interphone series Petrarca
type 6209
Description
Type 6209 is an interphone in the Petrarca series for ELVOX 2-WIRE audio
and video door entry systems. It is supplied as standard with 3 pushbut-
tons, one for lock release, one for self-start of the interphone in the system
even when not called, and one for the auxiliary “stair light” service. The in-
terphone can be fitted with an additional 3 pairs of pushbutton types 692P
(692P/M or 692P/R), for auxiliary services or intercommunicating calls, and
the accessory type 6153/682 for: call volume adjustment, call signal mute,
call denied luminous indicators, signal to indicate unanswered calls, signal
to indicate services not available and luminous signal for gate/door open.
The interphone can be installed as a wall-mounted version or desktop
using the conversion kit type 6140 or 6A40, or in combination with moni-
tors in the Petrarca series type 6029 (b/w monitor) or type 6029/C (colour
monitor) by means of wall bracket type 6145 or desktop conversion kit
type 6142 or 6A42.
Connection and connector terminal board
1, 2) BUS line.
4, 6P) Connection for door call pushbutton.
5, 6S) Connection of additional door ringtone
-, +)
Additional power supply for monitor with power supply type 6923.
VARIAT.) Connection for module type 6153/682.
VIDEO) Connection for monitor type 6029 or 6029/C.
T1) 1st pair of pushbuttons type 692P.
T2) 2nd pair of pushbuttons type 692P.
T3) 3rd pair of pushbuttons type 692P.
T4) 4th pair of pushbuttons type 692P.
Controls
The call volume can be adjusted by moving the loudspeaker wire from
connector A+ (high) to A- (low); otherwise use accessory type 6153/682,
leaving the loudspeaker wire connected to connector A-.
Fig. 3.4
BL BIRO A+ CAA- VARI AT.
SERR.
SERIALE
PRG.
T1
T2
T3
T4
VIDEO
1
1
2
4
5
6S
6P
-
+
T1
T2
T3
T4
Per art. 6153/682
RESET
SERRATURA
Per art. 6009 o
6009/C
Stabilizzazione
segnale video
TR1
TR2
Video signal
stabiliser
TR1, TR2) Do not touch, trimmers already set by the firm.
For
Lock
For Art. 6029 o
Art. 6029/C
INSTALLATION
Wall-mounted installations of the interphone do not require additional ac-
cessories.
However a vertical 3-module box may be used to facilitate fixture and cable
routing. For desktop installations and combinations with monitors, refer to
the respective instructions of the conversion kit or monitor.
