Monitor series Giotto
type 6329, 6329/C
Description
Type 6329 and 6329/C are interphones in the Giotto series respectively
with B/W (6329) and colour screen (6329/C) for ELVOX 2-WIRE video door
entry systems. They are supplied as standard with 3 pushbuttons, one for
lock release, one for self-start of the monitor in the system even when not
called, and one for the auxiliary “stair light” service. Supplied with call vo-
lume adjustment on 3 levels and call mute. The luminous indicators of: call
signal mute, unanswered calls, services not available and gate/door open,
are signalled by means of two LEDs (red and green) present on the moni-
tor.
The monitor can be installed as a wall-mounted version, by means of the
bracket (R684) supplied with the monitor, or desktop version by means of
the conversion kit type 661A or 661F.

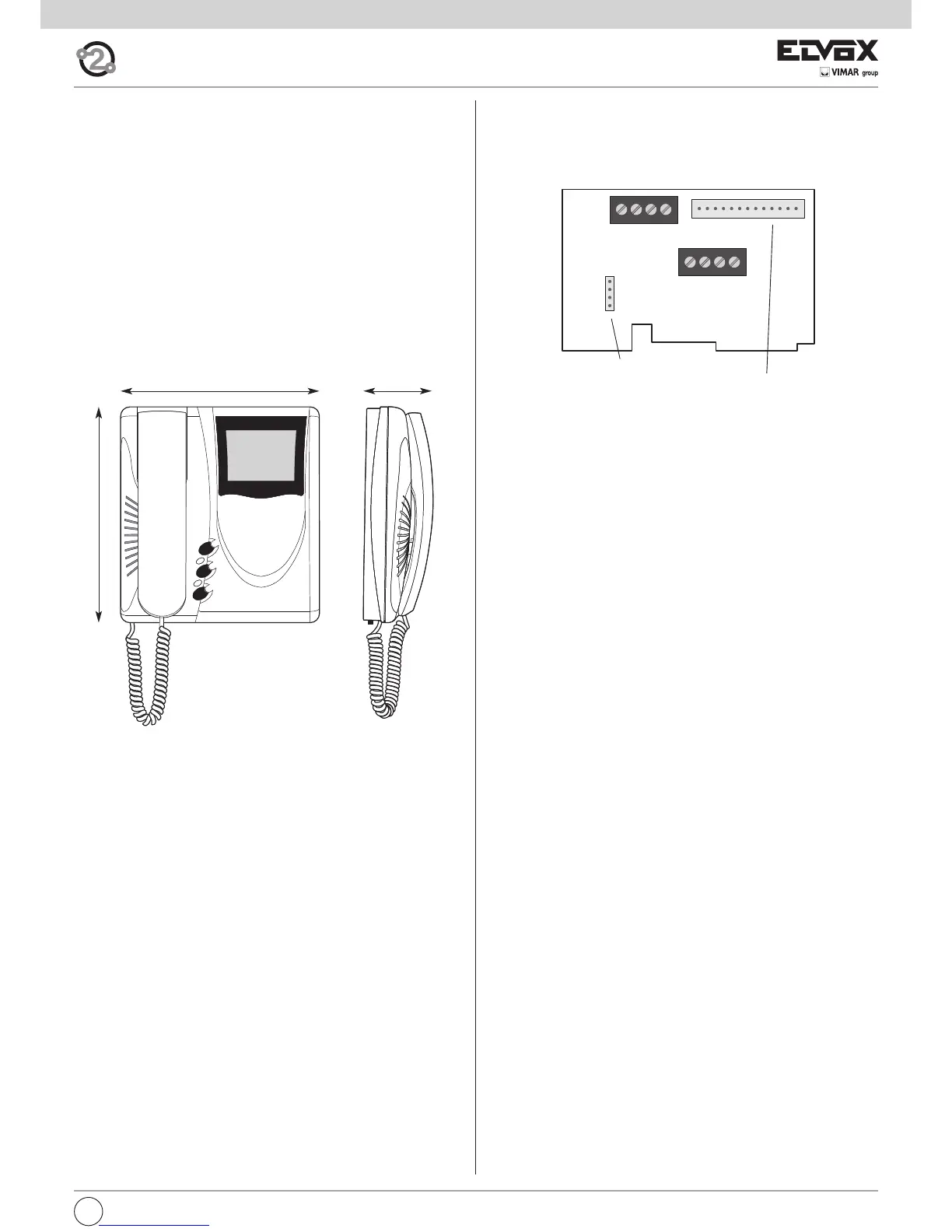

220 mm
71 mm204 mm
Fig. 4.1
Monitor technical specifications
- Wall-mounted monitor in ABS
- Backing plate and plugs for wall-mounted fixture or 3-module box.
- 3.5" flat screen for 6329 and 3.5" flat screen for 6329/C.
- Electronic circuit on interchangeable cards.
- Standard video signal CCIR 625 lines 50 squares for 6329 and PAL for
6329/C.
- Video pass band 4 MHz
- Operating temperature from 0° to +40° C.
- Electronic ringtone.
- Input for door calls with different ringtone from panel calls.
- Output for additional ringtone type 860A.
- Supply of data from bus.
- Input for additional power supply (type 6923) if the system is configured
to enable simultaneous activation of more than two monitors.
Connection and connector terminal board
3, 4) Additional ringtone connection
1, 2) BUS line.
12 +, 13 -) Additional power supply for monitor with power supply type 6923.
V3, M) Connection for door call pushbutton.
CN1) Connection for monitor.
Fig. 4.2
ELVOX
CS2350
271103
4 3 2 1
A S
+
BUS
12 13 V3 M
EXT. 24V
F.P.
+ -
CN2
C
B
A
CN1
Stabilizzazione
segnale video
Per monitor
Video signal
stabilization
For monitor
