Elvox 6901/D - 6600 Series Interphones (Types 6601;660 C;6701); 6600 Series Interphones (Types 6611;661 C;6711)

GB
35
Types 6601/AU, 660C/AU, 6701/AU are open voice interphone series
6600 to be used in Due Fili ELVOX (two wire Elvox) audio/video entrance
panel systems.
Type .../F versions have the same features and are programmed and in-
stalled in the same way.
They are equipped as standard with 8 push-buttons for the following fun-
ctions: door lock release, self-start of interphone in the system even when
it has not been called, conversation, stair light, internal voice line volume
control, ringtone volume control, brightness control and ringtone type set-
ting. Two LEDs (red and green) on the interphone serve to indicate the fol-
lowing states: call signal mute, unanswered calls, services not available
and gate/door open.
- Flush-mounting of the interphone requires the use of flush-mounted
back box type 6149 or the brackets type. R660 (for plasterboard).
- The surface wall-mounted installation for the interphone (6701) requi-
res the brackets for the wall-mounting supplied as standard.

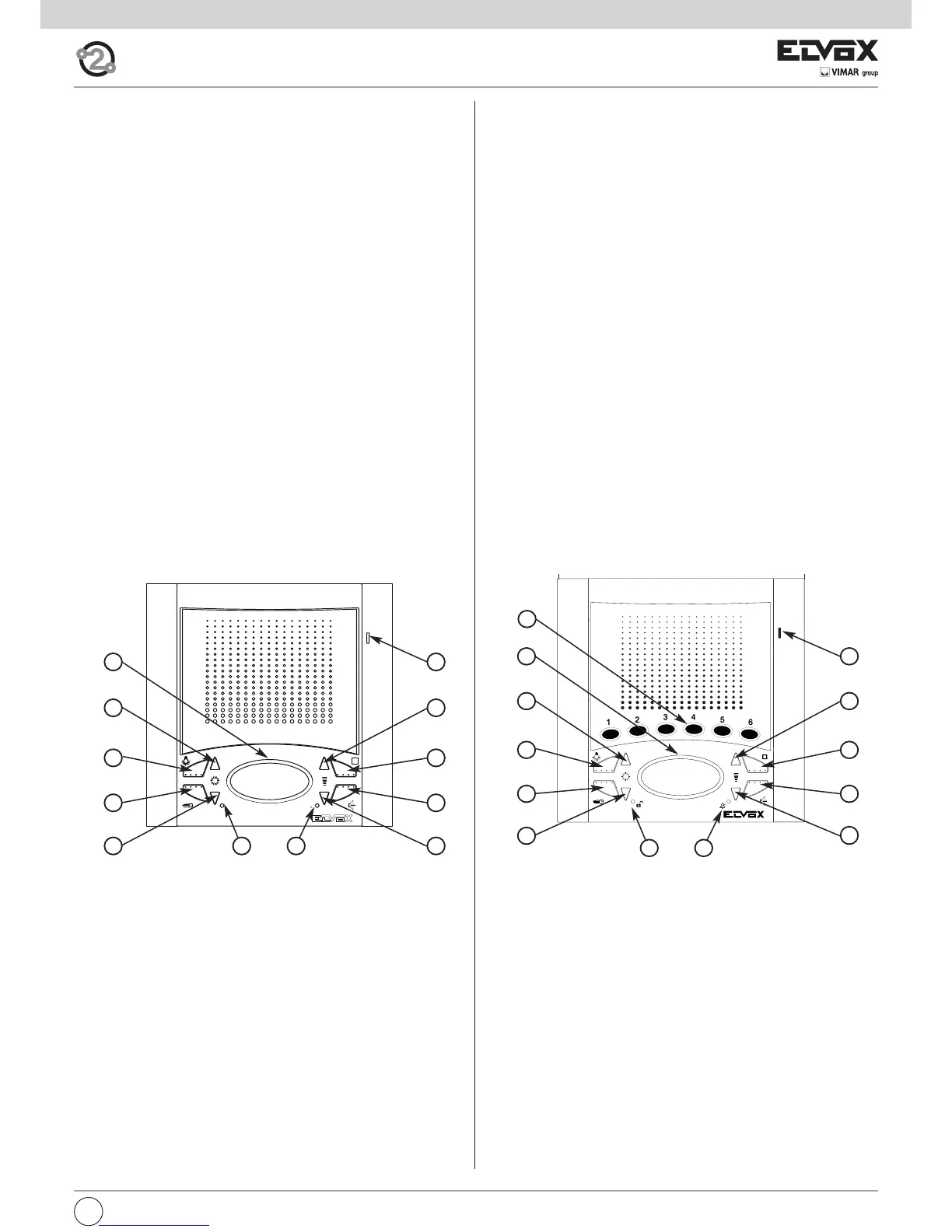

Fig. 8.1
Fig. 8.2
Interphones series 6600
type 6601/AU, (6601/AUF) flush-mounted version
type 660C/AU, (660C/AUF) table version
type 6701/AU, (6701/AUF) surface wall-mounting version
Front
type 6601/AU
type 660C/AU
type 6701/AU
Front
type 6611/AU
type 661C/AU
type 6711/AU
Interphones series 6600
type 6611/AU, (6611/AUF) flush-mounted version
type 661C/AU, (661C/AUF) table version
type 6711/AU, (6711/AUF) surface wall-mounting version
Types 6611/AU, 661C/AU, 6711/AU are a intercommunicating 6600 series
open-voice interphone for Due Fili ELVOX door entry systems.
Type .../F versions have the same features and are programmed and instal-
led in the same way.
The interphones are supplied as standard with 6 push-buttons for auxi-
liary functions or intercommuncating calls, 8 push-buttons for the follo-
wing functions: door lock release, interphone self-start in the system even
when it has not been called, conversation, stair light, internal voice line
volume control, ringtone volume control, and two for the ringtone type.
Two LEDs (red and green) on the interphone serve to indicate the follo-
wing states: call signal mute, unanswered calls, services not available and
gate/door open.
- Flush-mounting of the interphone (type 6611) requires the use of flush-
mounted back box type 6149.
- The installation of the surface wall-mounted monitor (type 6711) requi-
res the bracket for the wall-mounting supplied as standard.
B
E
H
I
D
E
D
F
G
C
L M
RESET
B
E
H
I
D
E
D
F
G
C
L M
N
