Tab series interphone for Due Fili Elvox (Two-wire sy-
stems)
Art. 7509, 7509/D*

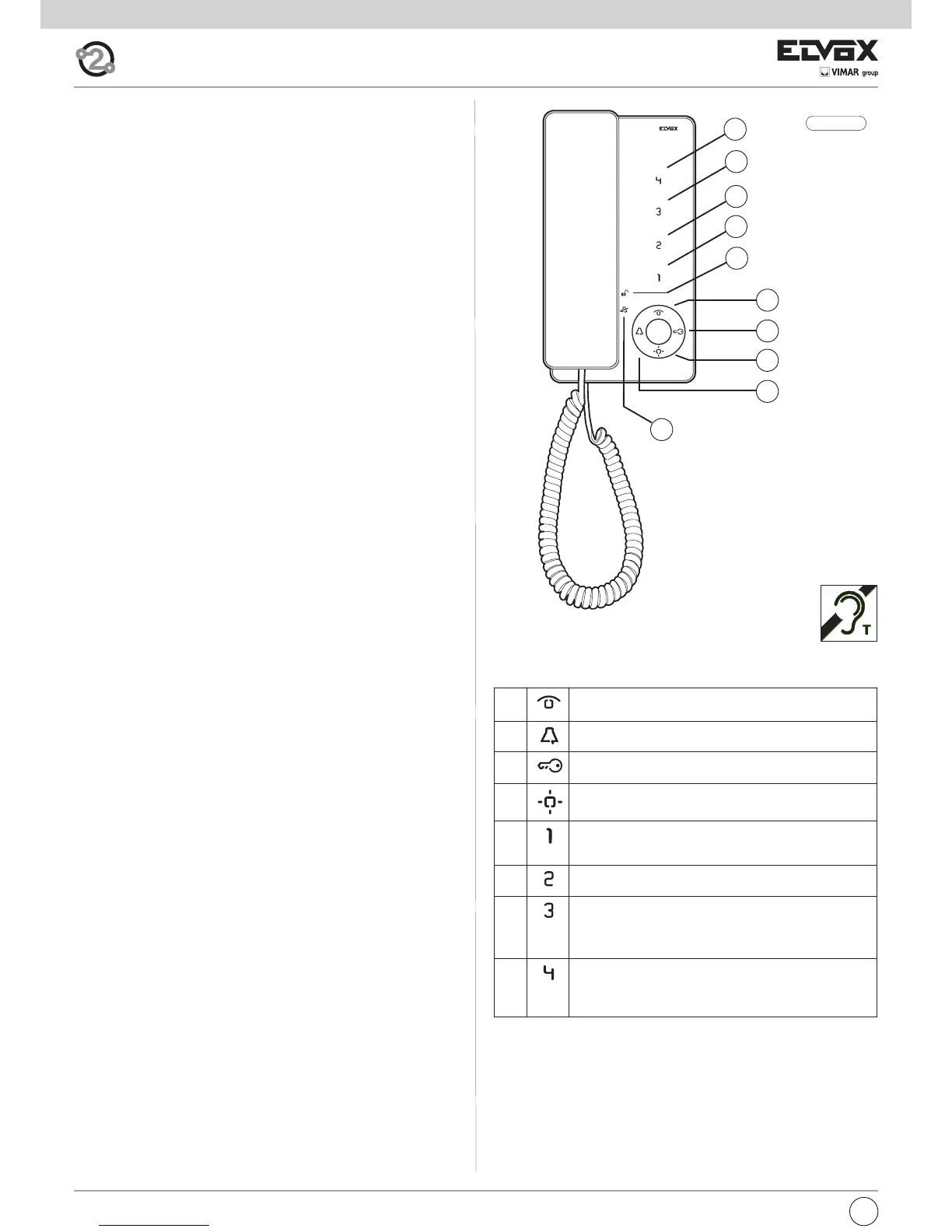

Fig. 2.1
A
C
D
B
E4
E3
E2
E1
G
F
GB
10
*
Description
Interphone made of thermoplastic material with handset. Equipped with
four buttons for the main video door entry functions: door lock release,
self-start, auxiliary services (stair light), ringtone muting and 4 programma-
ble supplementary keys that can execute up to 4 auxiliary functions or in-
tercommunicating calls.
The following settings can be made: ringtone volume, ringtone muting
when “User Away” function is activated and ringtone type selection. Option
of setting different ringtones for calls made from different points, e.g.: out-
door entrance panel, door call, intercommunicating call.
LED signalling of “door/gate open” and “Unanswered calls” (up to 4 calls
with interphone in ringtone muted state).
For use in Elvox Two-Wire systems with power supply 6922.
Article 6901/D has a hearing aid function.
Before commencing programming, read the instructions carefully to
get a clear idea of the product’s characteristics, functions and featu-
res.
Technical characteristics
• Surface-mounted interphone made of ABS with mirror gloss finish on
front panel.
• Designed for external wall mounting or fitting to a box (can be mounted
directly on the wall using wall plugs or to a Vimar V71303 type unified 3-
module rectangular flush-mount back box or a 60 or 70 mm round flush-
mount back box).
• Touch-sensitive keys.
• Power supply from Two-Wire Bus
• Input current:
- on standby: 7mA
- maximum conversation current: 60mA
- peak current limited to call time: 100mA
• Operating temperature: 0° ÷ 40°C
• Electronic chime: different ringtones for panel call, intercom call and door
call.
• 10 different ringtones can be selected.
• Output for additional chime 860A or relay 0170/101.
• Input for door call.
• Interphone 7509 dimensions: 105x180x35 mm
A Self-start: for self-start/auto-activation of interphone (to
Master entrance panel by default).
B Ringtone muting: Mutes ringtone during call.
C Door lock: Lock opening command (programming can be
adjusted using the programmer).
D Auxiliary 1 (Stair light): For auxiliary service (actuator 1 of
relay 69RH or 69PH activated by default).
E1 Button 1: Programmable button to activate auxiliary ser-
vice or intercommunicating call (actuator 2 of relay 69RH or
69PH activated by default).
E2 Button 2: Programmable button to activate auxiliary ser-
vice or intercommunicating call.
E3 Button 3: Programmable button to activate auxiliary ser-
vice or intercommunicating call (entrance panel function F1
activated by default, the last entrance panel to make a call).
E4 Button 4: Programmable button to activate auxiliary ser-
vice or intercommunicating call (entrance panel function F2
activated by default, the last entrance panel to make a call).
Buttons
