Button programming procedure for intercommunicating calls
To program the buttons, proceed as follows:
1) Press the “talk/listen” button or lift the handset (depending on model
installed) for the interphone/monitor TO BE CALLED.
2) Lift the handset to be programmed (the caller handset).
3) Press buttons B and A on the monitor to be programmed (caller) simul-
taneously and hold them down until LED B (ringtone mute) begins fla-
shing.
4) Release buttons B and A.
5) Press and hold down the button to be programmed (e.g. E1, E2, E3, E4).
6) Wait until the monitor handset emits a continuous tone.
7) Release the button to be programmed on the caller monitor.
8) Press a button (lock/F1/F2) on the interphone/monitor to be called.
9) An audible signal in the handset of the (caller) monitor being program-
med confirms that the procedure has been completed correctly.
Procedure for restoring default data for each individual button
(E1, E2, E3, E4)
1) Lift the handset.
2) Press buttons B and A simultaneously and hold them down until LED B
(ringtone mute) begins flashing.
3) Release buttons B and A.
4) Press and hold down the button you want to return to default program-
ming (not valid for Self-start and Lock buttons).
5) Wait until the monitor handset emits an audible signal.
6) Release the button.
7) Press the button again to confirm. The monitor handset will again emit
a signal. The button has now been restored to its default value.
Important: This procedure can be used to manually reprogram all buttons
with the exception of the lock and self-start buttons, for which programmer
950C or SaveProg software is required.
Programming the self-activation/self-start button to a speci-
fic pane
l
(different from the self-start function enabled using button “A”)
1) Lift the handset.
2) Press buttons B and A simultaneously and hold them down until LED B
(ringtone mute) begins flashing.
3) Release buttons B and A.
4) Press and hold down the button to be programmed (D, E1, E2, E3, E4).
5) Wait until the monitor handset emits a tone.
6) Release the button.
7) Call the monitor from the panel you want to perform direct self-start
from:
- On push-button entrance panels, press the button corresponding to
the monitor on which the button is being saved.
- On alphanumeric panels, enter the ID corresponding to the monitor
on which the button is being saved and press the bell button on the
panel to confirm.
8) At the end of the procedure described above, the monitor handset emits
an audible signal to indicate that the procedure has been completed
correctly.
Default data restore procedure
1) Lift the handset.
2) Press buttons B and A simultaneously and hold them down until LED B
(ringtone mute) begins flashing.
3) Release buttons B and A.
4) Press and hold down button A again.
5) While the monitor handset is emitting an audible signal, release button
A and press button C briefly.
The monitor programming has now been deleted. To check that program-
ming has been deleted, press button C; the monitor handset should emit
an audible signal.
Programming with SAVEPROG software
SaveProg is a PC software package supplied together with interfaces 692I
and 692I/U. These interfaces allow the PC to be connected to an entrance
panel or other suitable device, type 692I via an RS232 port and type 692I/U
via a USB connection.

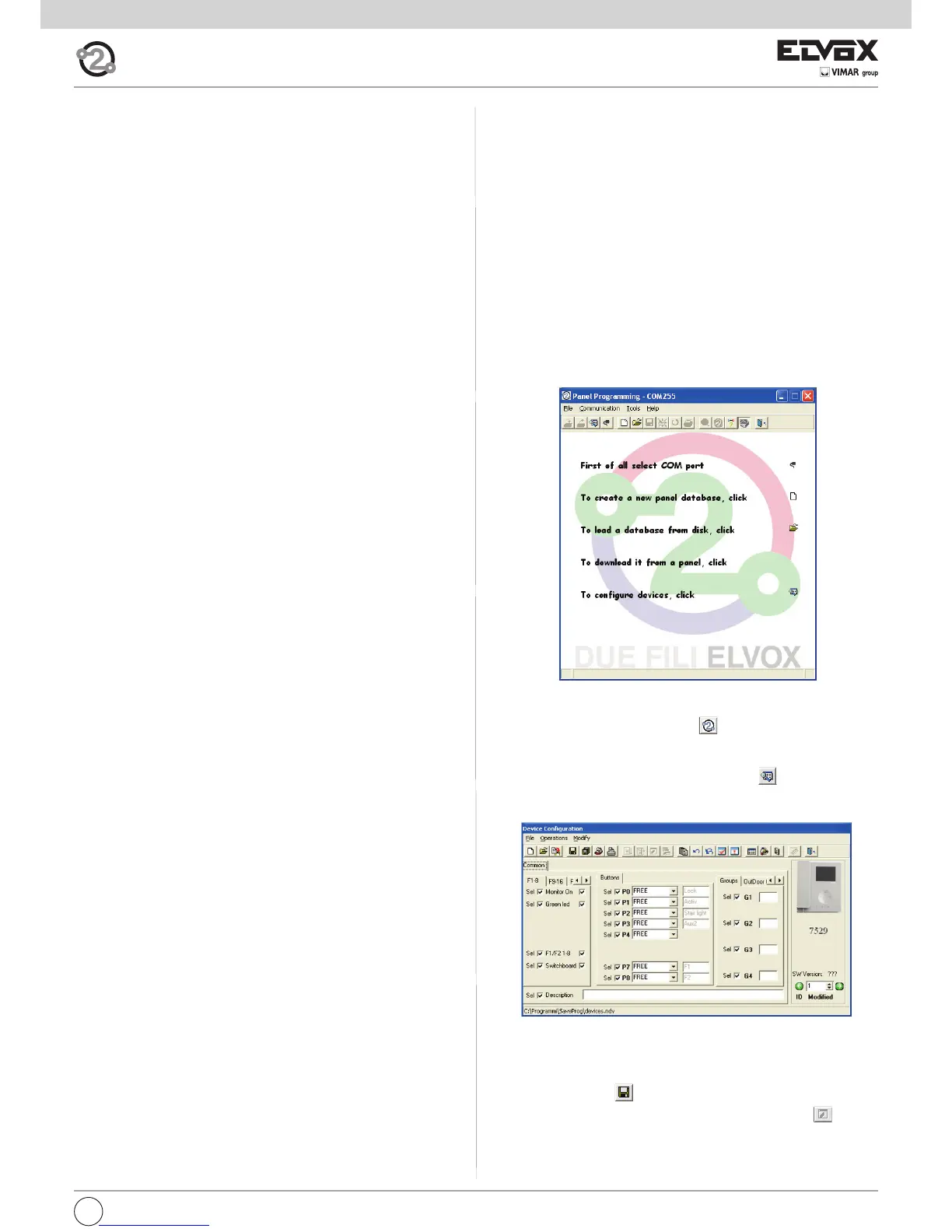

After connecting the interface and installing SaveProg, on opening the pro-
gram the following window appears.
It is now possible to proceed with programming in two different ways:
1) with virtual 950C: clicking on icon opens an interactive image of
t950C programmer, which allows programming to be performed by si-
mulating use of the 950C programmer.
2) with the SaveProg windows: clicking on icon opens the “Device
configuration” window.
It is now possible to change button programming, create groups, select
ringtone types, adjust ringtone volume and enable or disable functions.
On completing the desired settings:
- save by clicking on .
- transfer the program to the device by clicking on the icon .
The device has now been reprogrammed.
Programming and configuring with programmer
type 950C
Interphone/monitor programming can be carried out using programmer
type 950C. The programmer must be connected to an entrance panel and
device configuration mode started. This programmer can be used to
change button programming, create groups, select ringtone types, adjust
the ringtone volume and enable or disable functions. For use of the pro-
grammer, please refer to the instructions.
