11
K40912 - K40932

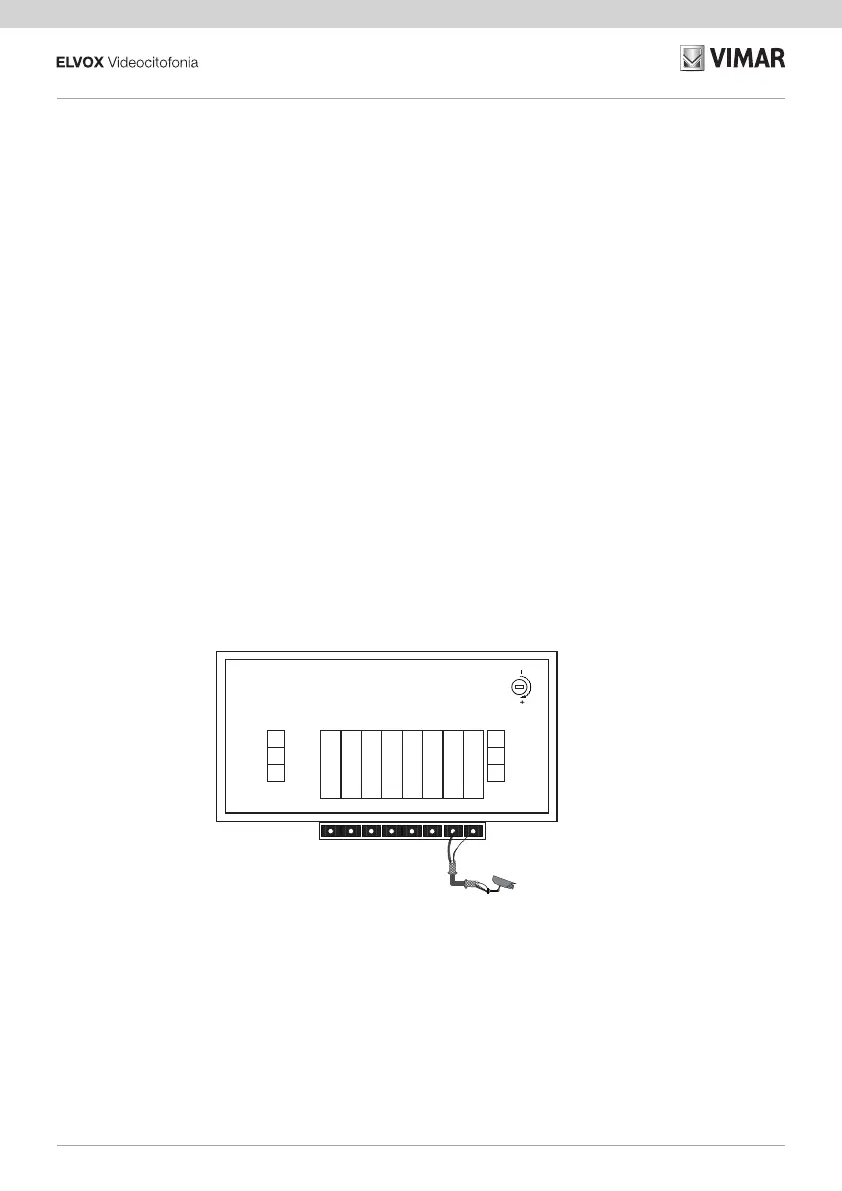

Telecamera TVCC (optio-
nal): Installazione
Ai terminali CCTV e GND del posto
esterno è possibile collegare teleca-
mera Vimar 46CAM.136B.8.
Lunghezza massima: 100 m con Cavo
SYV75-3 / RG59.
BUS1+
BUS1-
COM
NO/NC
LOCK
GND
CCTV GND
1
2
3
Addr1
Addr0
COM
JUMPER
SPECIFICATION
MODEL:OUTDOOR STATION
BUS1+
BUS1-
GND
COM
NO/NC
LOCK
GND
CCTV
SPEAKER
1
2
3
NO
NC
NO/NC
JUMPER
Installation d'une caméra
CCTV (en option)
Possibilité de brancher la caméra Vi-
mar 46CAM.136B.8 aux cosses CCTV
et GND du poste extérieur.
Longueur maximale : 100 m avec
câble SYV75-3 / RG59
Montaje de una cámara
CCTV (opcional)
A los terminales CCTV y GND del
aparato externo se puede conectar la
cámara Vimar 46CAM.136B.8.
Longitud máxima: 100 m con cable
SYV75-3 / RG59
Instalação de uma câmara
CCTV (opcional)
Aos terminais CCTV e GND do posto
externo é possível ligar a câmara
Vimar 46CAM.136B.8.
Comprimento máximo: 100 m com
Cabo SYV75-3 / RG59
Installation einer Video-
überwachungskamera
(optional)
An die Klemmen CCTV und GND der
Außenstelle kann die Videokamera
Vimar 46CAM.136B.8 angeschlossen
werden.
Max. Länge: 100 m mit Kabel SYV75-
3 / RG59
Εγκατάσταση κάμερας
TVCC (προαιρετική)
ΣτουςακροδέκτεςCCTVκαιGNDτου
εξωτερικούσταθμούμπορείνασυνδε-
θείκάμεραVimar46CAM.136B.8.
Μέγιστομήκος:100mμεκαλώδιο
SYV75-3 / RG59
Installation of a CCTV cam-
era (optional)
The Vimar 46CAM.136B.8 camera
can be connected to the CCTV and
GND terminals of the speech unit.
Maximum length: 100 m with SYV75-3
/ RG59 cable
