SW12.T

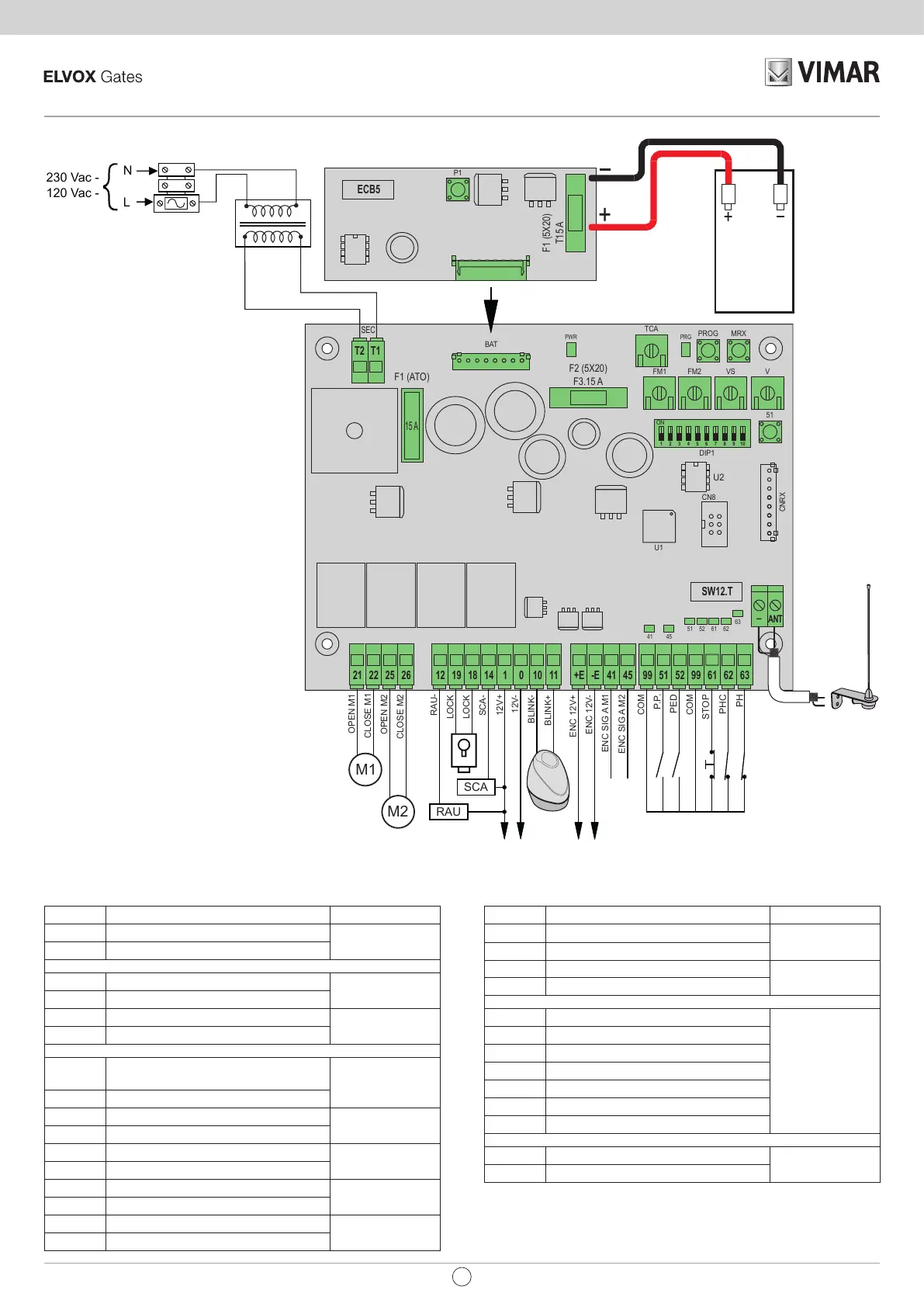

Terminal block functions
Terminal Description Rated data
T1 Transformer secondary connection
12 Vac
T2 Transformer secondary connection
21 Opening motor 1
12 Vdc 80 W
22 Closing motor 1
25 Opening motor 2
12 Vdc 80 W
26 Closing motor 2
12
Auxiliary radio/courtesy light negative
output
12 Vdc 120 mA
1 Accessories positive
19 Electrical lock output
12 Vac 15 VA
18 Electrical lock output
14 Gate open warning light negative output
12 Vdc 120 mA
1 Accessories positive
1 Accessories positive
12 Vdc 300 mA
0 Accessories negative
10 Flashing light negative
12 Vdc 10 W max
11 Flashing light positive
Terminal Description Rated data
+E Encoder power supply positive
12 Vdc
-E Encoder power supply negative
41 Motor 1 encoder signal
45 Motor 2 encoder signal
99 Common inputs
51 Step by step (N.O.)
52 Pedestrian (N.O.)
99 Common inputs
61 Stop (N.C.)
62 Photocell when closing (N.C.)
63 Photocell (N.C.)
- Aerial earth
ANT Aerial signal
EN
C
BAT
U
2
N8
F1 (ATO)
S
E
C
DIP1
FM1
FM2
VS
V
PWR
51
F2 (5X20)
