EM TEST UCS 500 Series
Operating Manual V 3.05 13 / 57

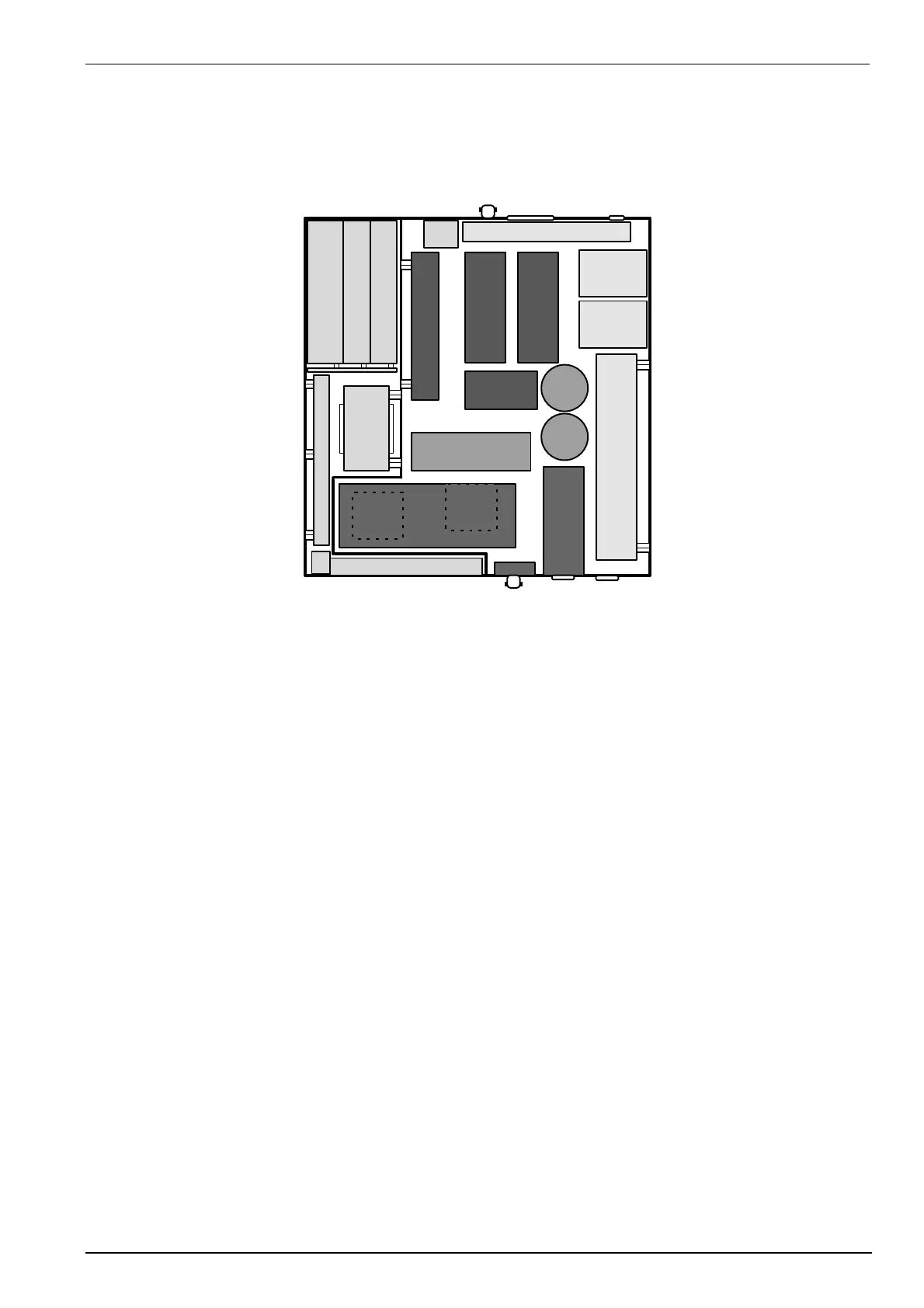

5. Test Equipment UCS 500 M
The simulator UCS 500M is separated in differents main parts. Each functional part is sep separately-held
mounted. The control unit is screened to all other parts.
1
2
3
7
5
6
Front panel
Back panel
20
4
16
16
19
19
6
18
9
10
11
13
15
17
14
14
821 22
23
21
12
Control unit
1 Power supply board
2 Interface board
3 Controller board
4 Power supply transformer
5 Filter board / connecting board
6 Keyboard / LCD- display
7 General power supply input, filter
8 Ventilation
High voltage unit
9 High voltage power supply
10 Storage capacitor
11 HV- board
12 ESD controller board
13 Surge switch-board
14 Coupling capacitors for surge mode
15 High voltage switch for burst mode
16 Power switches for voltage dip mode PF1, PF2
17 Current sensor
Coupling/decoupling unit
18 Filter board
19 Decoupling chokes
20 Coupling/decoupling network
21 Measuring and control output
22 Input for the power mains supply of the EUT
23 Output for the EUT supply
