EM TEST UCS 500Mx - V4780 Technical Data & Setup; V4780 Technical Specifications; V4780 Setup and Connection Diagrams

EM TEST UCS 500 Series
Operating Manual V 3.05 46 / 57
11.5.1.4. Technical Data V4780
Design
Tapped autotransformer with 40% , 70%, 80%, 100 % output voltage
Input:
Voltage Uin: max. 250V
Frequency 50/60Hz
Remote control 0.10V dc ( V4780 S2)
Output:
Voltage tap [ % Unom ] 120% ( V4780 S1)
100%
80%
70%
40%
V4780, S1, S2 V4780 S3
Current Imax. 16A 32A
Power 4.1 kVA 8.2 kVA
Fuse 2x 16A 2x 35A
Weights and measures
Dimensions 95 x 170 x 190 mm ( H x B x T ) 200 x 170 x 190 mm ( H x B x T )
Weights ca. 7 kg ca. 14 kg
Temp Ambiance
10°C - 35°C 10°C - 35°C
11.5.1.5. Setup V4780
The output voltages are available at
safety banana plugs. For safety
reasons the related safety cables
shall be used.
The power supply input is realized
with a power connector for L, N and
PE. The voltage shall be 100% of
the nominal voltage Vn.Die

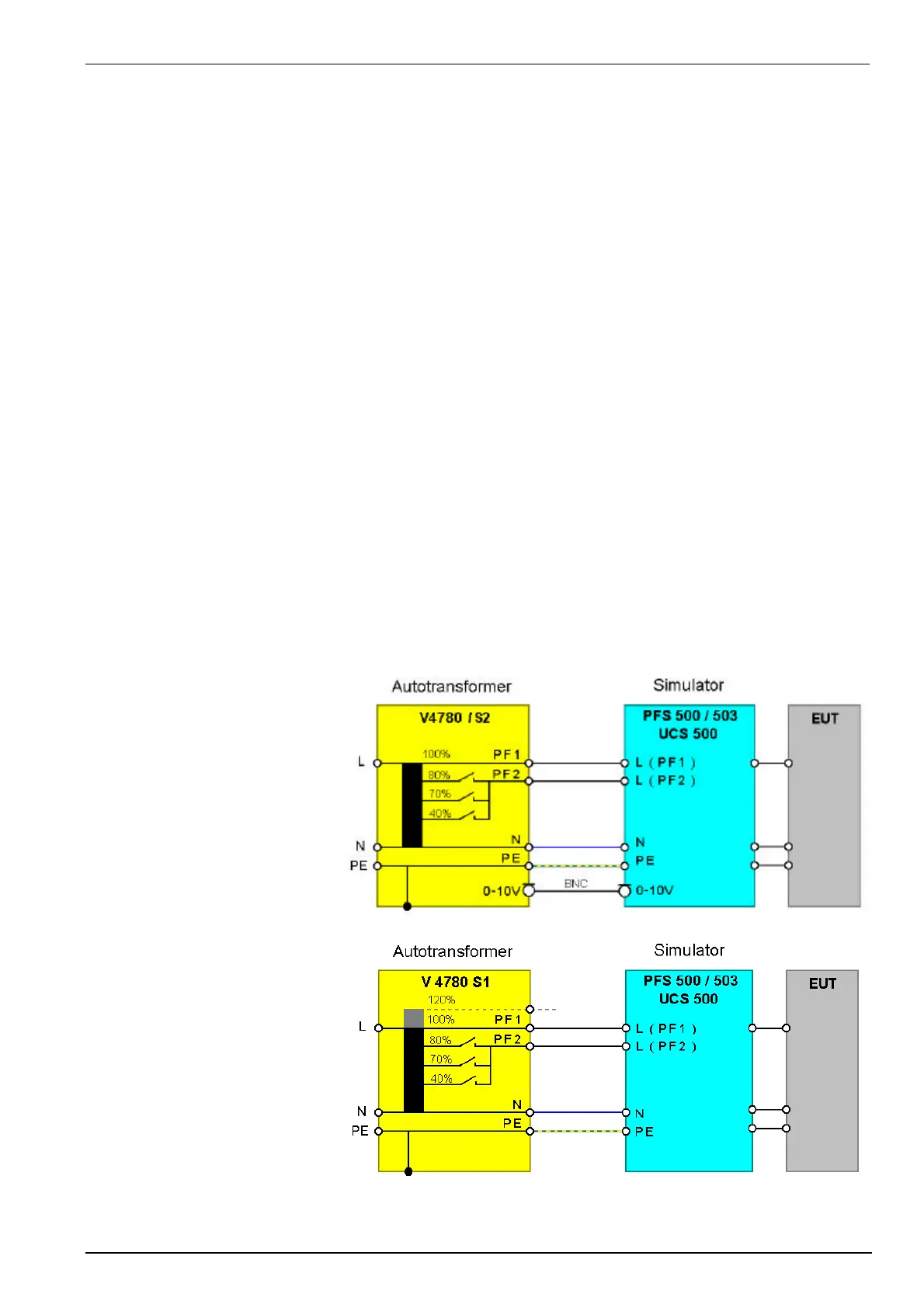

Connection V 4780 / V4780 S2
Connection V4780 S1
