Get to know your compressor

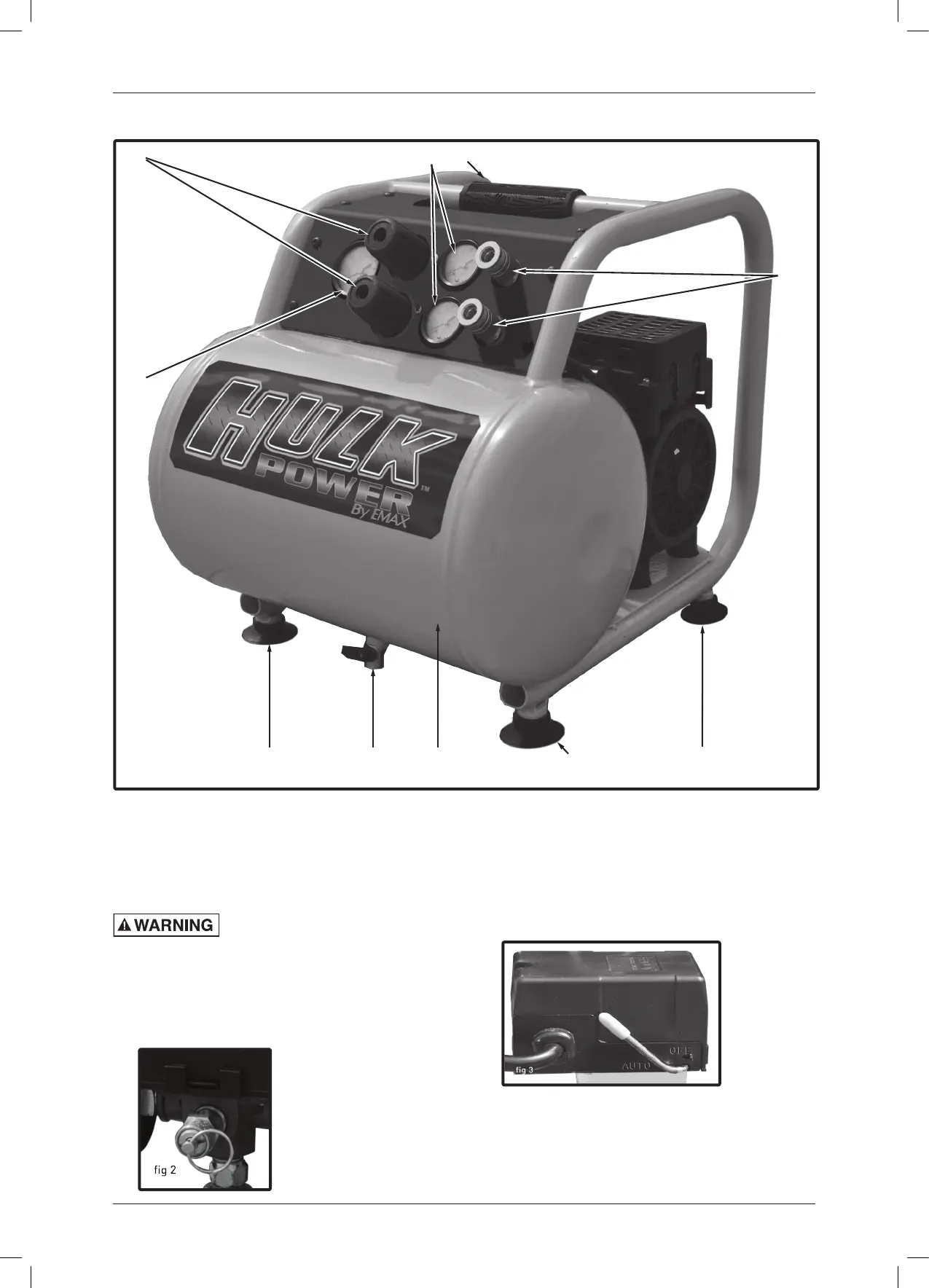

Please refer to g 1.
1. TANK DRAIN VALVE
(located on bottom of tank) - The tank drain
valve can be opened to allow moisture and
compressed air to be released from the air tank.
The tank drain valve should
always be opened slowly to
avoid damage to equipment and possible injury.
2. TANK -
ve gallon (18.9 liters) tank
3. RUBBER FOOT
Reduces compressor vibration and movment.
4. SAFETY VALVE -
The safety valve automatically relieves
pressure from the air tank
in the event of excessive
pressure build up. Safety
Valve is preset at factory.
Do not attempt to make
any adjustments to the
safety valve. Periodically
pull the ring on the safety
valve end to check that it is working properly.
5. RESERVOIR AIR PRESSURE GAUGE -
Indicates pressure of compressed air built up in
the tank.
6. PRESSURE SWITCH -
Controlled by the red tipped power switch lever
which turns the air compressor on and o.
When switch
lever is pulled
up,
compressor
is turned o.
When lever is
moved down
to the "Auto"
position, the
pressure
switch is engaged and will start the compressor
pump automatically when tank pressure is
below the factory-set minimum. The pressure
switch continues to monitor the pressure and
turns the pump o when the pressure reaches
the factory-set maximum.
