Position Pin Location Quantity Size Part Number
28 & 29 SWING CYLINDER PIVOT L & R 2 ea. Side 1"X 1 1/2" B13311
30 SWING CYLINDER SHAFT END 2 1" X 2" B13312
25 BOOM CYL. BUTT END 1 1" X 2 1/2" B13313
24 BOOM CYL. SHAFT END 2 1"X 1 3/4" B13314
26 BOOM PIVOT 2 1 1/2" X 2" B13315
15 DIPPER CYL. SHAFT END 2 1" X 1 3/4" B13314
19 DIPPER CYL. BUTT END 2 1" X 1 3/4" B13314
14 DIPPER/BOOM PIVOT 2 1 1/2" X 2" B13315
7 BUCKET CYL. SHAFT END 1 1" X 2 1/2" B13313
13 BUCKET CYL. BUTT END 2 1"X 1 3/4" B13314
8 DIPPER/LINKAGE PIVOT 2 1"X 1 3/4" B13314
4 BUCKET/DIPPER PIVOT 2 1"X 1 3/4" B13314
3 BUCKET/LINKAGE PIVOT 2 1"X 1 3/4" B13314
7 LINKAGE/CYLINDER PIVOT 2 1" X 1" B13316
Replaceable Bushing Guide- All Models
25

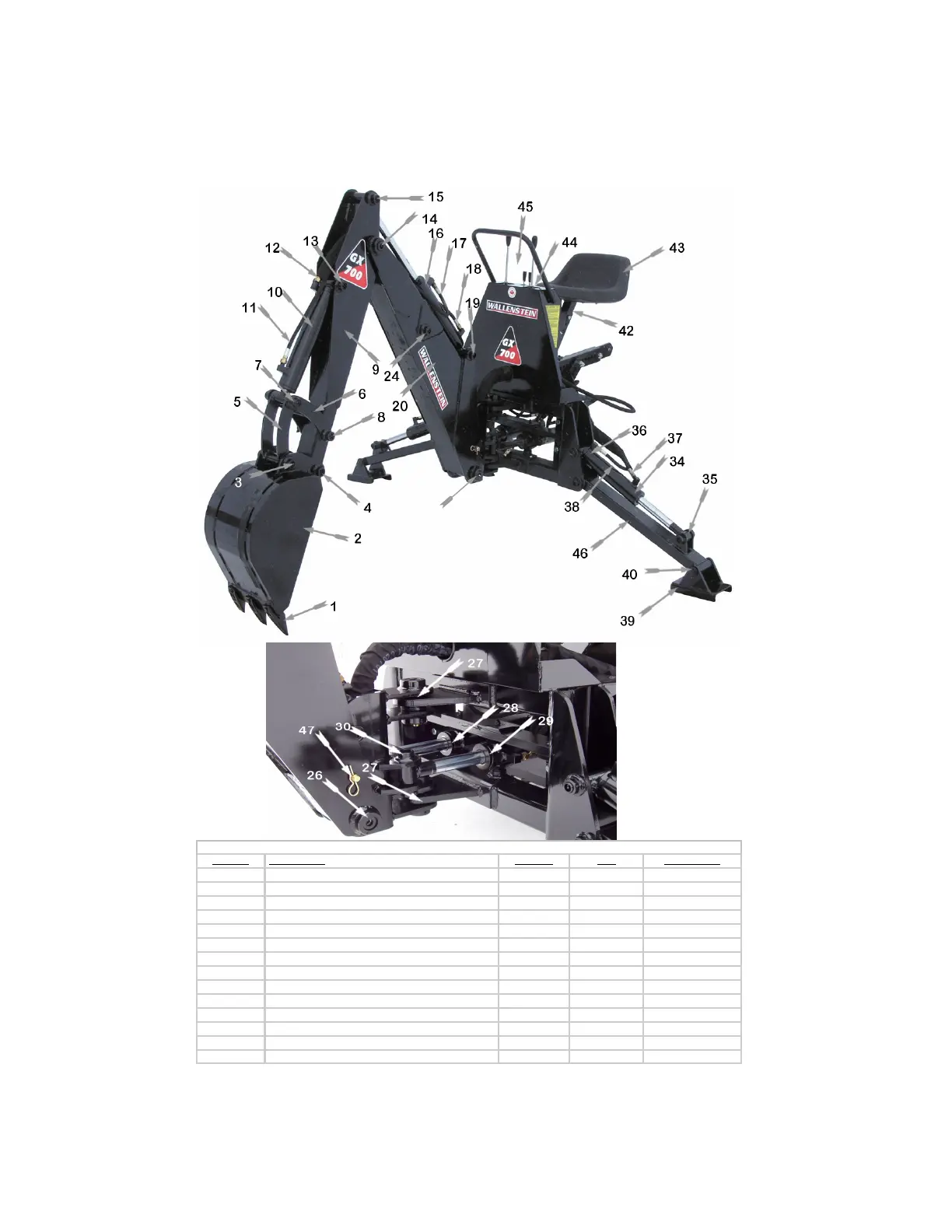

Parts List Diagram
