10

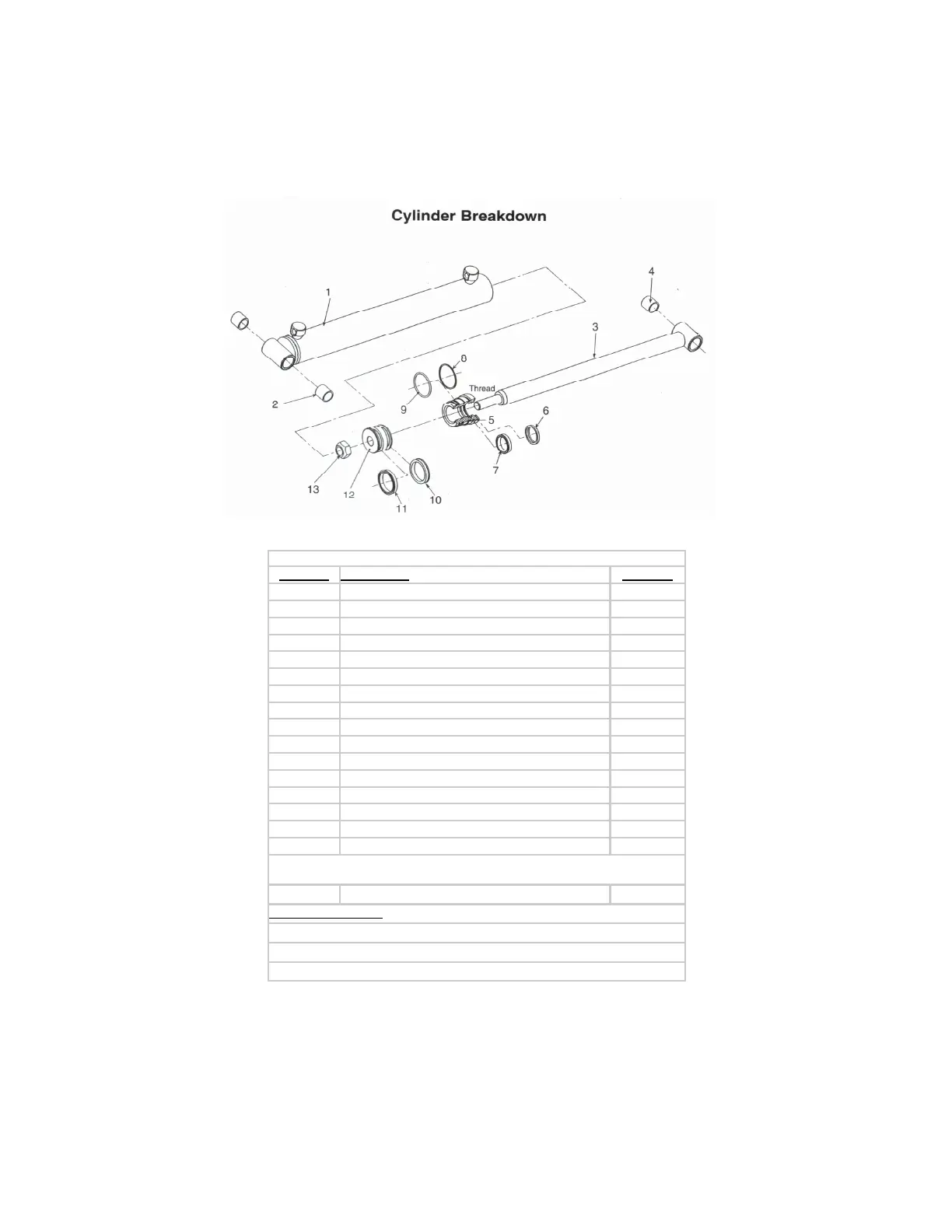

Cylinder Parts List
Position Description Quantity
1 cylinder barrel 1
2 changeable bushing 2
3 cylinder rod 1
4 changeable bushing 2
5 cylinder gland 1
6 wiper seal (order seal kit) 1
7 U-cup seal (order seal kit) 1
8 back-up seal (order seal kit) 1
9 O-ring (order seal kit) 1
10 bearing seal (order seal kit) 1
11 U-cup seal (order seal kit) 1
12 Piston+ 1
13 shaft nut 1
seal kit for 2" cylinder
seal kit for 2 1/2" cylinder
seal kit for 3" cylinder
Cylinder Diameters
GX600-- Main boom cylinder- 2 1/2", all other cylinders 2" diameter
GX700-- All cylinders are 2 1/2" in diameter
GX900-- Main boom cylinder- 3", all other cylinders 2 1/2" diameter
PART NUMBERS FOR INDIVIDUAL CYLINDERS ON FOLLOWING
PAGE.
