Embraco Scroll SE2014GS-O - External Dimensions

18

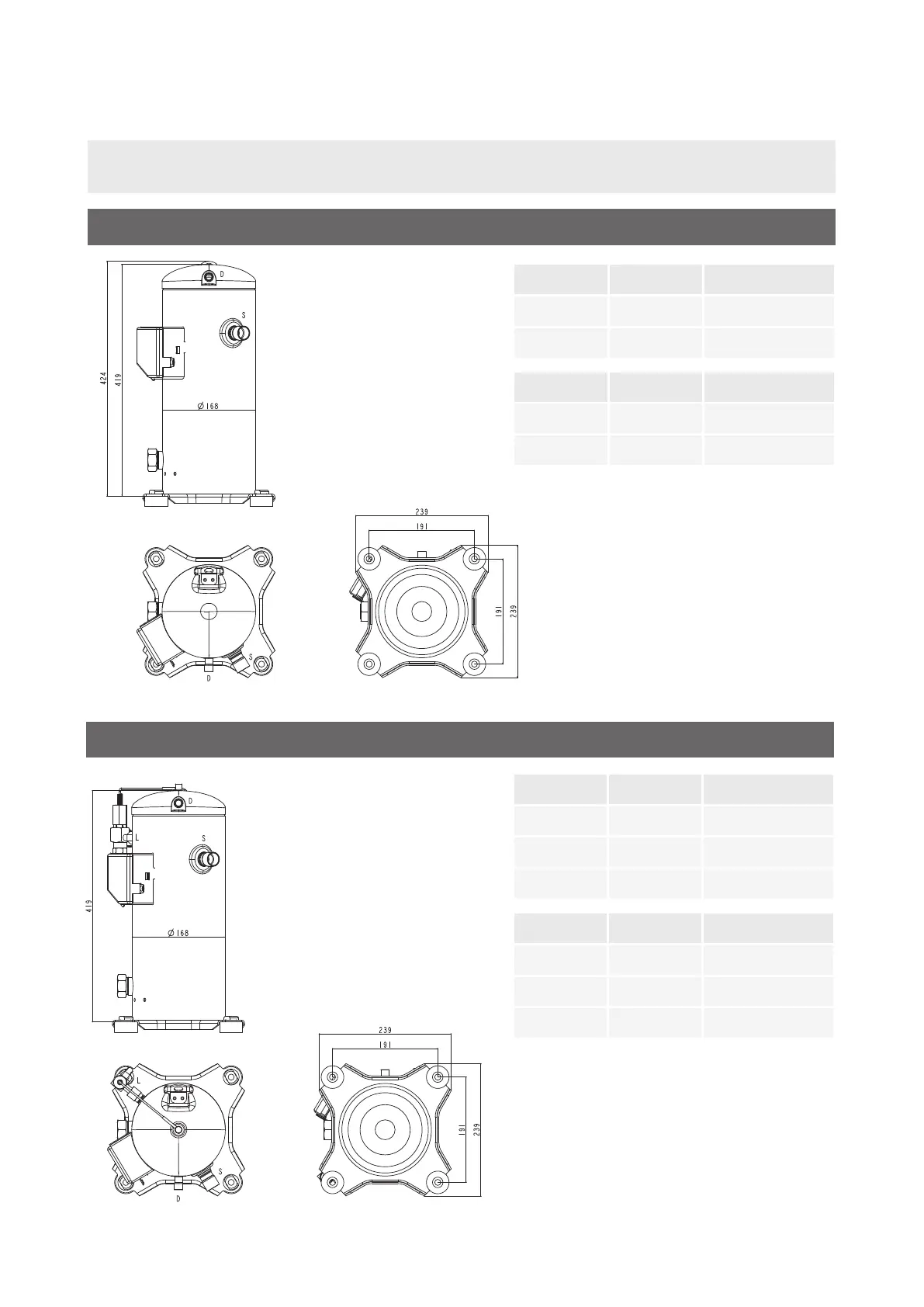

6.3 EXTERNAL DIMENSIONS
MBP_2-6 HP
BRAZING I.D. mm MATERIAL
S - SUCTION 22.35-22.45 COPPER PLATED STEEL
D - DISCHARGE 12.87-12.97 COPPER PLATED STEEL
ROTOLOCK I.D. inches MATERIAL
S - SUCTION 1 1/4"12UNF2A STEEL
D - DISCHARGE 3/4"16UNF2A STEEL
LBP_2-6 HP
BRAZING I.D. mm MATERIAL
S - SUCTION 22.35-22.45 COPPER PLATED STEEL
D - DISCHARGE 12.87-12.97 COPPER PLATED STEEL
L - LIQUID INJ. 3/8" COPPER PLATED STEEL
ROTOLOCK I.D. inches MATERIAL
S - SUCTION 1 1/4" 12UNF 2A STEEL
D - DISCHARGE 3/4" 16UNF 2A STEEL
L - LIQUID INJ. 3/8" STEEL
