VERTICAL SPEED DISPLAY

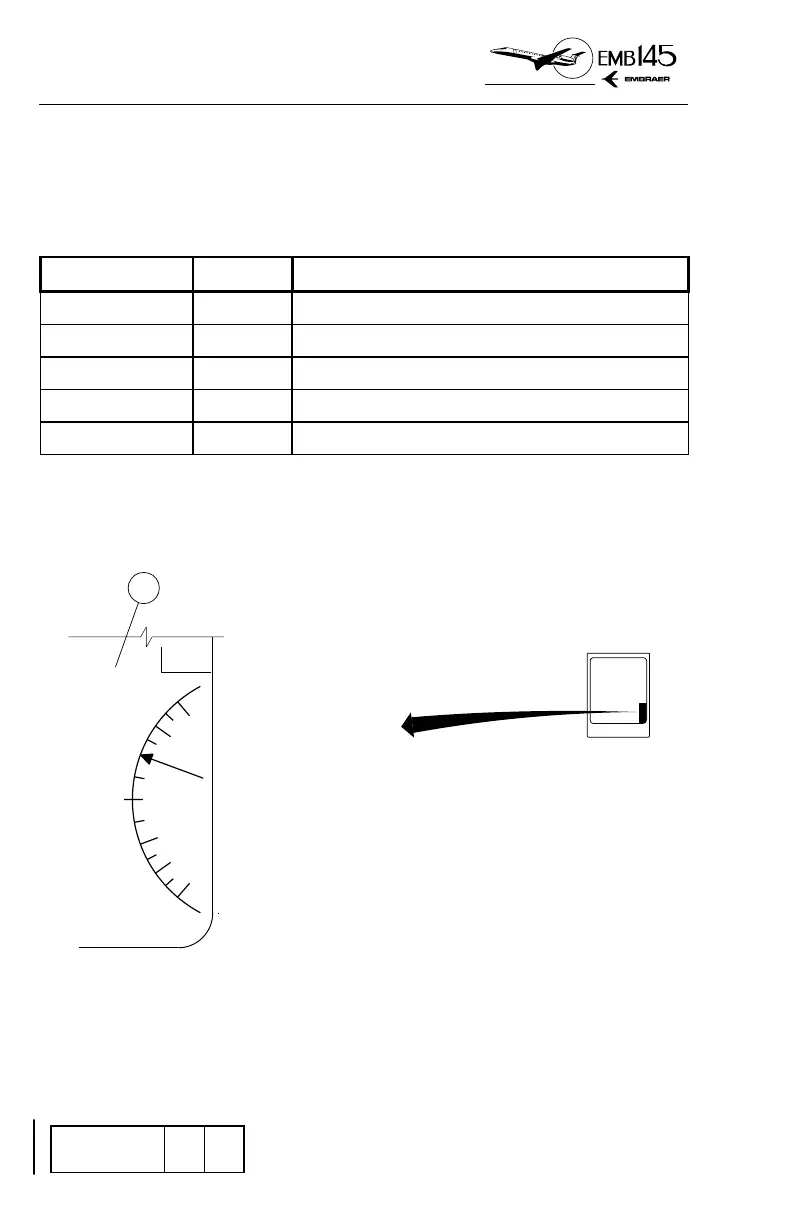

The picture above shows the location of the annunciator described
below:
1 - TCAS STATUS ANNUNCIATOR
Annunciator Color TCAS Status
TA ONLY white TCAS is in traffic advisory mode only.
TCAS OFF white TCAS is off.
TCAS TEST white TCAS is in self-test.
TCAS FAIL amber TCAS data is invalid.
RA FAIL red Resolution advisories are not available.
O
3
2
1
1
2
3
1OOO
3OOO
TCAS
TEST
1
PFD
EM145AOM040032A.DGN
VERTICAL SPEED DISPLAY ON THE PFD
