Embraer EMB145 - Page 1628

AIRPLANE
OPERATIONS
MANUAL
CREW
AWARENESS
REVISION 38
2-04-30
Page
7
Code
01
AOM-145/1114
EM145AOM042034B.DGN
0 1000 2000 3000 4000
5000
6000 7000 8000 9000
10000
0
200
400
600
800
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
SINKRATE WARNING AREA
OVER FLAT TERRAIN OR WATER
PULL UP WARNING AREA
MINIMUM TERRAIN CLEARANCE−ft
ALTITUDE RATE−ft/min DESCENT
MODE 1 EXCESSIVE DESCENT RATE
GLIDE SLOPE
SINK RATE
PULL−UP
SINK RATE
HEAD
TAIL
WARNINGS FROM 2450 ft AGL
30 ft
284 ft
1710 ft /min
2450 ft
5007 ft /min 7125 ft /min

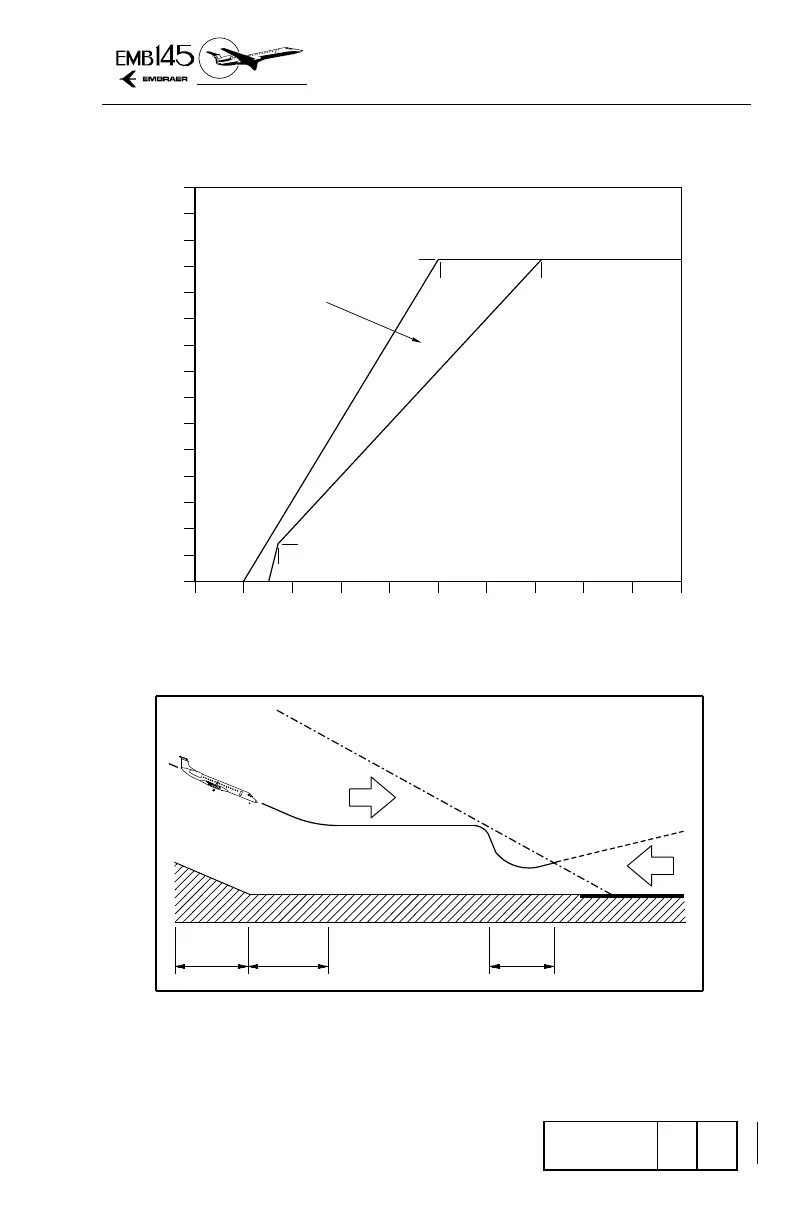

GPWS/EGPWS MODE 1 SCHEMATIC
