Embraer EMB145 - Page 1632

AIRPLANE
OPERATIONS
MANUAL
CREW
AWARENESS
REVISION 38
2-04-30
Page
11
Code
01
AOM-145/1114
EM145AOM042036C.DGN
0
200
400
600
800
1000
1200
1400
1600
1800
2000
2200
2400
2600
MINIMUM TERRAIN CLEARANCE−ft
STATIC ALERT/WARNING ENVELOPE
ALERT/WARNING AREA
0 2000 4000 6000 8000 10000
789 ft
3000 ft/min
2253 ft/min
2038 ft/min
FLAPS UP LOWER CUTOFF (30 ft)
CLOSURE RATE − ft/min
"PULL UP"
"TERRAIN TERRAIN"
FLAPS DOWN LOWER CUTOFF
(200 ft)
MODE 2B TERRAIN CLOSURE RATE

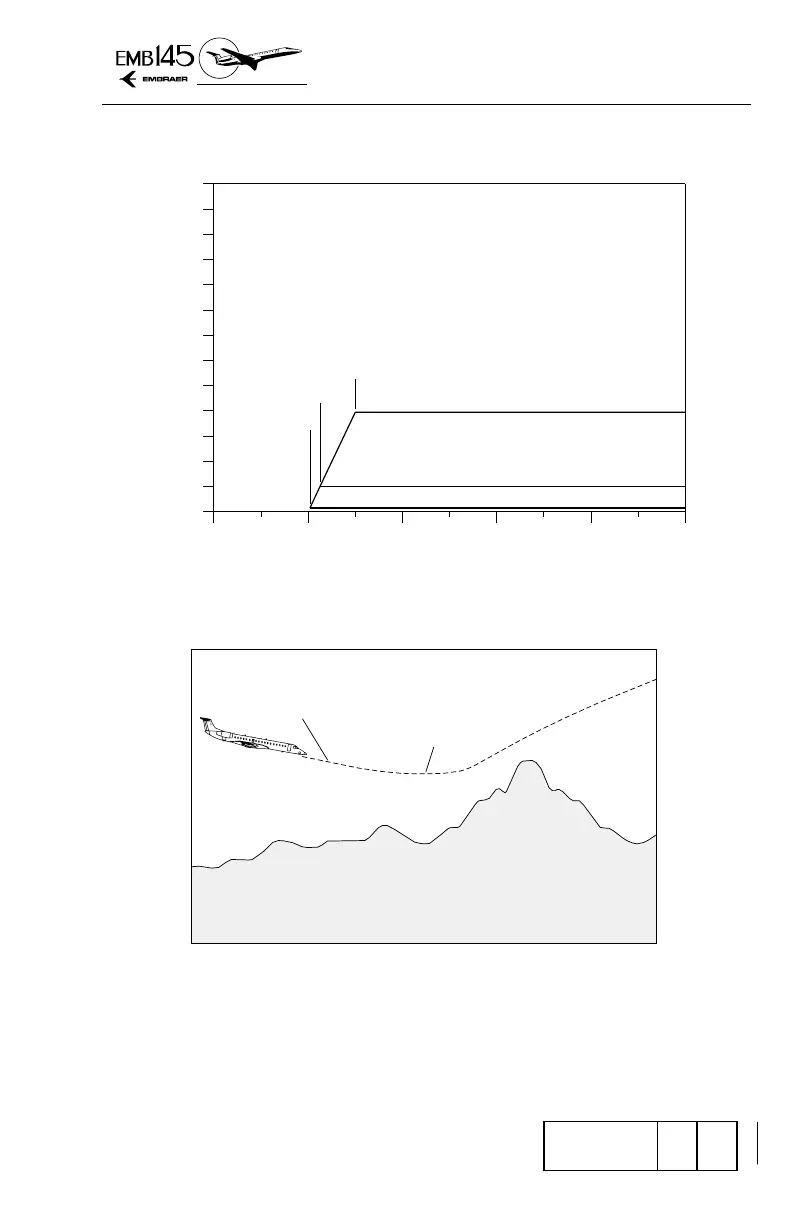

GPWS/EGPWS MODE 2B SCHEMATIC
