Embraer EMB145 - Page 1636

AIRPLANE
OPERATIONS
MANUAL
CREW
AWARENESS
REVISION 38
2-04-30
Page
15
Code
01
AOM-145/1114
EM145AOM042038C.DGN
0
0
200
400
600
800
1000
1200
1400
1600
1800
2000
2200
2400
2600
30 ft
MINIMUM TERRAIN CLEARANCE−ft
STATIC ALERT/WARNING ENVELOPE
COMPUTED AIRSPEED−kt
100 200 300 400
500 ft
190 kt
250 kt
1000 ft
ALERT/WARNING AREA
EXPANDED ALERT/WARNING AREA
1000 ft
500 ft
50 ft
TOO LOW
TERRAIN
TOO LOW
GEAR
TOO LOW GEAR
TOO LOW TERRAIN
M > 0.35
M < 0.35

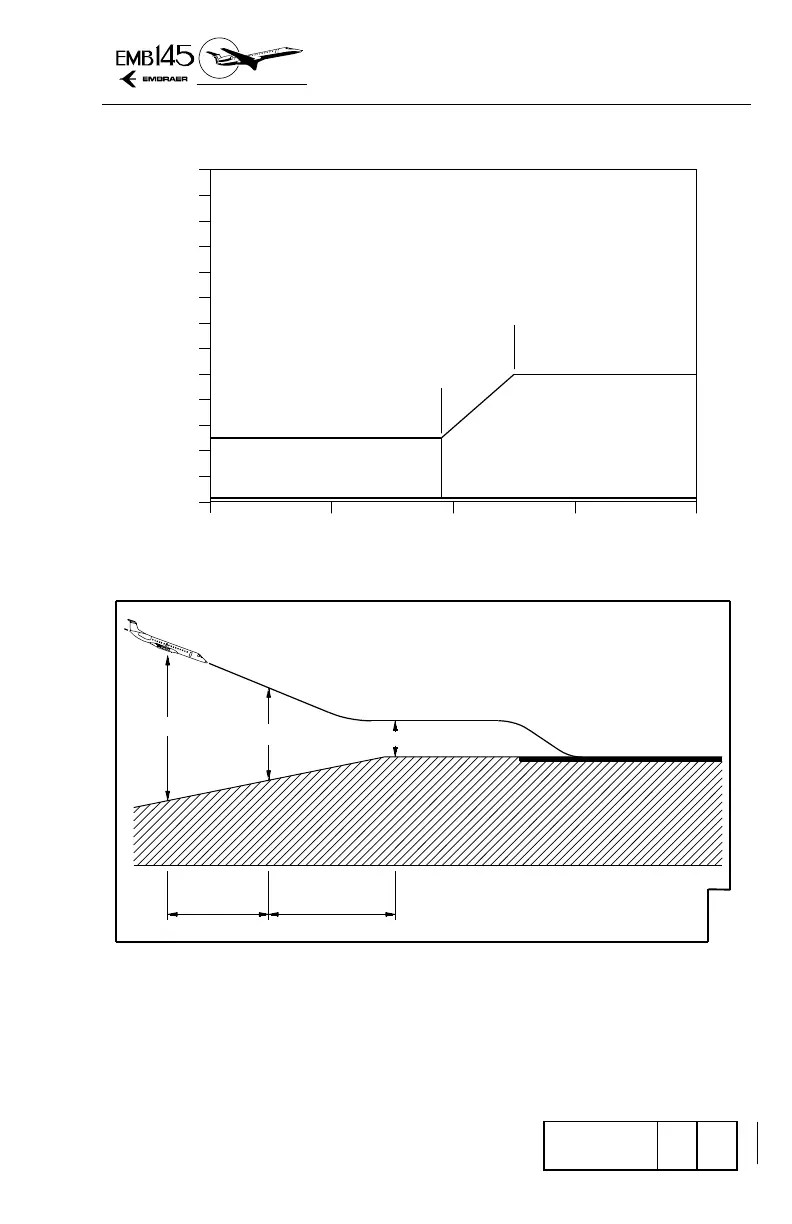

MODE 4A MINIMUM TERRAIN CLEARANCE
GPWS/EGPWS MODE 4A SCHEMATIC
