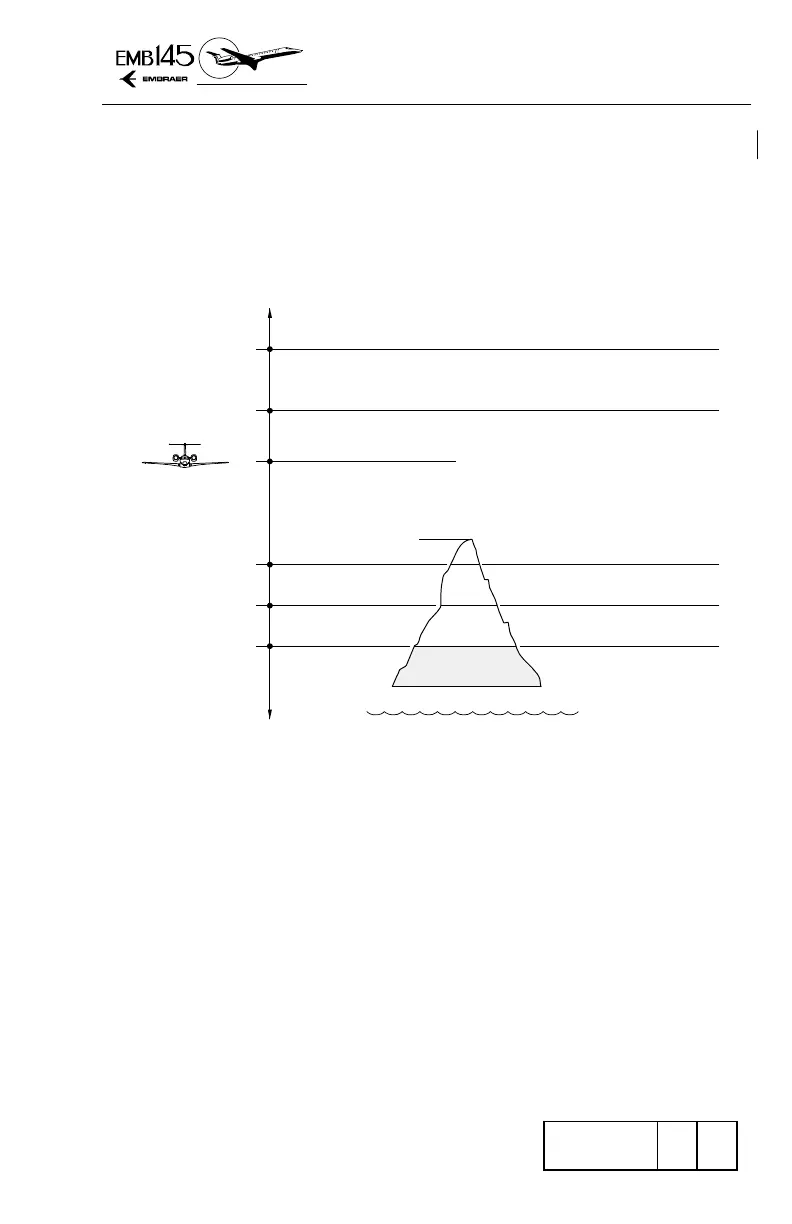

When the airplane is greater than 500 ft (250 ft with landing gear
down) above all terrain in the displayed range, no yellow or red bands
are displayed and low density green, medium density green and solid
green will be displayed as a function of the highest and lowest
elevations in view. Moreover, sea level elevations can be displayed as
cyan to simulate water.
EM145AOM042103B.DGN
HIGHEST BAND
MIDDLE BAND
LOWEST BAND
−250 ft (GEAR DOWN)
−500 ft
AIRPLANE ALTITUDE
SOLID GREEN
MEDIUM DENSITY YELLOW
HIGH DENSITY YELLOW
HIGH DENSITY RED
+2000 ft
+1000 ft
0 ft
MEDIUM DENSITY GREEN
LIGHT DENSITY GREEN
BLACK
(MAXIMUM ELEVATION NUMBER)
SEA LEVEL
CYAN
(MINIMUM
ELEVATION
NUMBER)
PEAKS PROFILE AT A HIGH RELATIVE ALTITUDE
