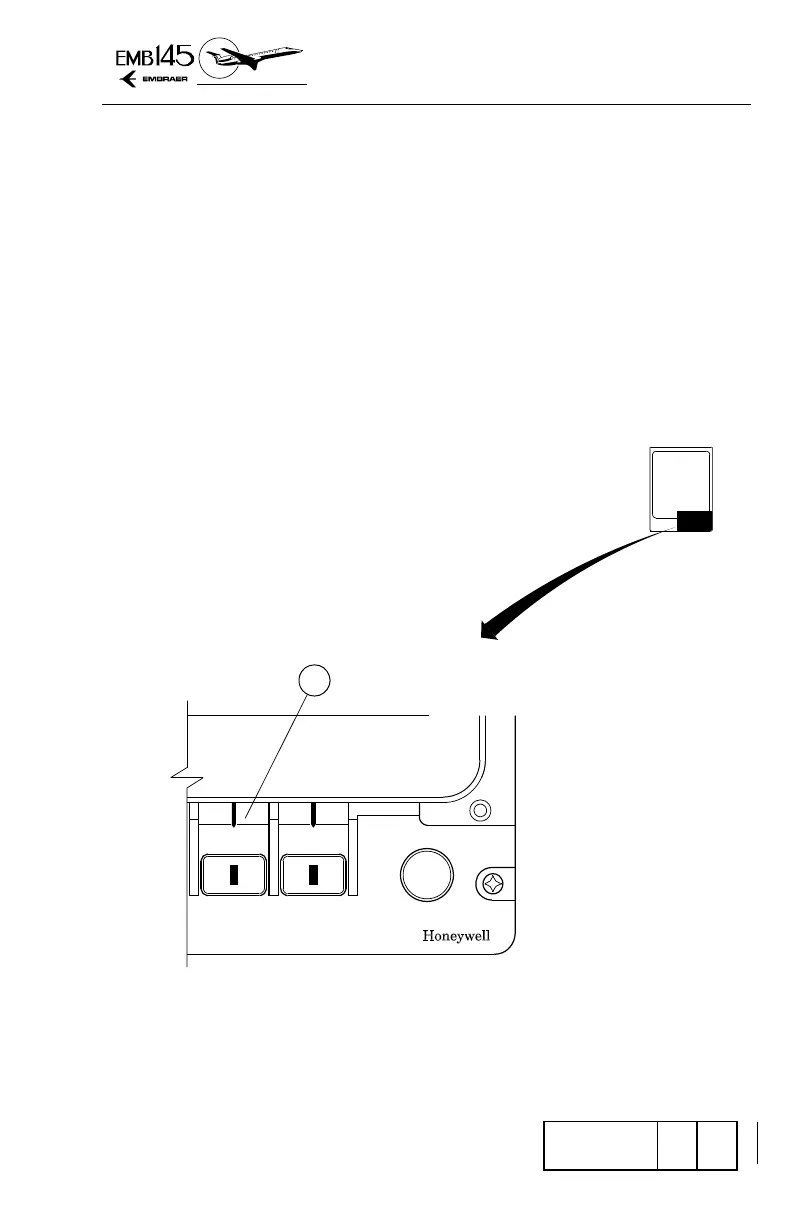

MFD BEZEL PANEL
1 - EGPWS DISPLAY SELECTOR BUTTON
− Alternate pressing will cause the MFD to toggle between the
weather radar or terrain to be displayed.
− The ranges allowed are: 5 NM, 10 NM, 25 NM, 50 NM, 100 NM,
200 NM, 300 NM, 500 NM and 1000 NM.
− When a terrain warning/caution condition exists and the terrain
is not selected on the MFD, the terrain will be automatically
displayed on the MFD with a range of 10 NM.
EM145AOM042047B.DGN
1
MFD
WX
TERR
MFD BEZEL PANEL
To Next Page
