6 - BATTERY VOLTAGE AND TEMPERATURE INDICATION
VOLTAGE:
− Digits are green and boxes are white during normal battery
operation.
− Digits and boxes are amber when the battery is inadvertently off
bus.
− Ranges from 0 to 40.0 V, with a resolution of 0.1 V.
TEMPERATURE:
− Boxes are white during battery normal operation.
− Boxes are amber when the battery is off bus.
− Digits are green when the temperature is below 70°C.
− Ranges from –40°C to 150°C, with a resolution of 1°C.
− Digits and boxes are red when the temperature is greater
than 70°C.
NOTE: The red alerts supersede any other condition.

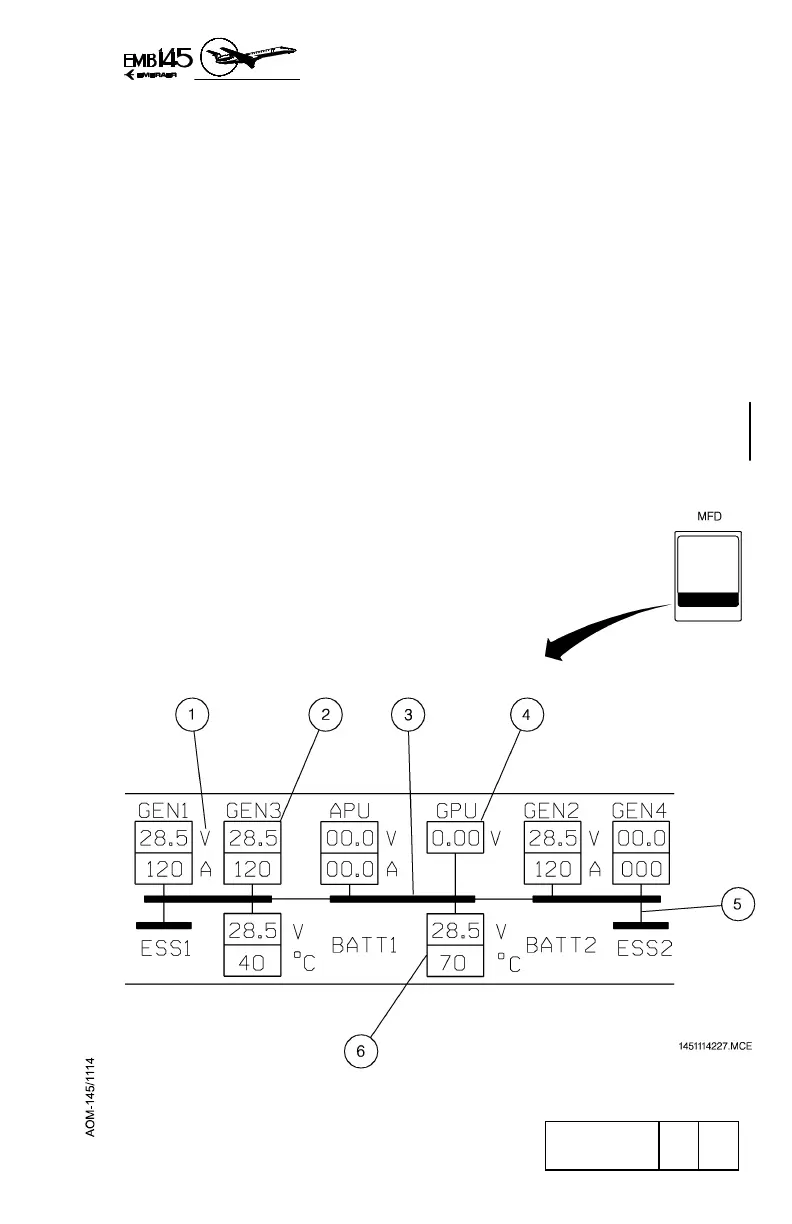

ELECTRICAL PAGE ON MFD
