CIRCUIT BREAKER PANEL AND LOAD
DISTRIBUTION
CIRCUIT BREAKER PANEL
The Circuit Breaker Panel is divided in areas associated to electrical
system buses.
Columns and lines on the circuit breaker panel are identified through
an alphabetic (for the lines) and numeric (for the columns) code.

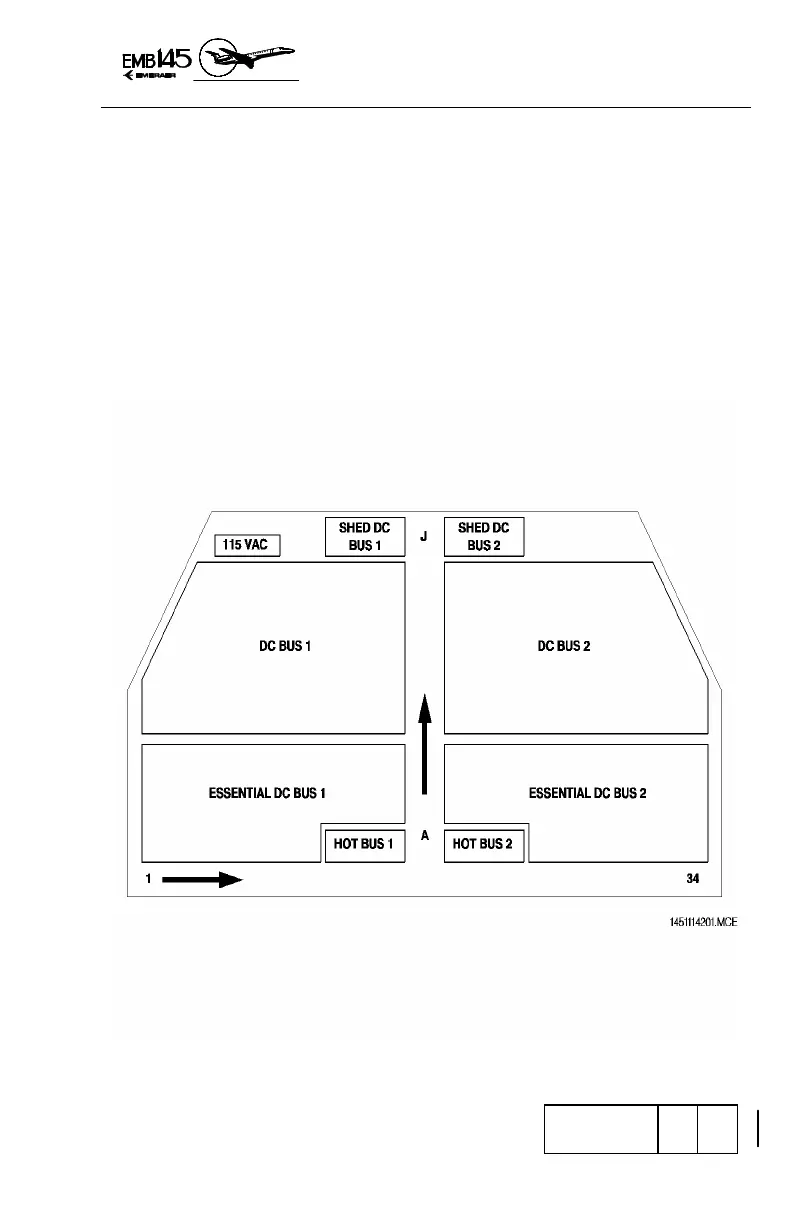

CIRCUIT BREAKER PANEL MAP
