FADEC computes a corrected fan speed corresponding to the thrust
lever position. The fan speed computed for the thrust lever position is
dependent upon the selectable thrust mode. The Target Thrust (N1
Target) is defined as the thrust corresponding to the corrected fan
speed scheduled with the thrust lever at the THRUST SET position. A
target thrust is computed for each thrust mode. Flight idle thrust
corresponds to the corrected fan speed with the TL at the idle position
and is independent of the thrust mode.

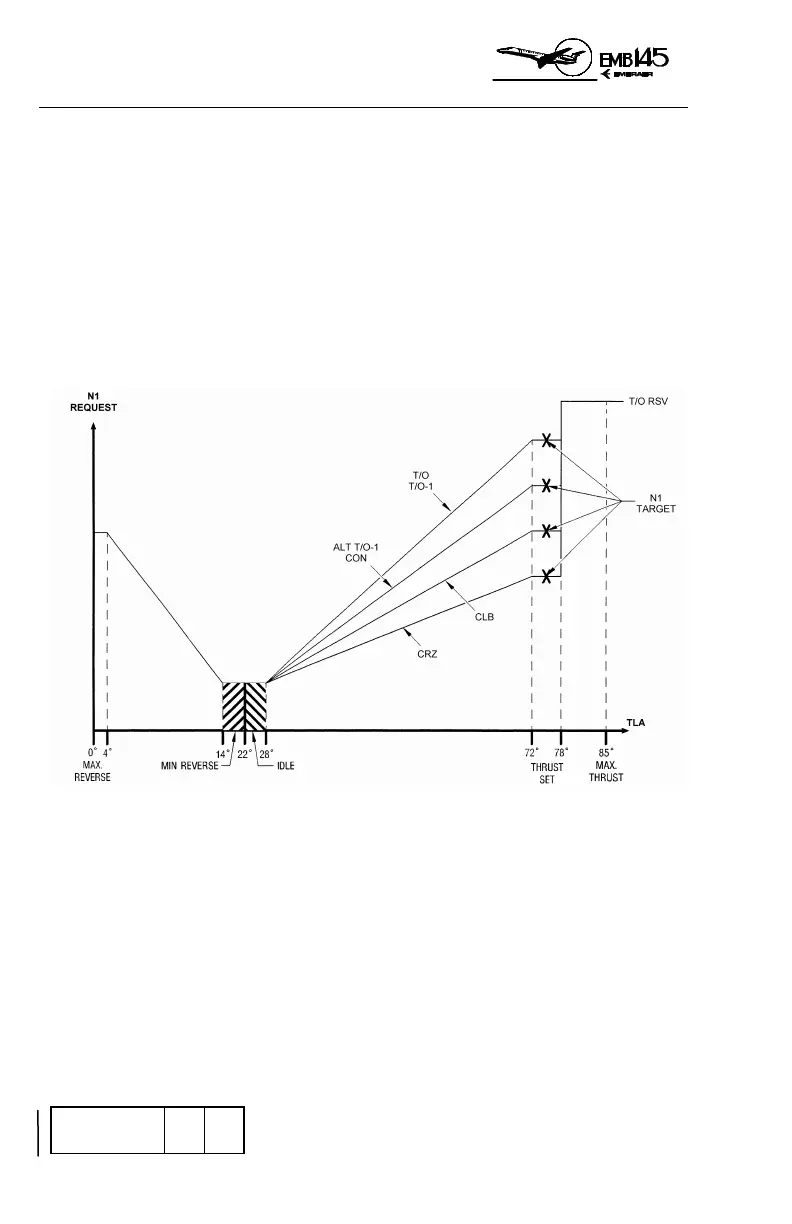

The
FADEC
schedules
thecorrected fan speed as a function of the thrust lever angle and the
thrust mode to result in the following linear relationships:
A1P and A1/3 Engines
