POWERPLANT
AIRPLANE
OPERATIONS
MANUAL
2-10-60
Page
8
Code
01
REVISION 39
AOM-145/1114
11 - OIL TEMPERATURE INDICATION
− Ranges from -54°C to 180°C with a resolution of 1°C.
− Scale, pointer, and digit colors:
− amber below 21°C.
− green from 21 to 126°C.
− red above 126°C.
12 - N1 REQUEST BUG
− Indicates N1 requested by the Thrust Lever position.
− Indicated by a green filled triangle.
− Ranges from 0 to 100% RPM.
− Indication is removed from the display for request values
greater than 100% or less than 0%.
13 - OIL PRESSURE INDICATION

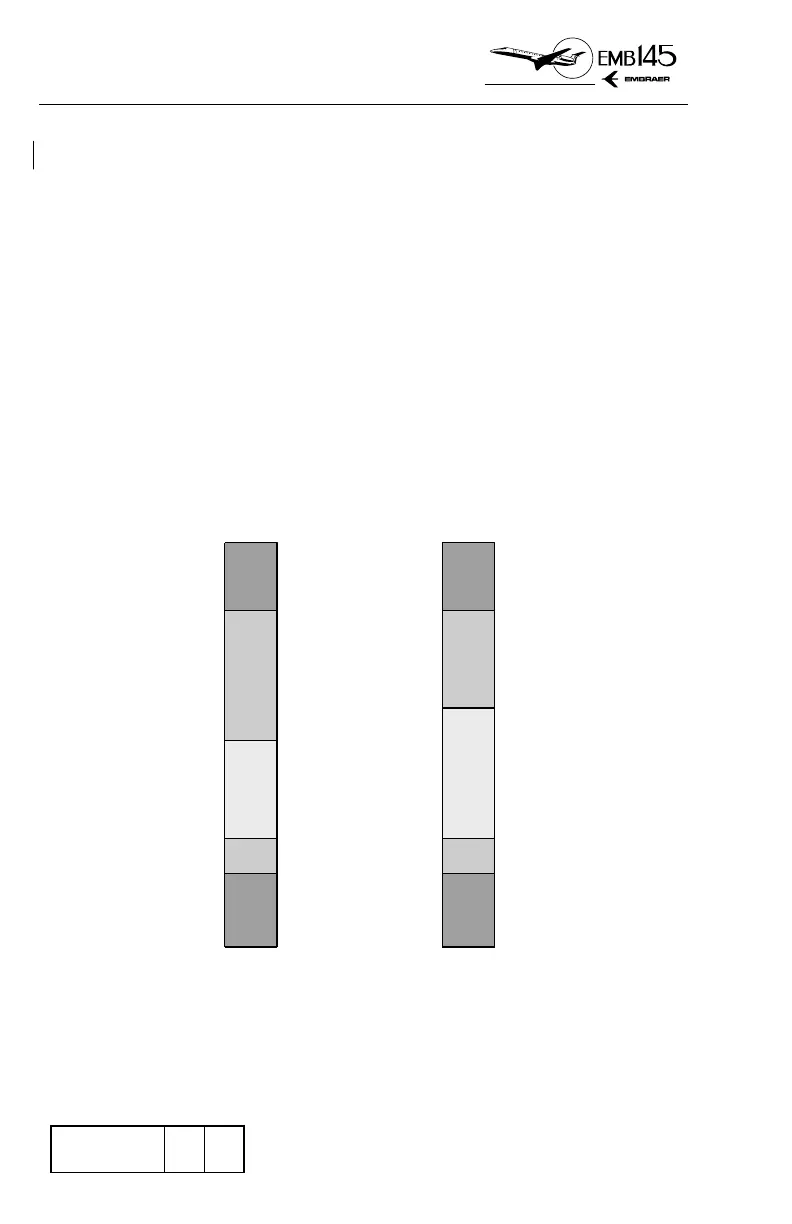

Scale, pointer, and digit colors depend on the FADEC version as
shown below:
(1)
FADEC B7.6
AND ON
(1)
110 PSI
EM145AOM011003A.DGN
GREEN
AMBER
95 PSI
RED
AMBER
RED
50 PSI
34 PSI
155 PSI
FADEC B7.5
AND BEFORE
GREEN
AMBER
RED
AMBER
RED
50 PSI
34 PSI
155 PSI
(1) For N2 < 88% the amber band between 34 psi and 50 psi
does not exist, and the green band lower limit is 34 psi.
To Next Page
