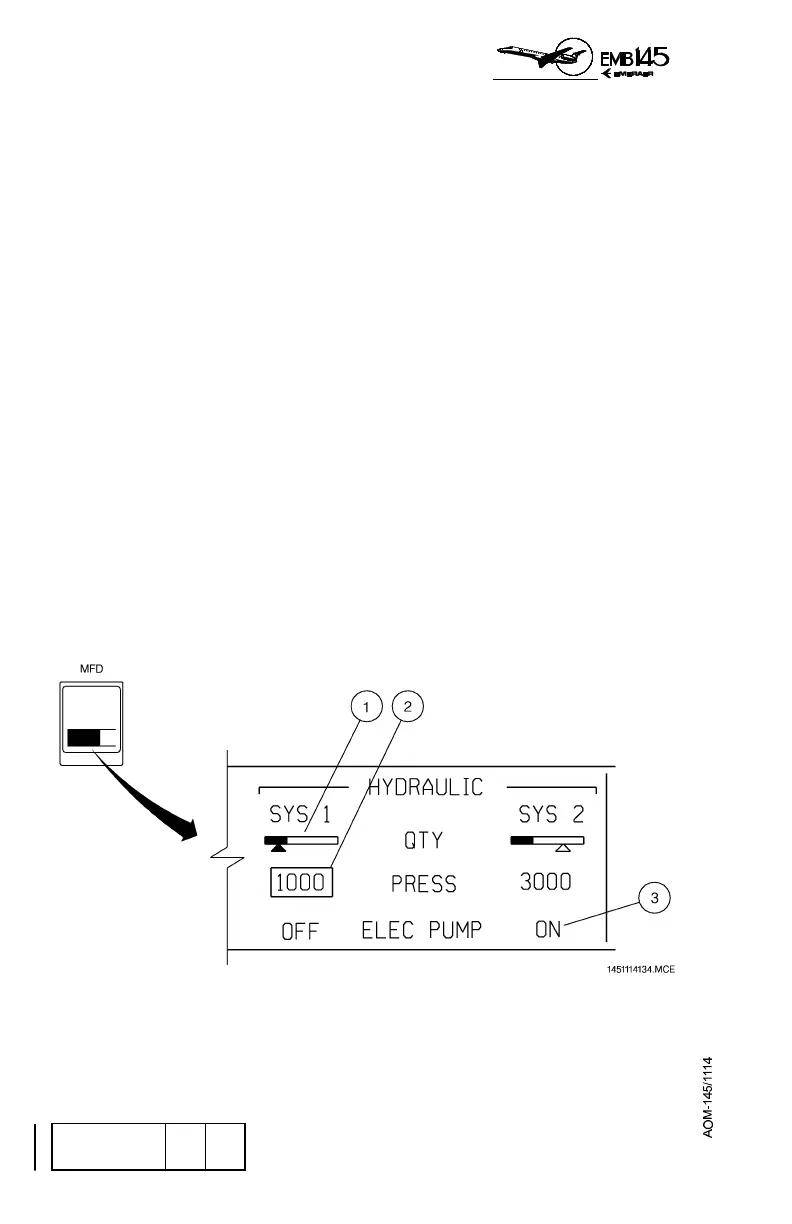

HYDRAULIC PAGE ON MFD
1- FLUID QUANTITY INDICATION
− Ranges from zero to maximum hydraulic fluid quantity.
− Scale (horizontal line) and pointer:
− green when greater than 1 liter.
− amber when equal to or less than 1 liter.
− Pointer disappears if data is invalid.
2- PRESSURE INDICATION
− Ranges from 0 to 4000 psi, with a resolution of 100 psi.
− Digits:
− green from 1300 to 3300 psi.
− amber and boxed below 1300 and above 3300 psi.
− Digits are replaced by amber dashes if data is invalid.
3- ELECTRIC PUMP STATUS
− Indicated by the green label ON or OFF.
HYDRAULIC PAGE ON MFD
