LANDING GEAR AND
BRAKES
REVISION 40
2-12-15
Page
3
Code
01
AOM-145/1114
EM145AOM122012B.DGN
HANDWHEEL
POTENTIOMETER
AIR/GROUND
GEAR POSITION
STEERING
HANDWHEEL
(PILOT’S CONSOLE)
RUDDER PEDAL
POTENTIOMETER
ELECTRONIC
CONTROL
MODULE
HYDRAULIC
SYSTEM 1
RETURN
EICAS
POTENTIOMETER
NOSE LANDING GEAR
(TOP VIEW)
ACTUATOR
HYDRAULIC
MANIFOLD
7° POSITION SENSOR
AND FEEDBACK
DISENGAGE
BUTTON
DISENGAGE
BUTTON

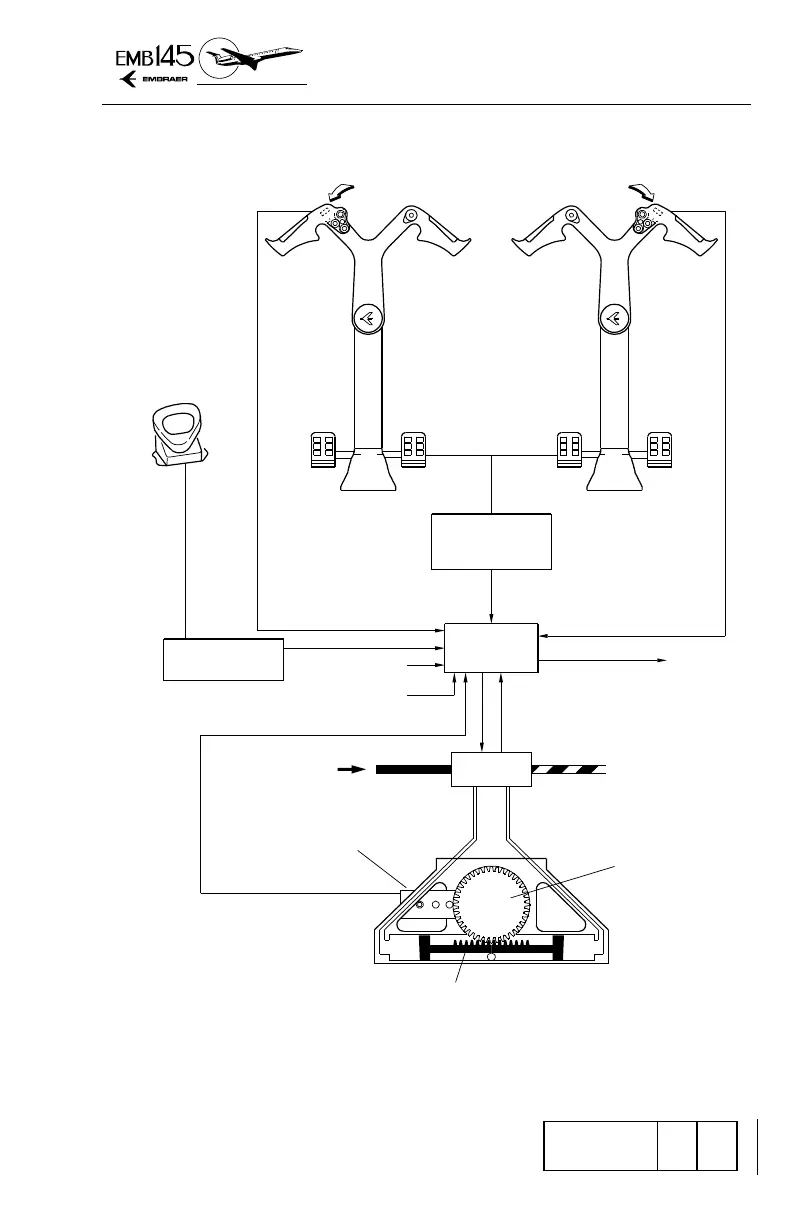

NOSE WHEEL STEERING SCHEMATIC
