PILOT'S CONSOLE

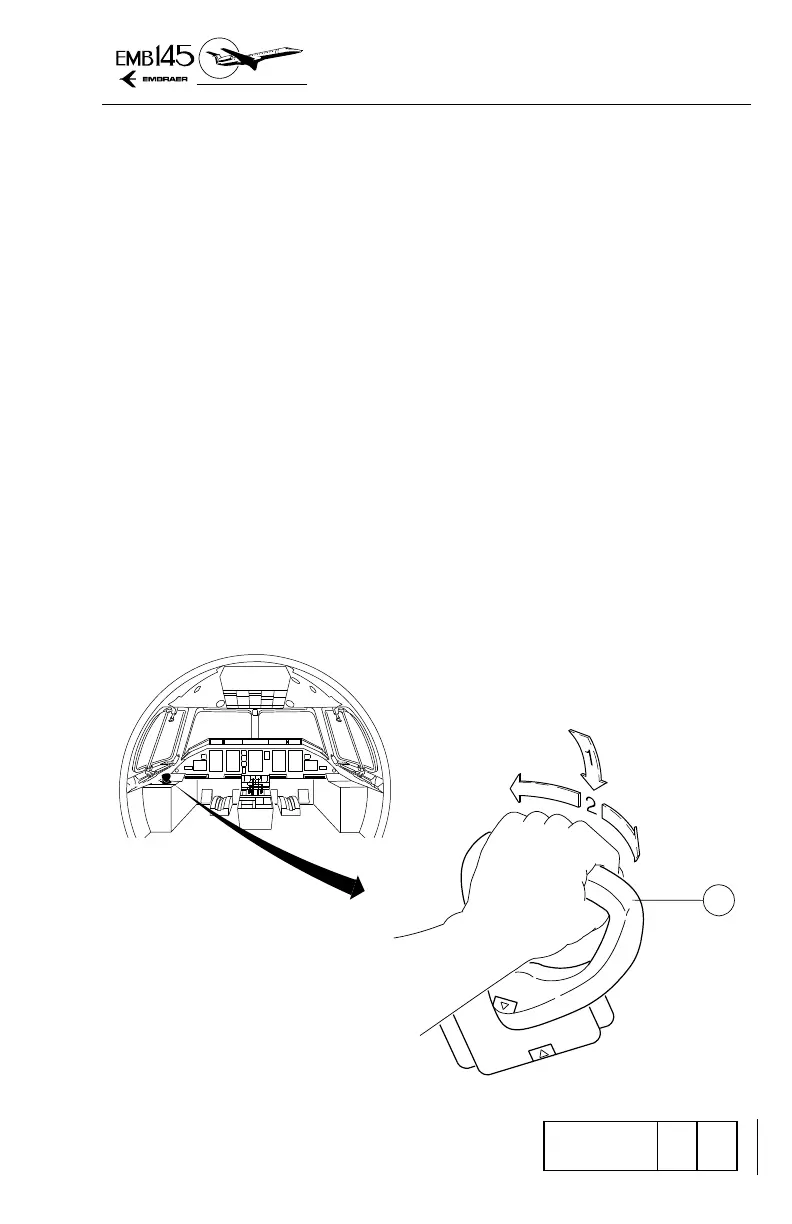

1 - STEERING HANDLE
 Commands nose wheel steering, allowing 71 deflection to
either sides.
 The steering handle can be moved downward and to either
sides. When steering handle is moved downward the handle
potentiometer output signal is connected to the Electronic
Control Module. Push the handle down (step 1) to enable the
command or to reset the steering system after disconnection.
Rotate left or right (step 2), with the steering handle on down
position, to command steering.
NOTE: - For airplanes operating under FAA certification and Pre-Mod
SB 145-32-0002 the nose wheel steering deflection is limited
to 50° to either sides.
- The Steering Handle has priority over the Steering
Disengage Button when both are pressed (in case of
jammed rudder, the Steering Handle is used to control the
airplane and the pilot must keep the Steering Disengage
Button pressed to avoid undesired pedal command once on
ground).
EM145AOM122013A.DGN
PILOT’S CONSOLE
1
STEERING HANDLE
