FLIGHT CONTROLS
AIRPLANE
OPERATIONS
MANUAL
2-13-10
Page
4
Code
01
REVISION 38
AOM-145/1114
EM145AOM132038A.DGN
ELEV
DISC
PRESS
AND
PULL
NOSE
DOWN
ELEVATOR DISCONNECTION
HANDLE
(CONTROL PEDESTAL)
DISCONNECTION
DEVICE
AUTOPILOT
SERVO
STICK PUSHER
SERVO
ELEVATOR
CAUTION
LIGHT
TO LEFT
ELEVATOR
ONLY RIGHT ELEVATOR SHOWN
SERVO TAB
SPRING TAB
(*) PITCH TRIM MARKS

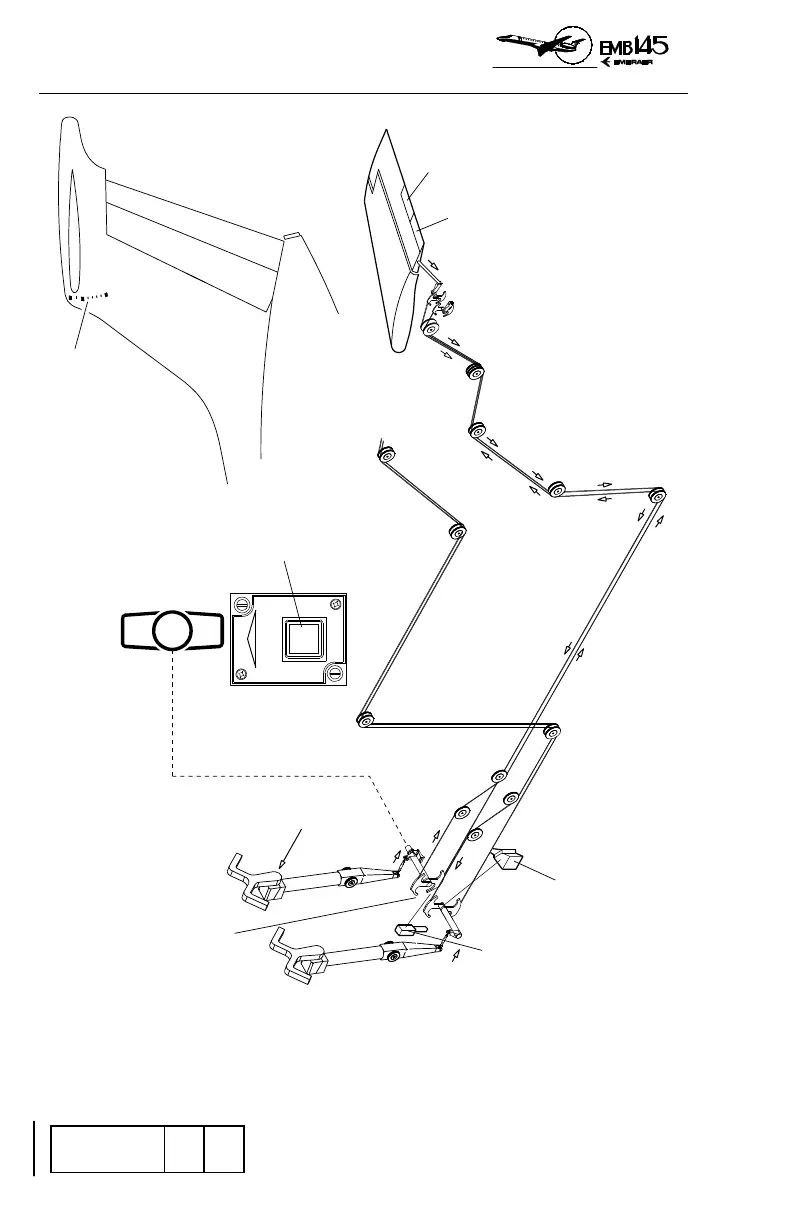

ELEVATOR SCHEMATIC
(*) The thick marks represent, respectively, 4q nose down (top of the scale), neutral,
and 10q nose up (bottom of the scale) and each intermediate marks represent a
2q variation.
