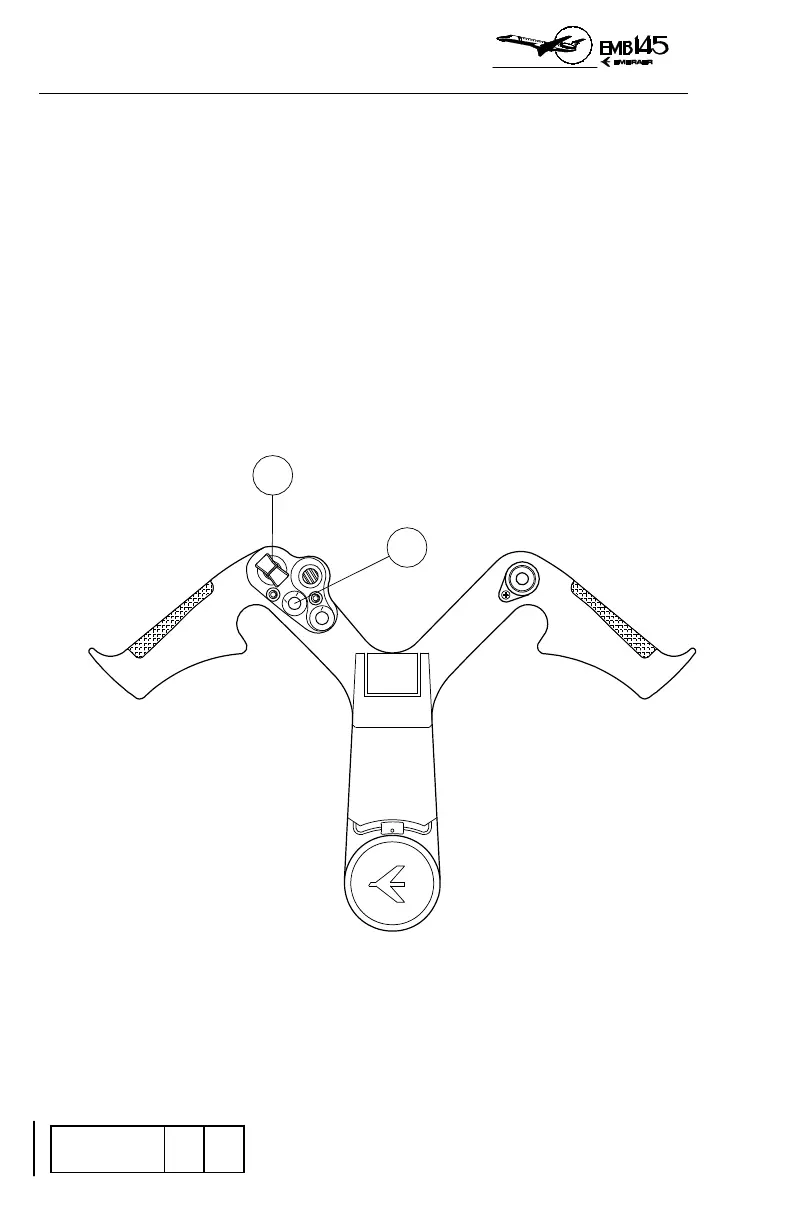

CONTROL WHEEL
1 - PITCH TRIM SWITCH (SPRING-LOADED TO NEUTRAL)
Allows trimming the airplane when the autopilot is not engaged.
The trim switch is a 3-position (UP/OFF/DN) rocker switch.
Operating the switch while the autopilot is engaged causes the
autopilot to disengage.
It is divided into two segments, which have to be actuated
together to provide command.
2 - QUICK-DISCONNECT BUTTON (MOMENTARY ACTION)
When pressed, disconnects all trim systems.
