AIRPLANE
OPERATIONS
MANUAL
FLIGHT CONTROLS
AUGUST 24, 2001
2-13-15
Page
9
Code
01

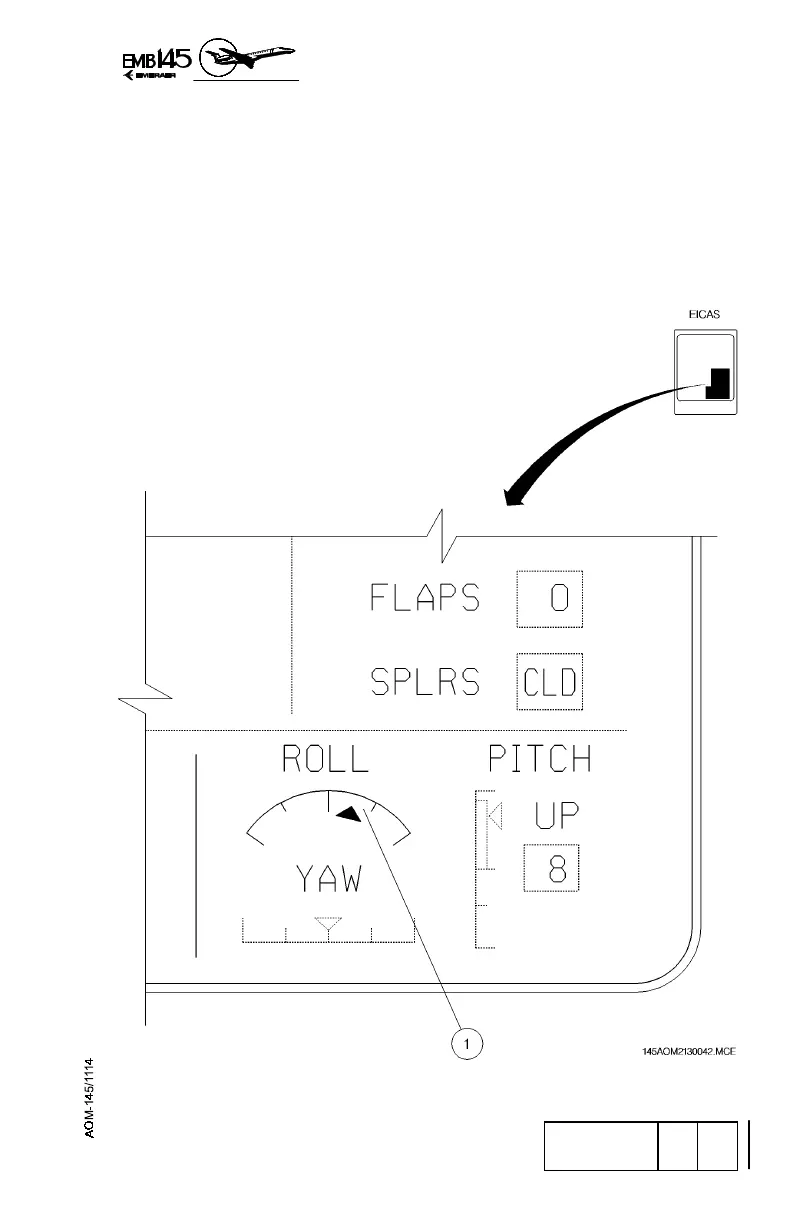

EICAS INDICATIONS
1- ROLL TRIM POSITION
− Indicated by a green pointer moving on a white semicircle scale.
− Center of the scale is zero trimming.
− Each mark represents 50% of trimming range for the associated
side.
EICAS INDICATIONS
