FLIGHT CONTROLS
AIRPLANE
OPERATIONS
MANUAL
2-13-30
Page
6
Code
01
AUGUST 24, 2001
EICAS INDICATIONS

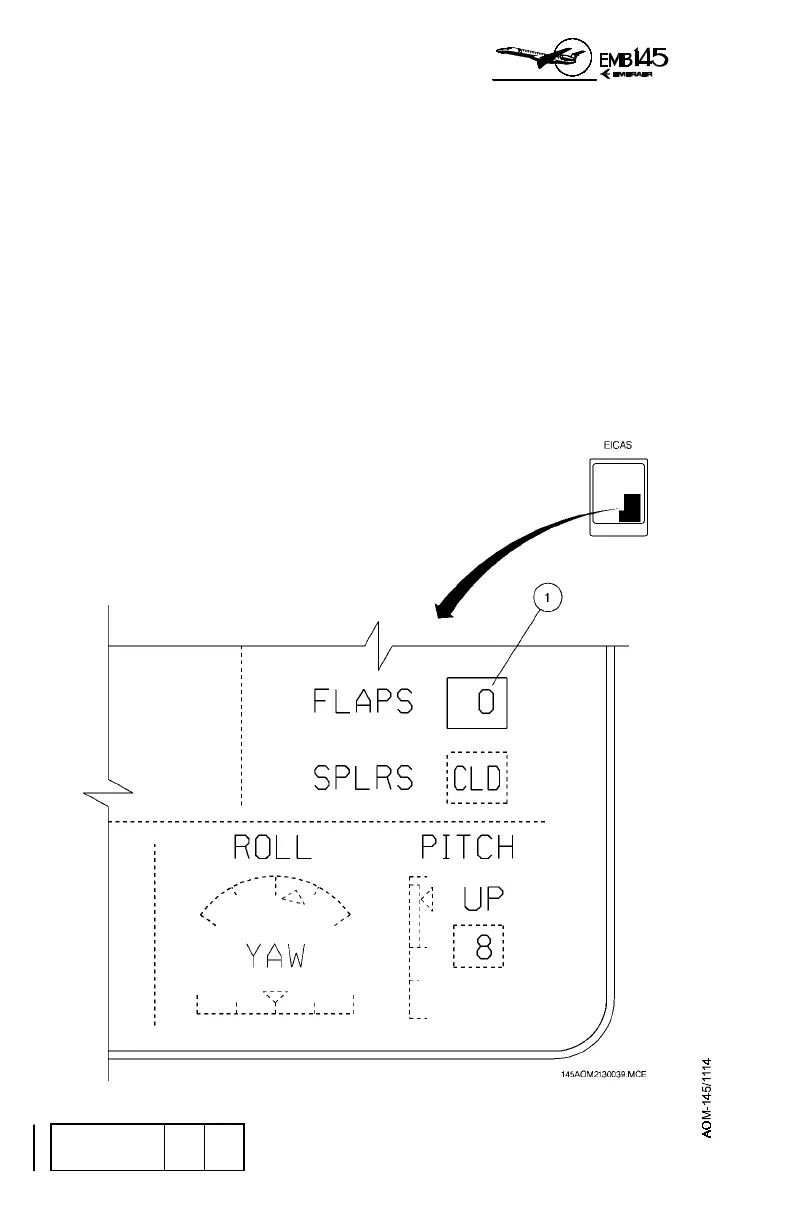

1- FLAPS POSITION
− Ranges from 0° to 45°, with discrete indication on 0°, 9°, 18°,
22° and 45°.
− Colors:
− Box: white.
− Digits: - green (except 0, which is white).
- changes to a green dash when flaps are in transit.
− In-transit flap position is replaced by the actual flap position if
flap fails.
− If data is invalid, digits are replaced by amber dashes and box
becomes amber.
EICAS INDICATIONS
To Next Page
