Embraer EMB145 - Page 2134

AIRPLANE
OPERATIONS
MANUAL
ICE AND RAIN
PROTECTION
REVISION 39
2-15-10
Page
5
Code
01
AOM-145/1114
EM145AOM152003A.DGN
TO ECU
LEFT WING
PICCOLO TUBE
PICCOLO TUBE
AIRFLOW
RESTRICTOR
LOW PRESSURE
SENSOR
SWITCH
WING
ANTI−ICING
VALVE
RIGHT WING
DIFFERENTIAL
PRESSURE
SENSOR
FROM
PNEUMATIC
SYSTEM
DIFFERENTIAL
PRESSURE
SWITCH
P
2
P
2
OVERPRESSURE
DIFFERENTIAL
PRESSURE
SWITCH
AIRFLOW
RESTRICTOR
LOW PRESSURE
SENSOR
SWITCH
OVERPRESSURE
WING
ANTI−ICING
VALVE
AIRPLANES PRE-MOD. SB 145-30-0019

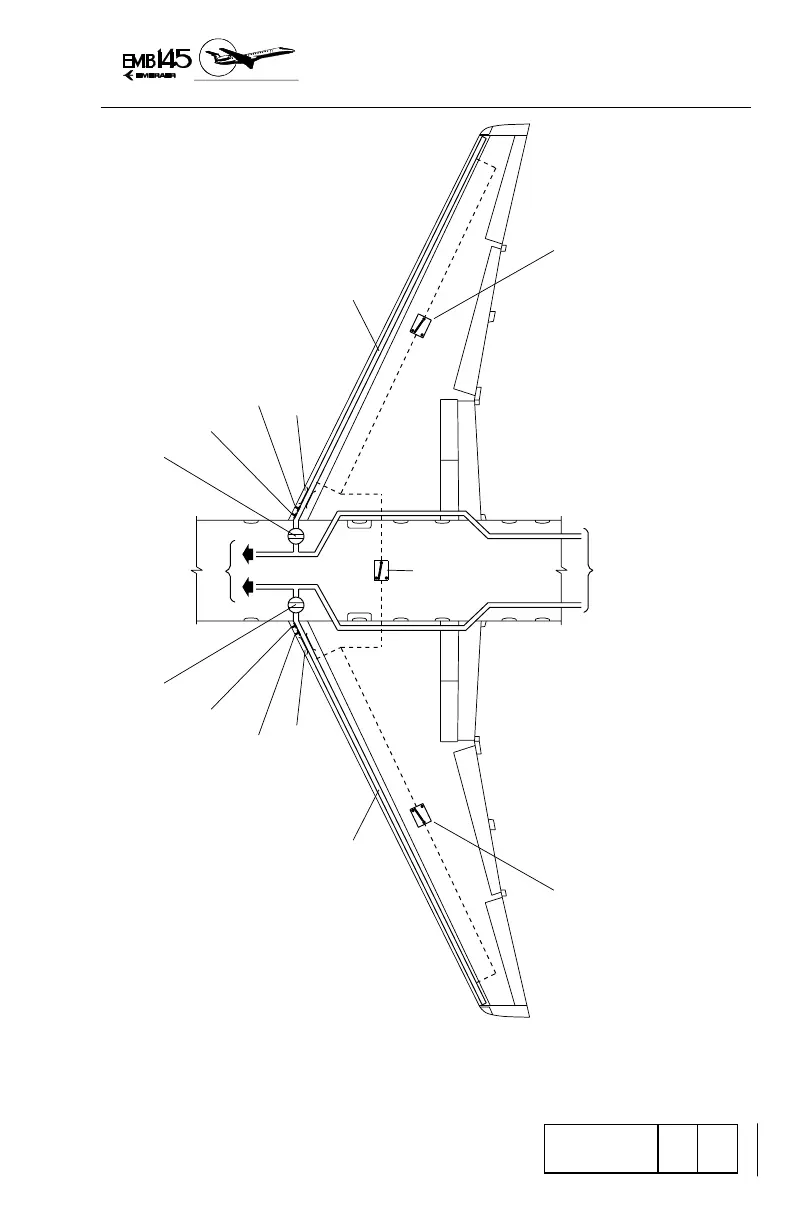

WING ANTI-ICING SYSTEM SCHEMATIC
