AIRPLANE
OPERATIONS
MANUAL
FLIGHT
INSTRUMENTS
REVISION 33
2-17-35
Page
3
Code
01

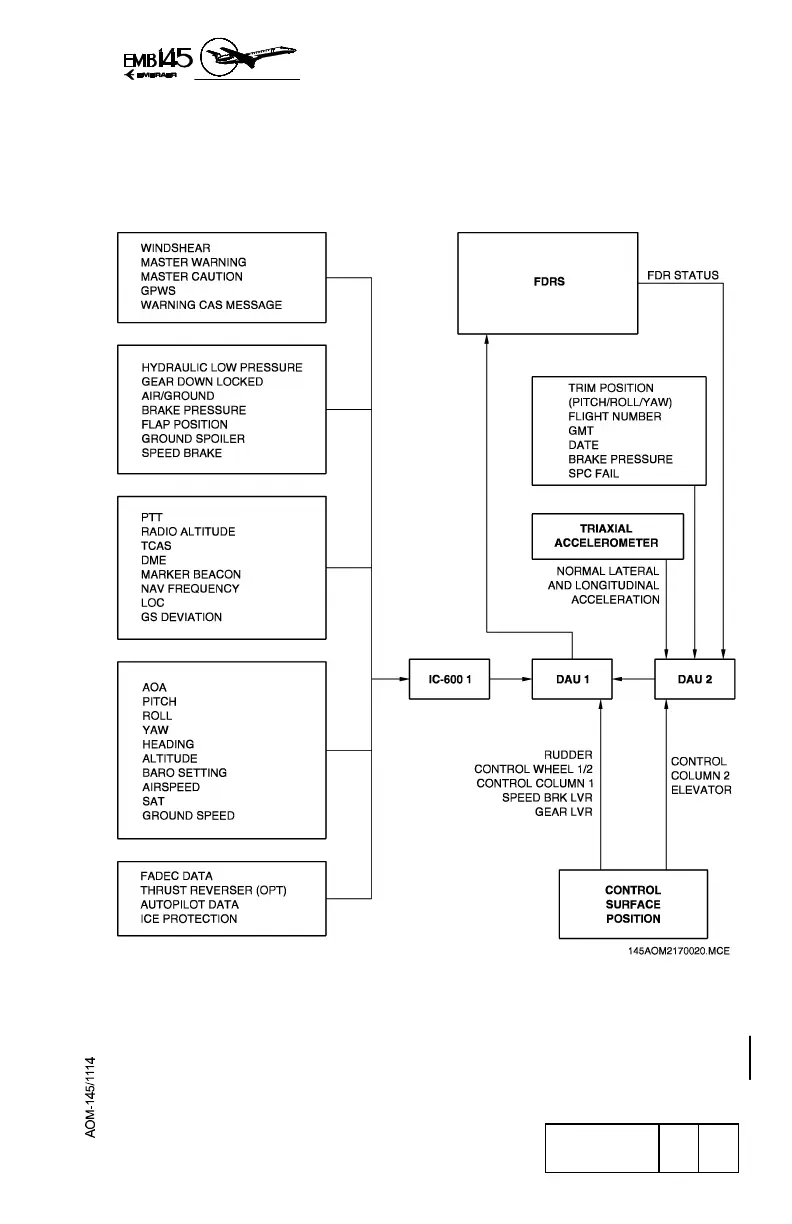

FLIGHT DATA RECORDER SYSTEM SCHEMATIC
(for airplanes not equipped with AFDAU)
