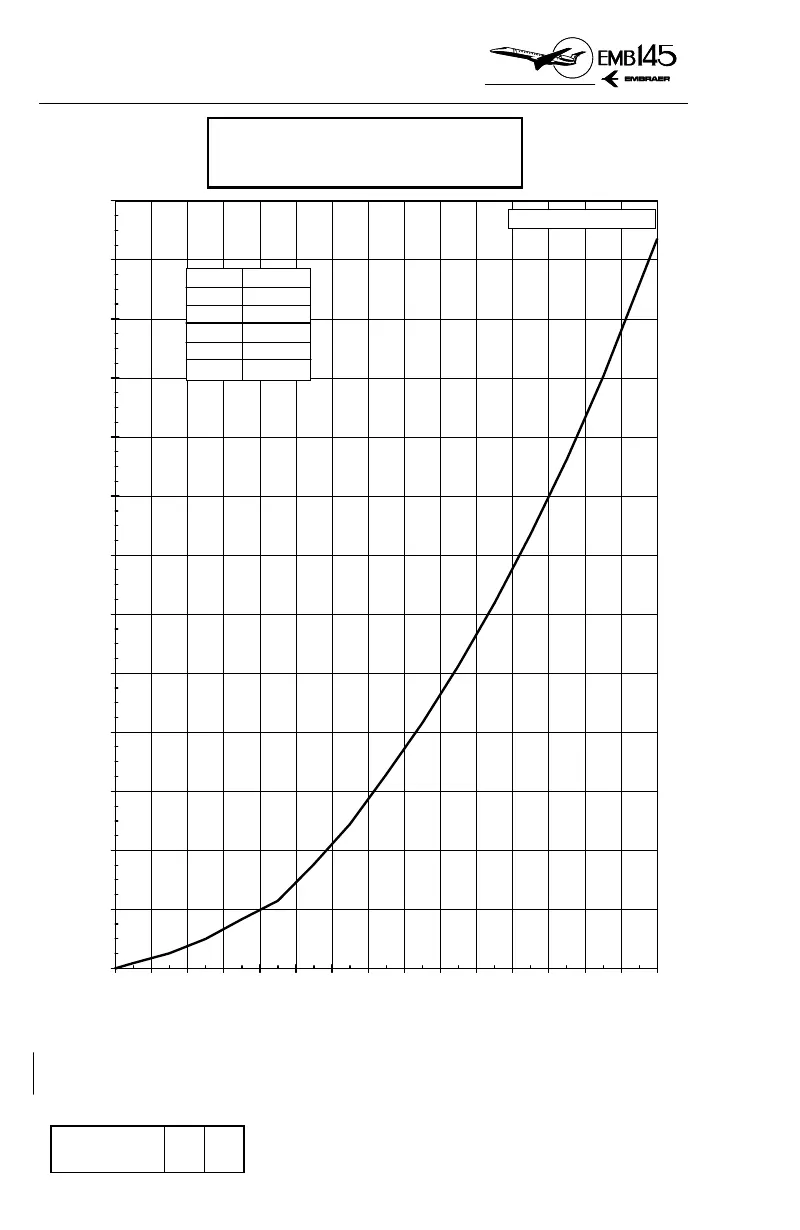

GRADIENT LOSS DUE TO A STEADY TURN
ONE ENGINE INOPERATIVE
TAKEOFF FLAPS 18°
0,0
0,2
0,4
0,6
0,8
1,0
1,2
1,4
1,6
1,8
2,0
2,2
2,4
2,6
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
BANK ANGLE - deg
GRADIENT LOSS - %
GRLOSS_TO - MAY 07, 2001
Φ
ΔV (KIAS)
0 0
15 0
20 5
25 10
30 15
ALL ENGINES MODELS
GRADIENT LOSS DUE TO A STEADY TURN
ONE ENGINE INOPERATIVE
TAKEOFF FLAPS 18°
0,0
0,2
0,4
0,6
0,8
1,0
1,2
1,4
1,6
1,8
2,0
2,2
2,4
2,6
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
BANK ANGLE - deg
GRADIENT LOSS - %
GRLOSS_TO - MAY 07, 2001
Φ
ΔV (KIAS)
0 0
15 0
20 5
25 10
30 15
ALL ENGINES MODELS
