Embraer EMB145 - Page 981

AIRPLANE
OPERATIONS
MANUAL
WEIGHT AND
BALANCE
REVISION 29
1-06-40
Page
15
Code
03

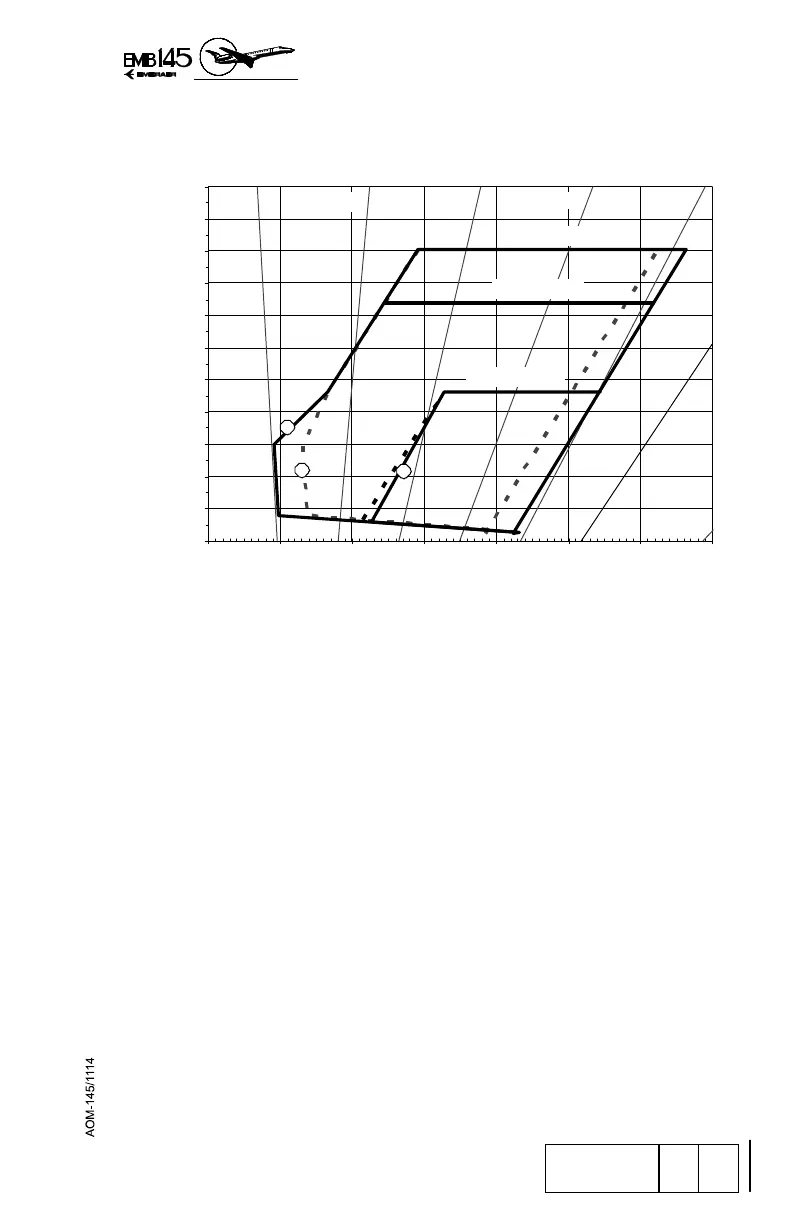

EMB-135LR Constrained CG Envelope (Standard)
26000
28000
30000
32000
34000
36000
38000
40000
42000
44000
46000
48000
0 10203040506070
INDEX
WEIGHT (lb) a-a
15% 20% 25% 30%
40%
1
2
MTOW = 19990 lb
MLW = 18500 lb
MZFW = 16000 lb
35%
3
Figure 4
1 - TOW limit (more than 33 paxs).
2 - TOW limit (with 33 paxs or less).
3 - ZFW limit.
