Embraer EMB145 - Page 998

LOADING
AIRPLANE
OPERATIONS
MANUAL
1-07-10
Page
2
Code
40
REVISION 26

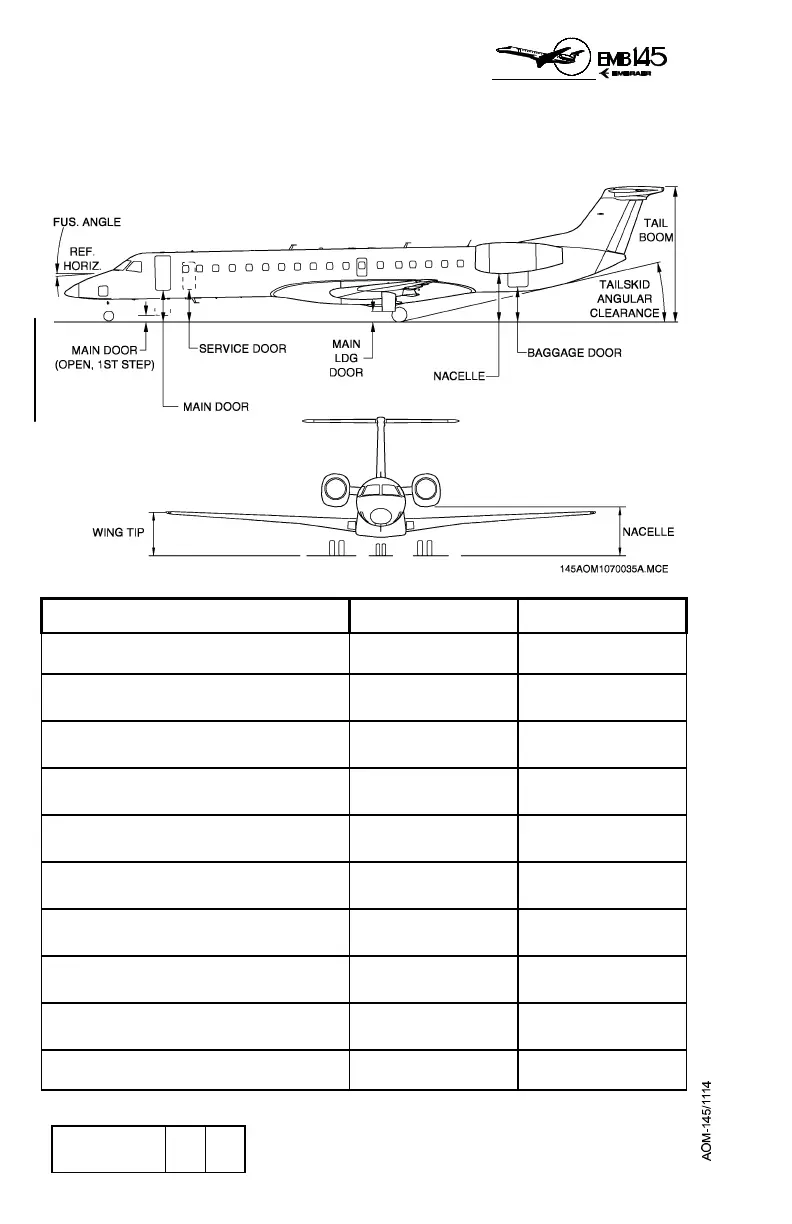

EMB-145 GROUND CLEARANCES
Vertical Clearance Maximum Minimum
Fuselage Angle 1° 21’ 24” 0° 52’ 00”
Main Door
1.598 m
5 ft 3 in
1.481 m
4 ft 10 in
Main Door Open (1st step)
0.480 m
1 ft 7 in
0.360 m
1 ft 2¼ in
Service Door
1.595 m
5 ft 3 in
1.408 m
4 ft 7 in
Main Landing Gear Door
0.471 m
1 ft 6½ in
0.398 m
1 ft 3¾ in
Nacelle
2.425 m
7 ft 11 in
2.315 m
7 ft 7 in
Baggage Door
1.806 m
5 ft 11 in
1.663 m
5 ft 5 in
Tail Boom
6.810 m
22 ft 4 in
6.619 m
21 ft 9 in
Wing Tip
2.022 m
6 ft 8 in
1.920 m
6 ft 4 in
Tailskid Angular Clearance 12° 41’ 00” 11° 43’ 59”
