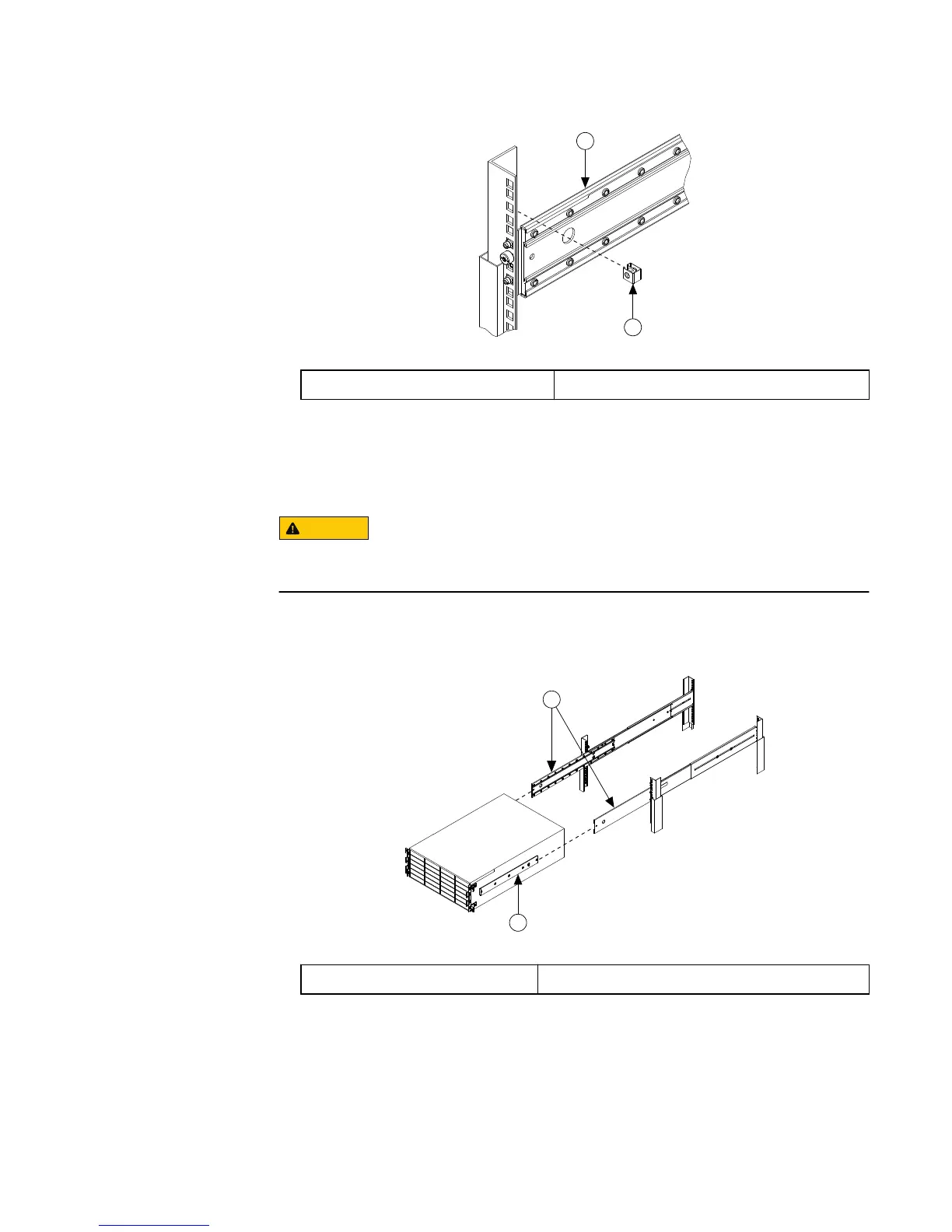

1. Outer slide rail 2. Clip-on nut retainer
Install the node in the rack
Secure the node to the storage rack.
To minimize the chance of personal injury or equipment damage, and to ensure proper
slide rail installation, it is recommended that two people lift and move the node.
Procedure
1. Fully extend each intermediate rail until the rail locks into place.
1. Inner Slide Rail
2. Intermediate Slide Rail
2. Keep the node level with the rails and align the ends of the inner rails with the ends of
the intermediate rails.
3. Insert the inner slide rails into the intermediate slide rails, then retract the slide rails
until the node is completely inserted in the rack cabinet.
4. Tighten the chassis retaining screws to secure the node in the rack.
Install a new node
Install the node in the rack 5
