Chapter 2 Installation Instruction 7
NetSure 701 A41, NetSure 501 A41, NetSure 501 A91 Subrack Power system User Manual
M6 screw
Connector
Subrack
power system
Battery
bracket
M6 screw
Connector

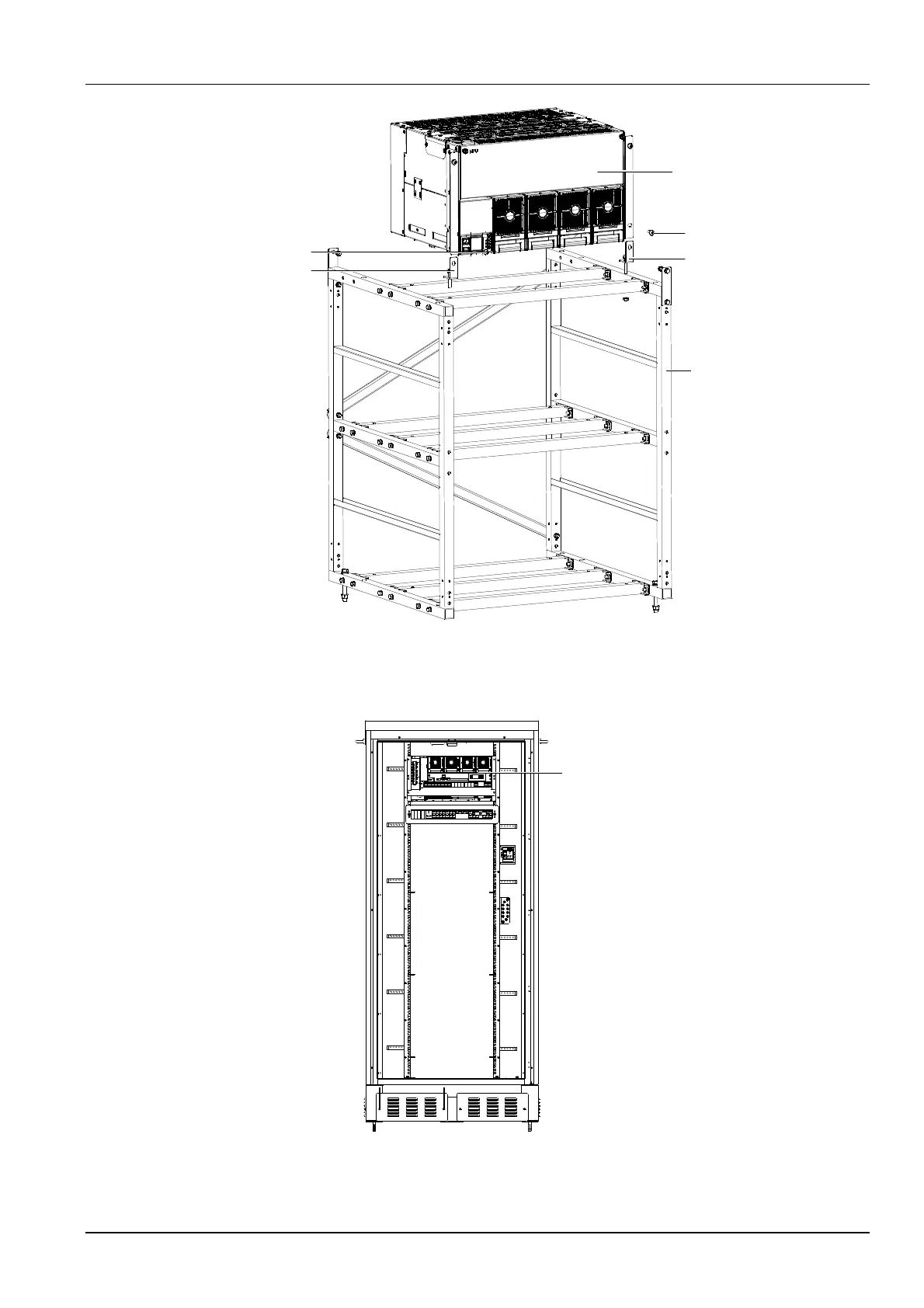

Figure 2-1 Cabinet and rack installation
Installed in cabient
Insert the subrack power system to the matching cabinet, as shown in Figure 2-2.
电源插框
Subrack power
system
Figure 2-2 Installed in the cabinet system
The engineering graphics of the s ubrack power system as shown in Figure 2-3 to Figure 2-8.

Emerson Network Power NetSure 501 A41-S1 Specifications

General

Brand	Emerson Network Power
Model	NetSure 501 A41-S1
Category	Power Supply
Language	English
