Emerson 96-SL - Page 6

Head Assembly
96-SL, Part No. 996-9123
96-DL, 96-TDL Part No. 996-9140

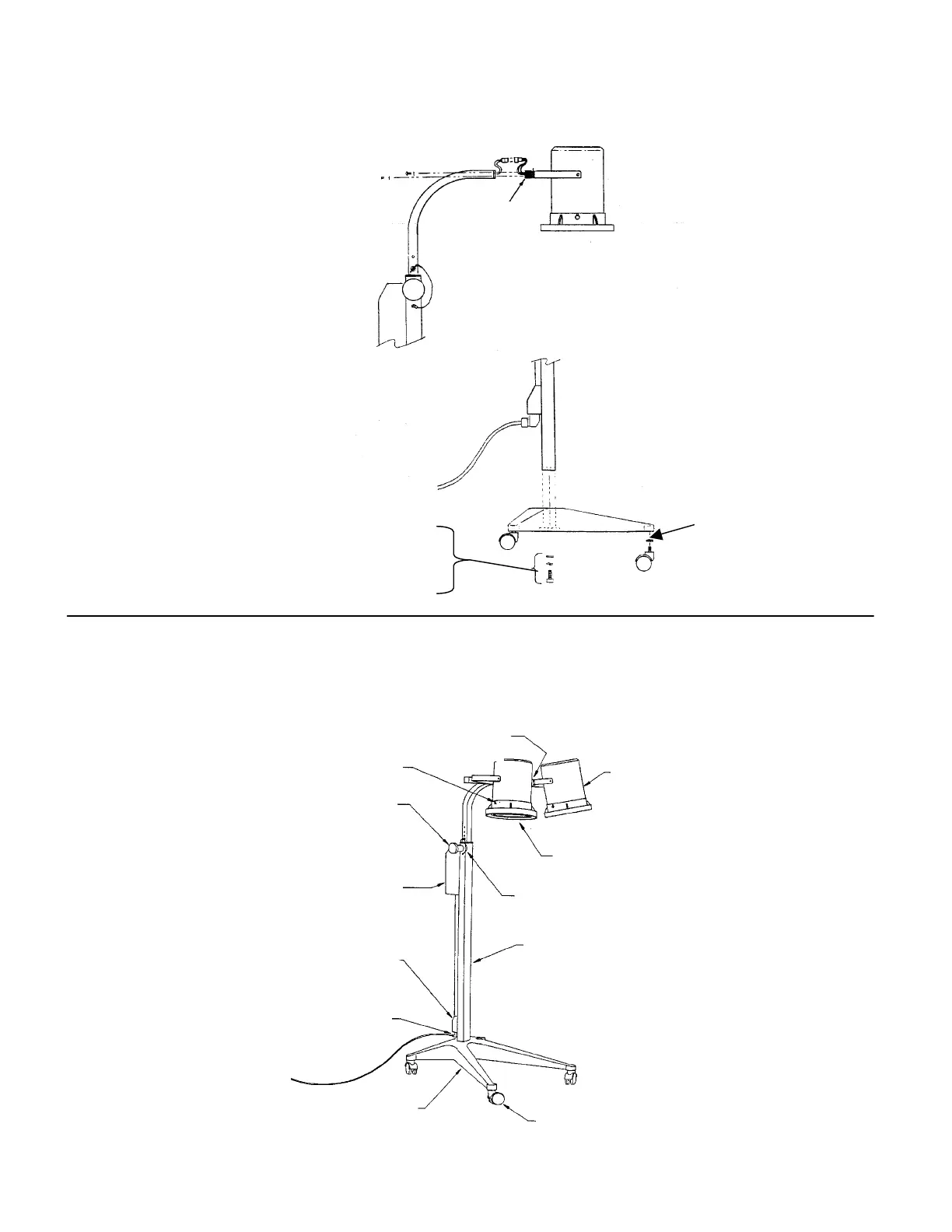

Figure 1 WARMING LIGHTS ASSEMBLY - 5 -
Figure 2 WARMING LIGHTS PARTS
8-32 X 1/2" Button Head Screw
and #8 Internal Tooth Lock washer
4 places
Tee Bar
Head Assembly
Cable
Connectors
Pole Assembly
Pole
Base
Caster, 4 each
5/16" Flat washer
5/16" Split Lock Washer
5/16-18 X 3/4" Hex Head Screw
5/16" Split Lock Washer,
4 each
Measuring Tape
Part No. 996-9122
Bezel Retaining
Part No. 996-9119
Pole Release
Knob
Lamp Assembly
Part No. 996-9104
Bezel/Screen Assembly
Part No. 996-9120
Safety Pin/Cable Assembly
Part No. 996-9116
Pole Assembly
96-SL, Part No. 996-9118
96-DL, Part No. 996-9139
96-TDL, Part No. 996-9115
Caste
r
Part No. 312-1009
Control Panel
Part No. 996-9106, 96-DL
Part No. 996-9105, 96-TDL
End Duct
96-SL, Part No. 996-0135
96-DL, 96-TDL Part No. 996-0129
Strain Relie
f
Part No. 694-2004
Base Assembly
Part No. 996-9101
Power Cord
Part No. 996-9109
Bulb
Part No. 648-3002
