ANTENNA/CABLE
CONNECTIONS
DIPOLE ANTENNA HOOK UP
1. Push the stem of the Dipole Antenna (accessory)
into the hole for antenna at the back of TV/VCR.
2. Connect the flat twin-lead cable from the Dipole
Antenna to the 300/75 ohm Matching Adapter
(accessory).
3. Plug the Matching Adapter to ANT terminal of

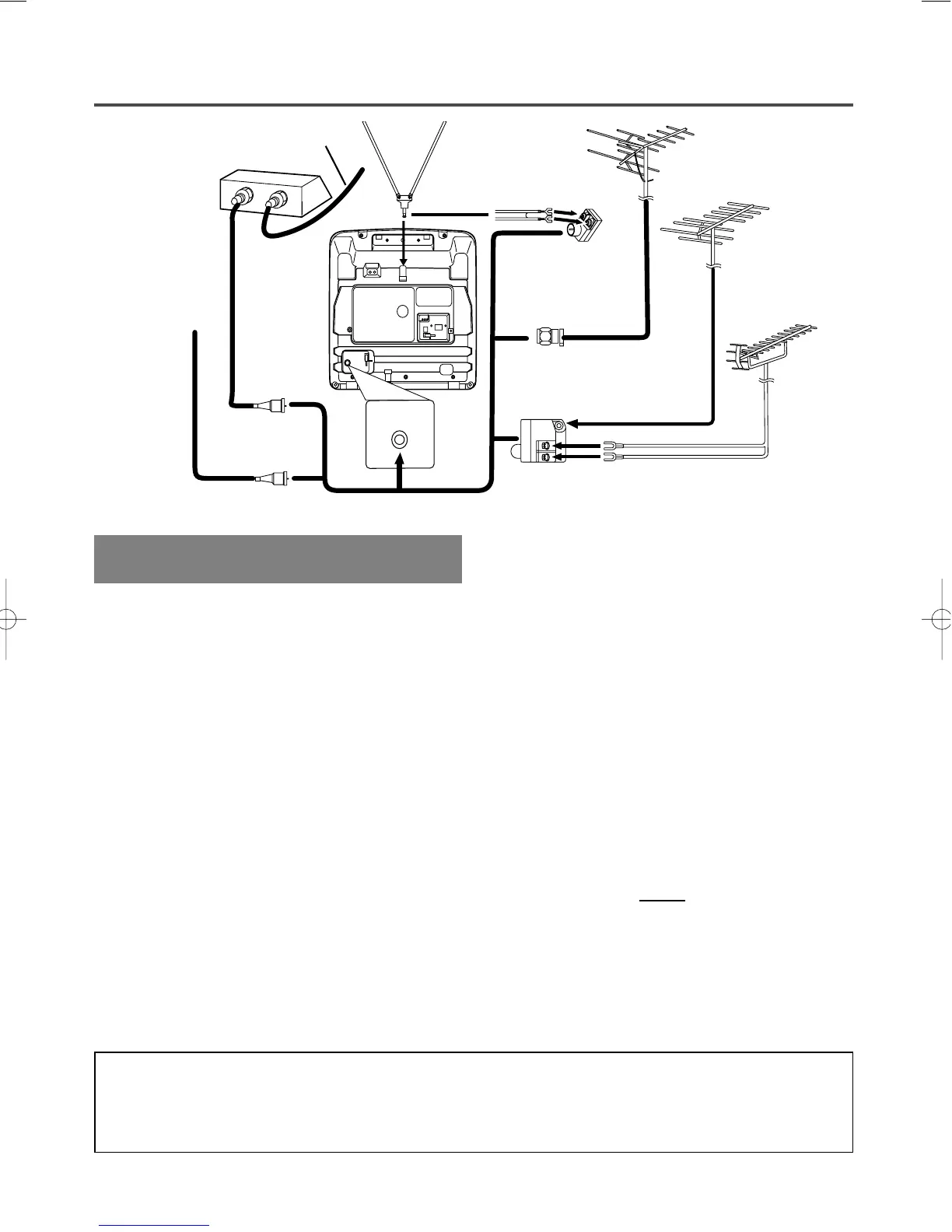

TV/VCR as shown in drawing.
For the best reception, extend the Dipole Antenna
and adjust its length and position. (Avoid handling
the top section when making adjustments).
NOTE: If it is difficult to get good reception with
the indoor antenna, the use of an outdoor antenna is
recommended. Before an outdoor antenna is connect-
ed to the set, the indoor antenna should be discon-
nected.
CABLE WITHOUT CONVERTER/
DESCRAMBLER BOX
Use this connection if your cable system connects
directly to your TV/VCR without a converter box.
By using this connection you can:
1) Use the TV/VCR remote to select channels.
2) Program one or more unscrambled channels for
Automatic Timer Recording.
NOTE: This unit will ONLY record and view the
same channel.
VHF/UHF SEPARATE ANTENNAS
In some areas it will be necessary to use an outdoor
antenna.
VHF/UHF COMBINED ANTENNA
A VHF UHF 75 ohm combination antenna can be
connected to ANT terminal.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connect-
ed to the grounding system of the building as close to the point of cable entry as practical.
Antenna/Cable Connections Continued on the Next Page.
