Emerson EWC1301 User Manual

- 7 - EN
9I03
OPERATING CONTROLS AND FUNCTIONS

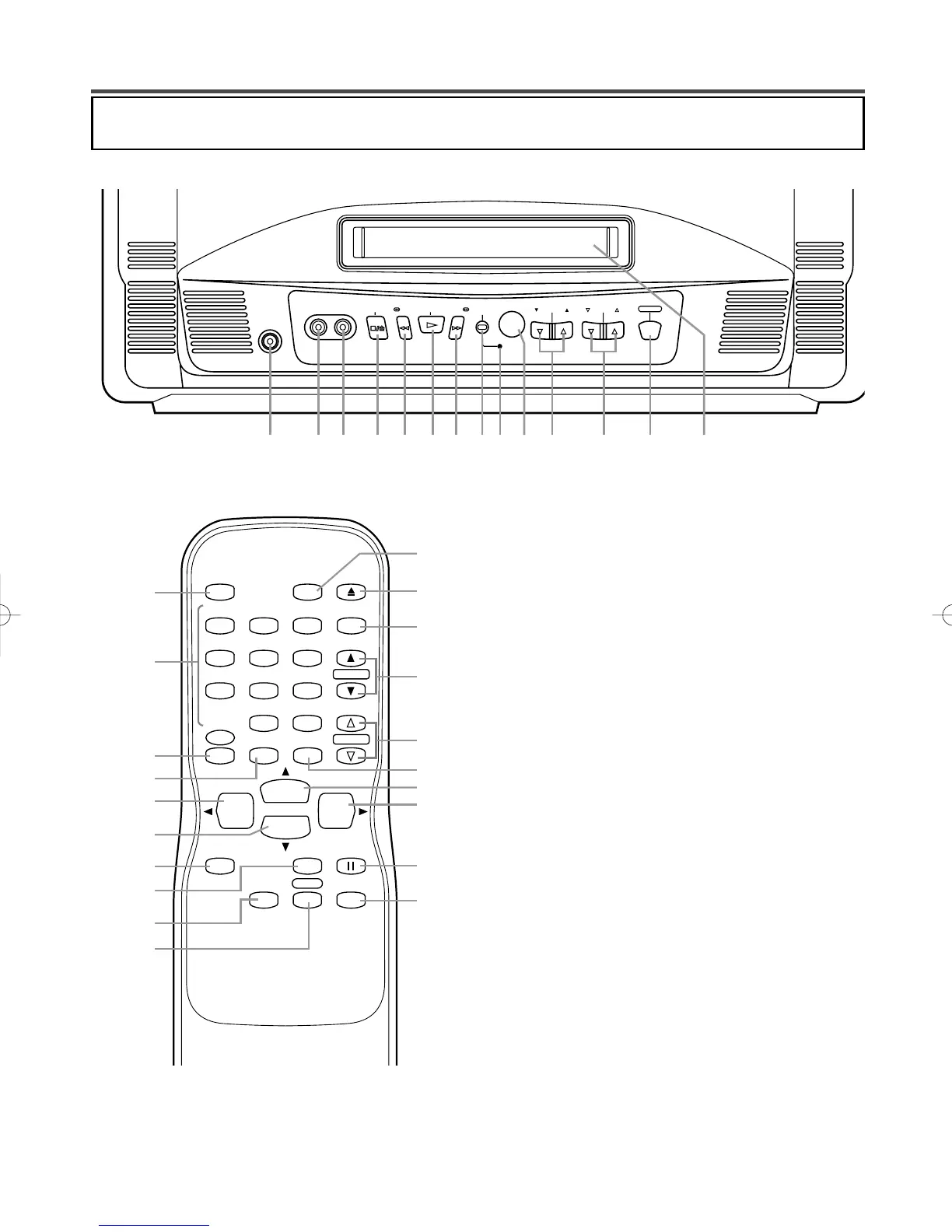

- TV/VCR FRONT PANEL - [Fig.1]
1
EARPHONE jack– Connects to earphones (not sup-
plied) for personal listening. The size of jack is
1/8” monaural (3.5mm).
2
AUDIO input jack– Connect to the audio output
jack of your audio equipment, video camera or
another VCR.
3
VIDEO input jack– Connect to the video output
jack of your video camera or another VCR.
4
STOP button– Press to stop the tape motion.
EJECT button– Press in the Stop mode to remove
tape from TV/VCR.
L
button–
•
Press to select setting modes from the on screen
menu.
•
Press to enter digits when setting program.
(for example: setting clock or timer program)
5
REW button– Press to rewind the tape, or to view
the picture rapidly in reverse during playback
mode. (Rewind Search)
s
button–
•
Press to select a mode from a particular menu.
(for example: LANGUAGE or USER’S SET UP)
6
PLAY button– Press to begin playback.
K
button–
•
Press to select setting modes from the on screen
menu.
•
Press to enter digits when setting program.
(for example: setting clock or timer program)
- REMOTE CONTROL - [Fig.2]
AUDIO
EARPHONE
VIDEO STOP/EJECT
REW
PLAY F.FWD
REC/OTR
CHANNEL
VOLUME
POWER
1 92 3 4 5 6 7 8 131011 1412
POWER
WAKE-UP
/SLEEP
123
456
789
+100
0
EJECT
CHANNEL
RETURN
REW
PLAY
STOP
F.FWD
GAME
RECORD
PAUSE/STILL SPEED
TIME SEARCH
CHANNEL
T-PROG.
CLEAR
COUNTER
RESET
DISPLAY MUTE
MENU
VOLUME
13
15
11
4
16
5
8
18
19
20
4
24
12
7
6
22
21
23
17
25
This manual covers 13
"
and 19
"
. The operation of the two models are exactly the same except the
appearance. 19
"
model is illustrated in this manual.
T5209/7209 01.2.14 6:35 PM Page 7
