10
EN
1L25
HOOKUPS
FOR TVs WITH S-VIDEO INPUT JACK
Use an S-Video cable (commercially available) in place of the yellow video cable to enjoy pictures at higher
quality.

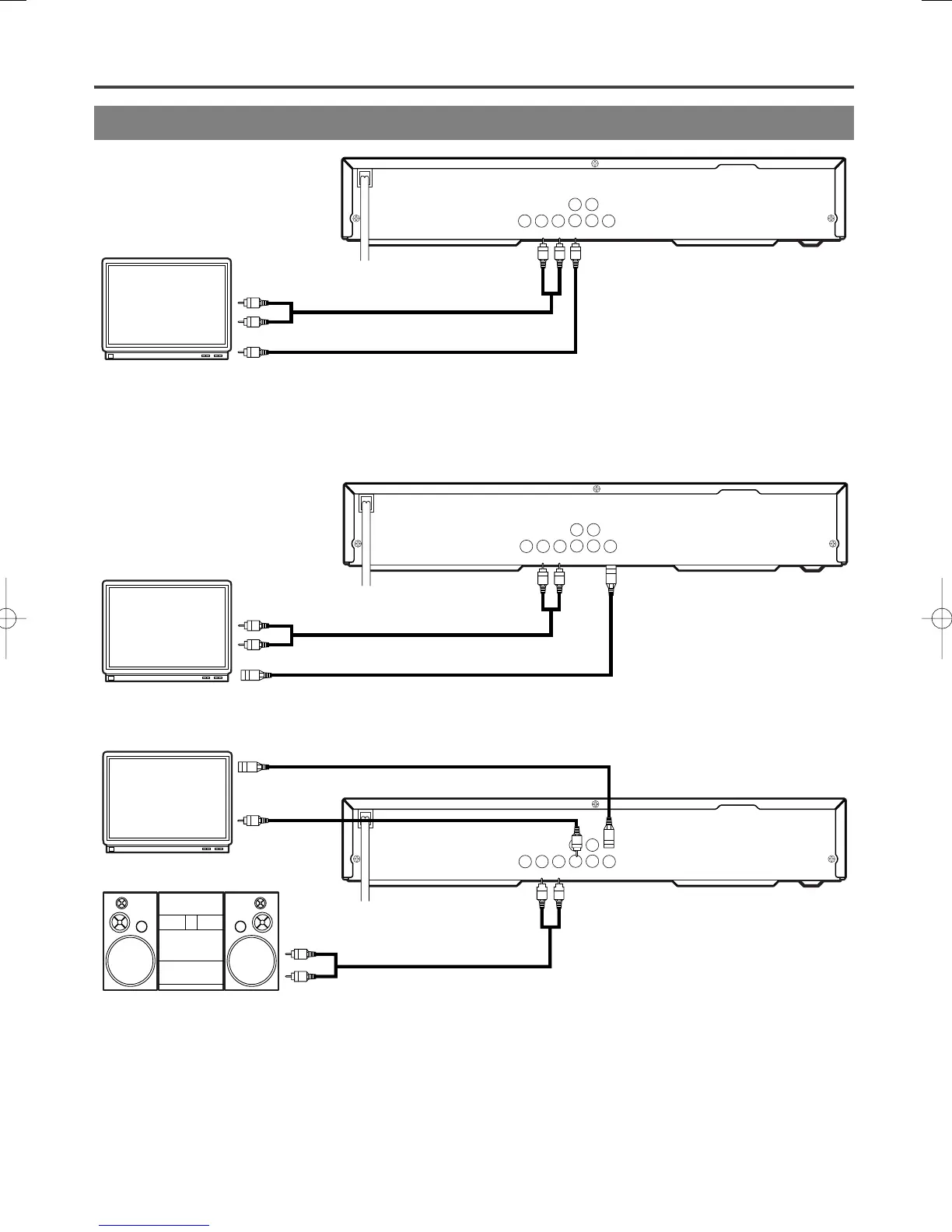

CONNECTING TO A TV
S-VIDEO
OUT
YCr
Cb
VIDEO
OUT
AUDIO OUT
RL
COAXIAL
A/V-compatible or
wide screen TV
To VIDEO OUT jackTo VIDEO INPUT jack
To Right (red) and Left (white)
AUDIO OUT jacks
AUDIO INPUT jacks
Notes
¡Connect the DVD player directly to a TV. If the A/V cables are connected to a VCR, pictures may be
distorted due to the copy protection system.
¡Be sure to turn off the power to all components in the system before connecting another component.
¡Refer to the Owner's Manuals for your TV, stereo system and any other components to be connected to the
DVD player.
S-VIDEO
OUT
YCr
Cb
VIDEO
OUT
AUDIO OUT
RL
COAXIAL
To Right (red) and Left (white)
AUDIO OUT jacks
A/V-compatible
or
wide screen TV
Stereo system
To VIDEO
INPUT jack
To VIDEO OUT jack
To S-VIDEO INPUT jack
To S-VIDEO OUT jack
or
To ANALOG AUDIO INPUT jacks
S-VIDEO
OUT
YCr
Cb
VIDEO
OUT
AUDIO OUT
RL
COAXIAL
To S-VIDEO OUT jackTo S-VIDEO INPUT jack
To Right (red) and Left (white)
AUDIO OUT jacks
AUDIO INPUT jacks
A/V-compatible or
wide screen TV
[Fig. 1]
[Fig. 2]
[Fig. 3]
