10
EN

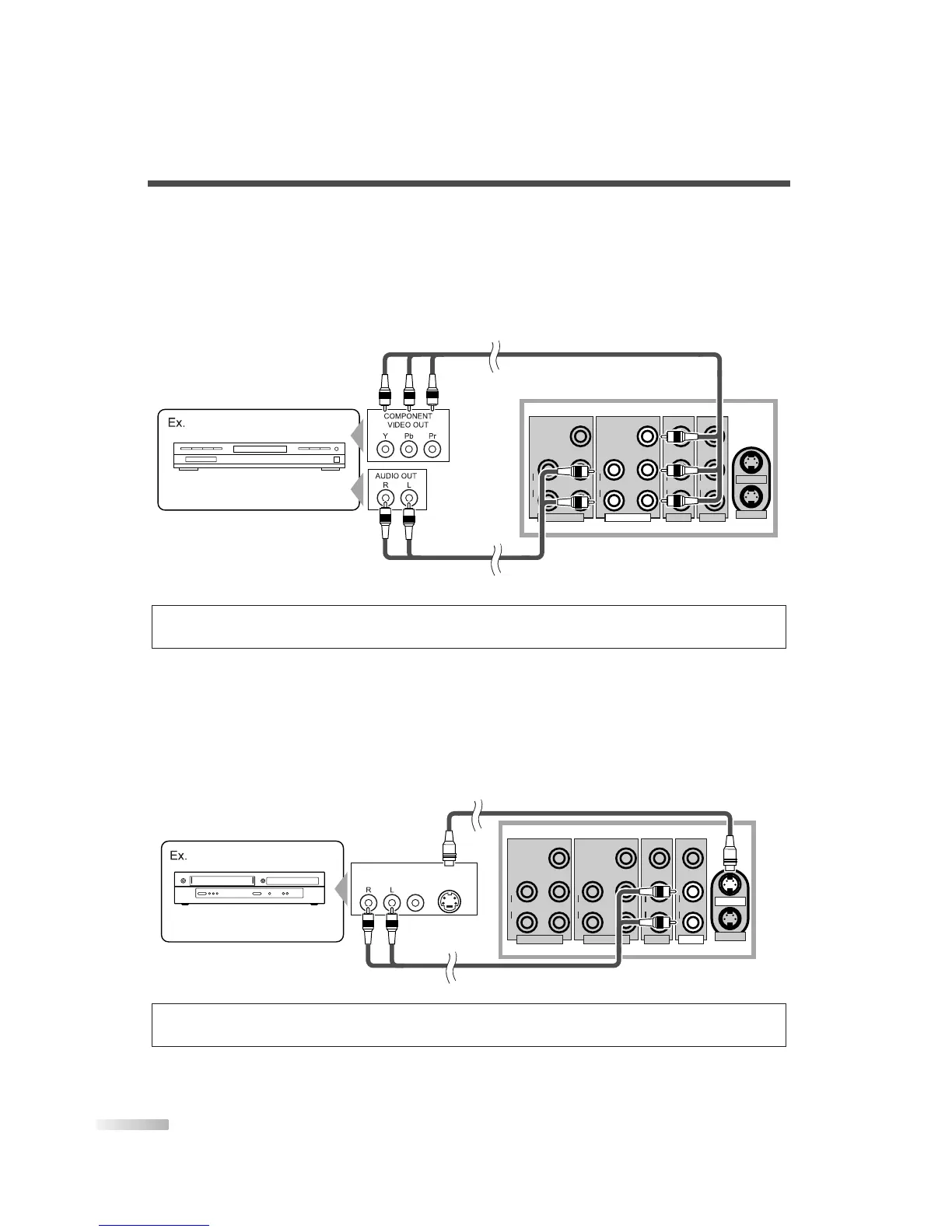

[COMPONENT CABLE CONNECTION]
Offers better picture quality for video devices connected to your TV.
Use a component video cable (not included) to connect your TV to external video devices equipped with
component video jacks.
If you connect to your TV’s COMPONENT1 input jack, connect audio cables to the AUDIO L/R jacks of COM-
PONENT1.
If you connect to your TV’s COMPONENT2 input jack, connect audio cables to the AUDIO L/R jacks of COM-
PONENT2.
[S-VIDEO CABLE CONNECTION]
Offers good picture quality for video devices connected to your TV.
Use an S-video cable (not included) to connect your TV to external video devices equipped with S-video con-
nectors.
If you connect to your TV’s S-VIDEO1 input jack, connect audio cables to the AUDIO L/R jacks of VIDEO1.
If you connect to your TV’s S-VIDEO2 input jack, connect audio cables to the AUDIO L/R jacks of VIDEO2.
NOTE:
• If you connect to the S-VIDEO jack and the VIDEO jack at the same time, the S-Video connection will have priority.
S-VIDEO1
S-VIDEO2
VIDEO1
VIDEO
VIDEO2COMPONENT1
VIDEOY
Pb
Pr
COMPONENT2
Y
Pb
Pr
AUDIO
L
R
AUDIO
L
R
AUDIO
L
R
AUDIO
L
R
AUDIO
OUT
VIDEO
OUT
S-VIDEO
OUT
DVD/VCR with
the S-Video output jack
To S-Video
output jack
To S-VIDEO1
input jack
To audio
output jacks
Rear of this TVTo AUDIO
input jacks
Audio cable
(not included)
S-video cable (not included)
NOTE:
This TV accepts 480i / 480p / 720p / 1080i video signals.
S-VIDEO1
S-VIDEO2
VIDEO1
VIDEO
VIDEO2COMPONENT1
VIDEOY
Pb
Pr
COMPONENT2
Y
Pb
Pr
AUDIO
L
R
AUDIO
L
R
AUDIO
L
R
AUDIO
L
R
DVD Player with the component
video output jacks
To component video
output jacks
To COMPONENT1
input jacks
Rear of this TV
To audio
output jacks
To AUDIO
input jacks
Audio cable
(not included)
Component video cable (not included)
