Instruction Manual
D102175X012
EZ-C, ET-C, and EWT-C Valves
July 2017
16
ENVIRO‐SEAL Packing Repair Kits
Repair kits include parts to replace the “soft” packing materials in valves that already have ENVIRO‐SEAL packing
arrangements installed or in valves that have been upgraded with ENVIRO‐SEAL retrofit kits. Refer to figure 6 for key
numbers for PTFE and Graphite ULF packing.
Stems and packing box constructions that do not meet Fisher stem finish specifications, dimensional tolerances, and
design specifications, may adversely alter the performance of this packing kit.
ENVIRO‐SEAL Packing Repair Kits
Stem Diameter, mm (Inches)
Yoke Boss Diameter, mm (Inches)
9.5 (3/8)
54 (2‐1/8)
12.7 (1/2)
71 (2‐13/16)
19.1 (3/4)
90 (3‐9/16)
25.4 (1)
127 (5)
Double PTFE (Contains keys 214, 215, & 218) RPACKX00192 RPACKX00202 RPACKX00212 RPACKX00222
Graphite ULF (Contains keys 207, 208, 209, 210, and 214) RPACKX00592 RPACKX00602 RPACKX00612 RPACKX00622
Duplex (Contains keys 207, 209, 214, and 215) RPACKX00292 RPACKX00302 RPACKX00312 RPACKX00322

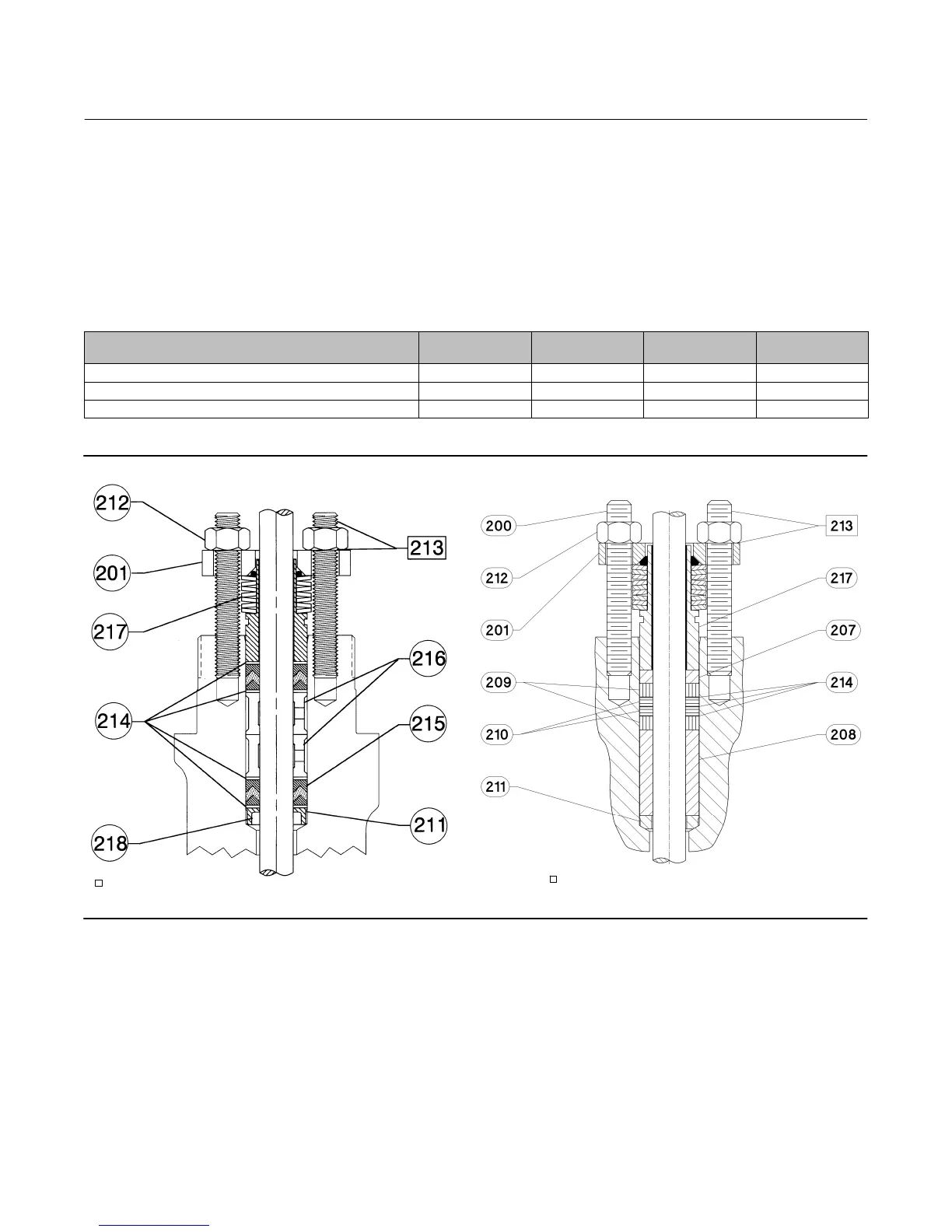

Figure 6. ENVIRO‐SEAL Packing System
A6362/G1
39B4612/A
PTFE PACKING ARRANGEMENT
GRAPHITE ULF PACKING ARRANGEMENT
APPLY LUBRICANT
APPLY LUBRICANT
