Emerson Fisher EZ-C User Manual

Instruction Manual
D102175X012
EZ-C, ET-C, and EWT-C Valves
July 2017
6

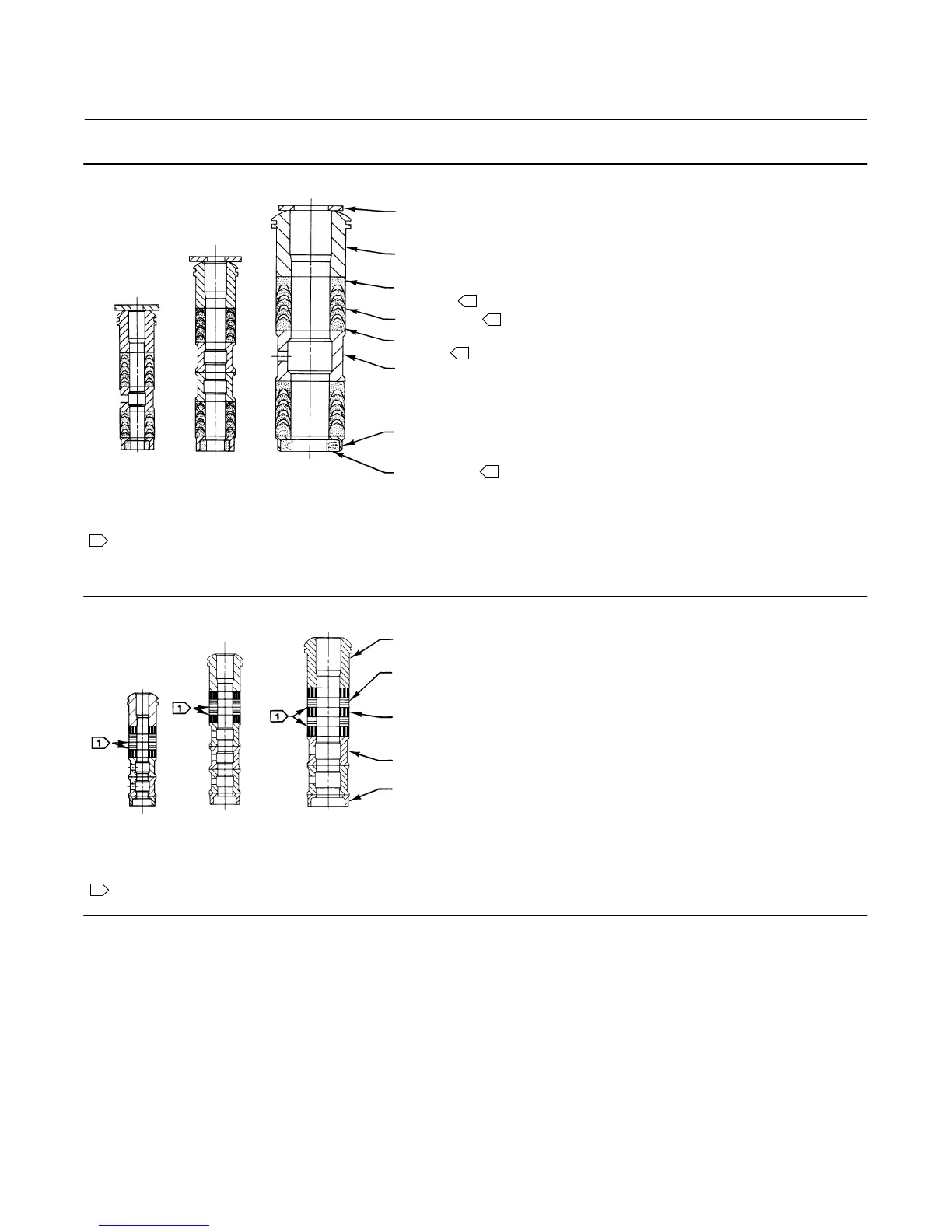

Figure 3. Double PTFE V‐Ring Packing Arrangements
A6746
9.5 mm
(3/8 INCH)
STEM
12.7 mm
(1/2 INCH)
STEM
19.1, 25.4, OR 31.8 mm
(3/4, 1, OR 1‐1/4 INCH)
STEM
UPPER WIPER
(KEY 12)
PACKING
FOLLOWER (KEY 13)
LANTERN RING
(KEY 8)
PACKING BOX
RING (KEY 11)
FEMALE
ADAPTER
PACKING RING
MALE
ADAPTER
LOWER WIPER
NOTE:
PACKING SET (KEY 6) CONTAINS A FEMALE ADAPTER, V-RING PACKING RINGS, MALE ADAPTER, AND LOWER WIPER RINGS.
1
1
1
1
1
Figure 4. Graphite Ribbon/Filament Packing Arrangements
GRAPHITE RIBBON
PACKING RING
(KEY 7)
PACKING
FOLLOWER (KEY 13)
LANTERN RING
(KEY 8)
PACKING BOX
RING (KEY 11)
NOTE:
0.102 mm (0.004 INCH) THICK SACRIFICIAL ZINC WASHERS: USE ONLY ONE BELOW EACH GRAPHITE RIBBON RING.
1
A6747
9.5 mm
(3/8 INCH)
STEM
12.7 mm
(1/2 INCH)
STEM
19.1, 25.4, OR 31.8 mm
(3/4, 1, OR 1‐1/4 INCH)
STEM
GRAPHITE FILAMENT
PACKING RING
(KEY 7)
