The wall outlet for your dispenser must have power supplied to it continuously
and must be fused. It should not be controlled by the same wall switch
that operates your disposer, unless using an InSinkErator SinkTop Switch
™
.
*component parts pre-installed on dispenser
PREPARATION
START HERE
Identify locations for the dispenser
faucet, tank and filter (if applicable).
Check to make sure there is proper
clearance (see chart at left) for
dispenser handles to be fully opened.
Check to make sure counter is not
too thick (see chart at left).
Make sure there is a grounded
electrical outlet under the sink.
Turn off water supply.
If using the sink sprayer hose hole,
remove nut that connects sprayer
hose at bottom of faucet.
Using adjustable wrench, remove nut
connecting sprayer washer flange in
sprayer hole.
Plug hose opening with either a 1/8"
plug or a 1/4" cap (not supplied).
a
b
If you have to drill through sink or
countertop, you may need to rent or
purchase the appropriate tools.
Consult a professional before drilling into
a surface other than stainless steel.
C
Required minimum
from center of hole
to wall
Maximum counter
thickness (depth)
What if you don’t have a sprayer hole
or don’t want to use it?
Many homeowners replace the
soap dispenser in their sink with an
instant hot water dispenser.
If drilling a hole into a stainless steel
sink or counter top, you can cut
a mounting hole for the dispenser
with a hole saw for stainless steel,
or you can use a hole punch.
Required Hole Size
1-1⁄4" – 1-1⁄2"
Dependent on model
HC-View-SS ..... 2-5⁄8" .................... 3"
H-View-SS ....... 2-5⁄8" .................... 3"
HC-Wave-SS .... 2-5⁄8" .................... 3"
H-Wave-SS ...... 2-3⁄8" .................... 3"
H-Contour-SS ... 2" ...........................3"
H-Classic-SS .... 2" ........................... 3"
Hot100 ............. 2" ........................... 2"
Hot150 ............. 2" ........................... 2"

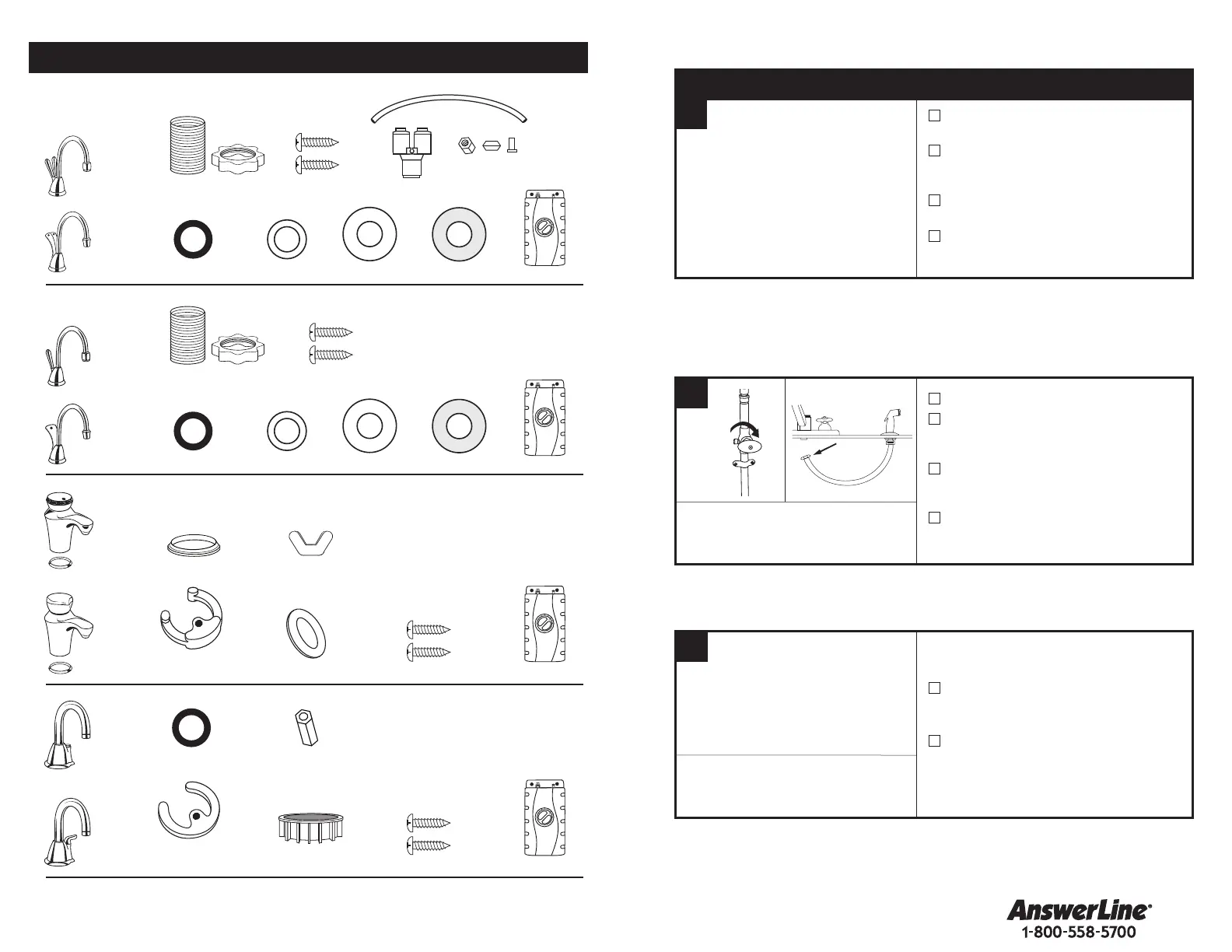

COMPONENTS IN THIS PACKAGE
H-Classic-SS
H-Hot150
HC-View-SS
H-View-SS
H-Wave-SS
HC-Wave-SS
1/4" Tube
Brass Nut / Ferrule /
Tube Insert
Quick Connector
3/4" Screws (2)
Extension & Star Nut*
Small Steel*
FiberRubber* Large Steel
Washers
1-1/2"
1-1/4"
Semi-Circular
Mounting Plate
1-1/4"
1-5/16"
Small Steel*
FiberRubber* Large Steel
Washers
1-1/2"
1-1/4" 1-1/4"
1-5/16"
3/4" Screws (2)
Extension & Star Nut*
H-Contour-SS
Wing NutTrim Ring
Tank
Tank
3/4" Screws (2)
Semi-Circular
Mounting Plate
Flat Gasket
Tank
3/4" Screws (2)
Tank
Plastic Spacer
H-Hot100
Long Nut
Rubber Washer
1
5
4
To Next Page
