Emerson LC260EM1 User Manual

12
EN

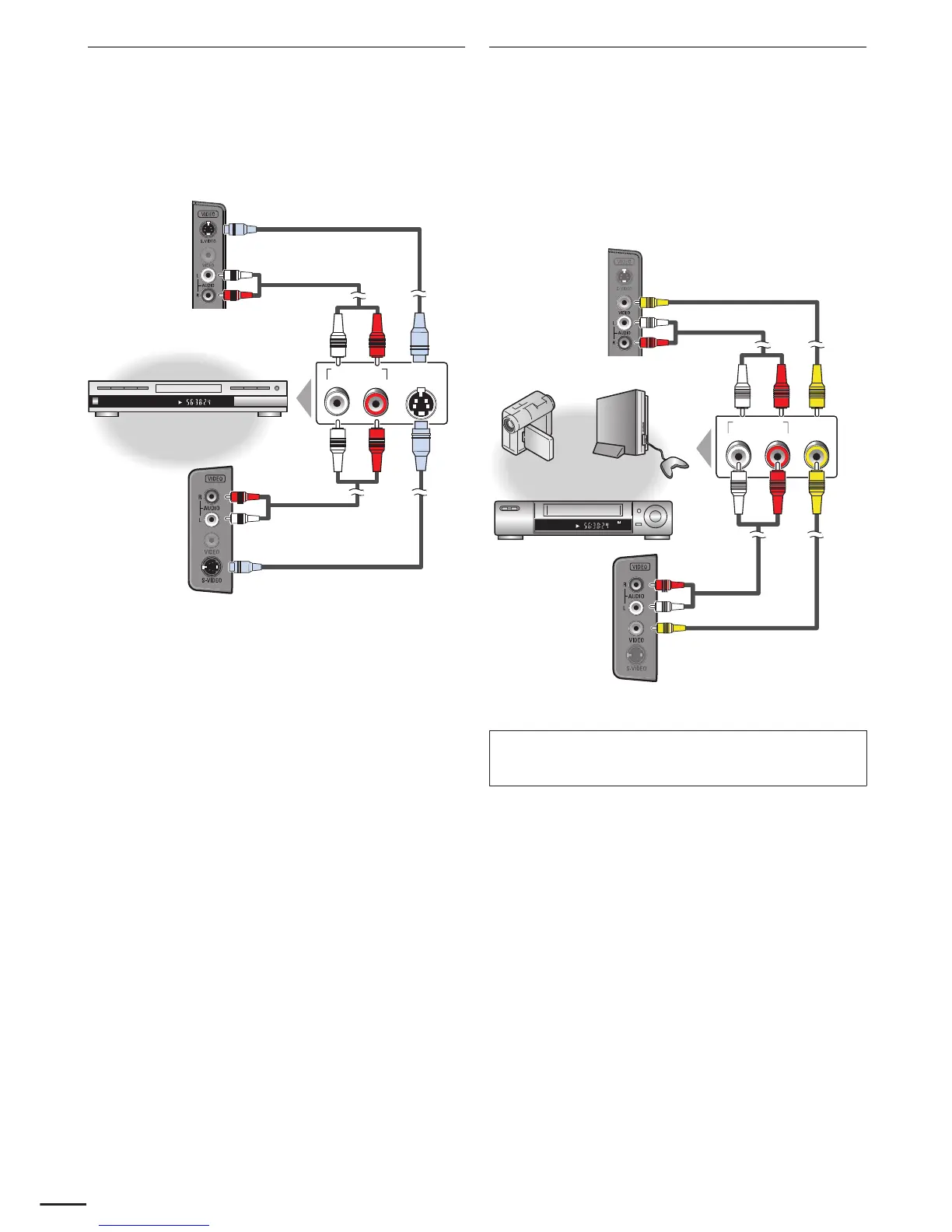

S-Video Connection
S-Video connection offers good picture quality for video
devices connected to the unit. If you connect to the unit’s
S-Video Input jack, connect audio cables to the Audio L/R
Input jacks right beside the Composite Video connector.
e.g.)
CHAPTER 15
REPEAT A-B
TITLE 5
AUDIO OUT
RL
S-VIDEO
OUT
BD/DVD recorder, camcorder
and VCR with the S-Video output jack
S-Video cable
audio cables
side of this unit
side of this unit
LC260EM1
LC320EM1F / LC320EM1
audio cables
S-Video cable
Composite Video Connection
Composite Video connection offers standard picture quality
for video devices connected to the unit. If you connect to
the unit’s Composite Video Input jack, connect audio cables
to the Audio L/R Input jacks right beside the Composite
Video connector. When the audio jack of the video device is
monaural, connect an audio cable to the Audio L Input jack.
e.g.)
STEREO
STAND-BY
AUDIO OUT
RL
VIDEO
OUT
audio cables
audio cables
composite video cable
composite video cable
camcorder
video game
VCR
side of this unit
side of this unit
LC260EM1
LC320EM1F / LC320EM1
Note
•
If you connect to the S-Video Input jack and the Composite Video Input
jack at the same time, the S-Video connection will have priority.
