Audio Output Connection
Digital (for digital broadcasting only)
If you connect this unit to an external digital audio device,
you can enjoy multi-channel audio like 5.1ch digital
broadcasting sound.
Use a digital audio coaxial cable to connect the unit to
external digital audio devices.
Analog (for both analog and digital broadcasting)
If you connect this unit to an external analog audio device,
you can enjoy stereo (2-channel) audio.
Use audio cables to connect the unit to external analog
audio devices.

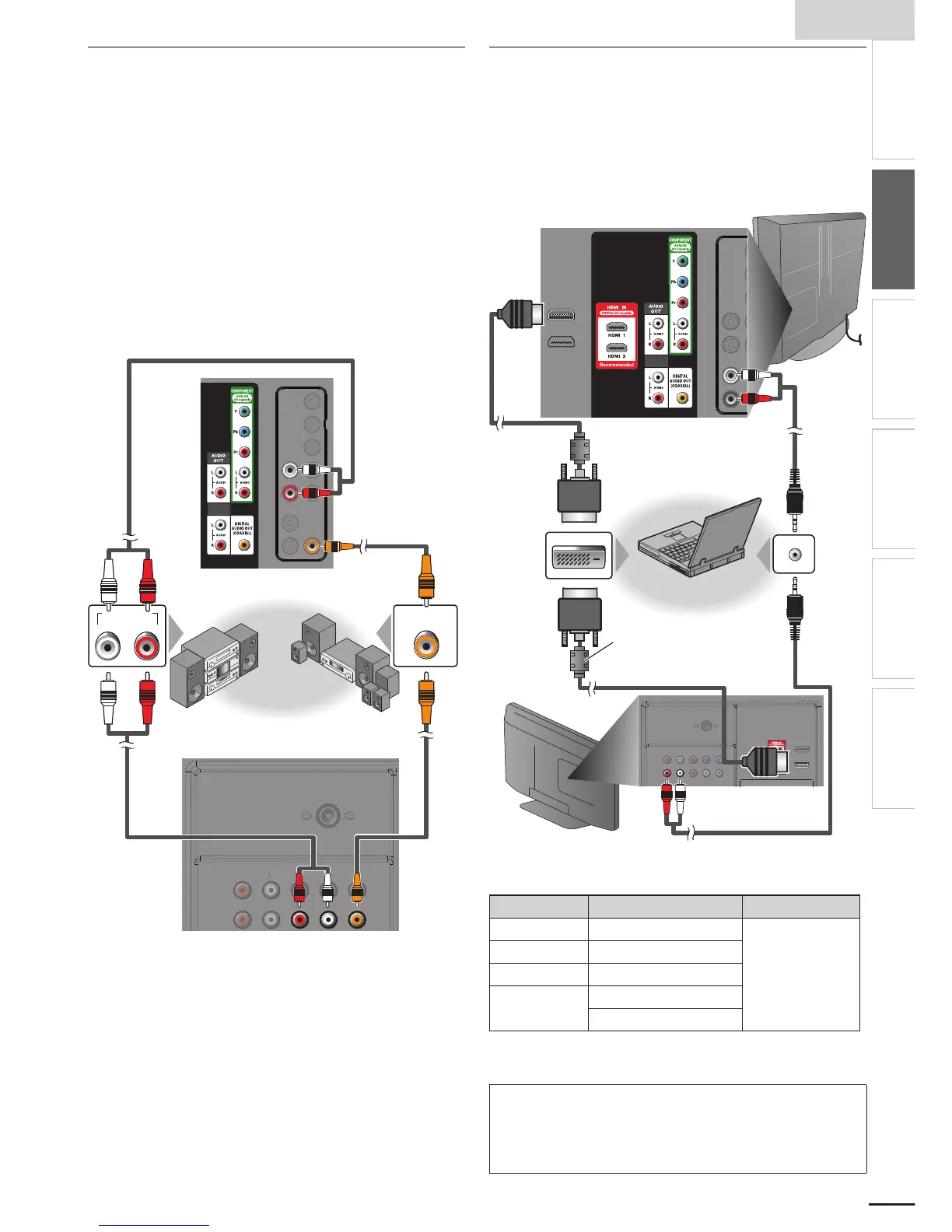

e.g.)
LC320EM1F / LC320EM1
R L Pr Pb Y
DVI
ANALOG
AUDIO
DIGITAL AUDIO
COAXIAL IN
AUDIO IN
RL
Dolby Digital
decoder
coaxial cable
rear of this unit
rear of this unit
stereo system
audio cables
LC260EM1
audio cables
PC Connection
This unit can be connected to your PC that has a DVI terminal.
Use an HDMI-DVI conversion cable for this connection and it
requires stereo mini plug conversion cables as well.
If you connect this unit to your PC, you can use this unit as a
PC monitor.
e.g.)
LC320EM1F / LC320EM1
DVI
ANALOG
AUDIO
DVI OUT
stereo mini plug
conversion cables
stereo mini plug
conversion cables
HDMI-DVI conversion
cable
rear of this unit
HDMI-DVI conversion cable
should be with ferrite core.
personal computer
HDMI-DVI conversion cable
rear of this unit
LC260EM1
The following video signals can be displayed:
Format Resolution Refresh rate
VGA 640 x 480
60Hz
SVGA 800 x 600
XGA 1, 024 x 768
WXGA
1, 280 x 768
1, 360 x 768
Other formats or non-standard signals will not be displayed
correctly.
Note
•
Please purchase the HDMI-DVI conversion cable that has a ferrite core.
•
The following operations may reduce noise.
- Attach a ferrite core to the AC power cord of your PC.
- Unplug the AC power cord and use the built-in battery of your PC.
