8-6
A71F3SCJ

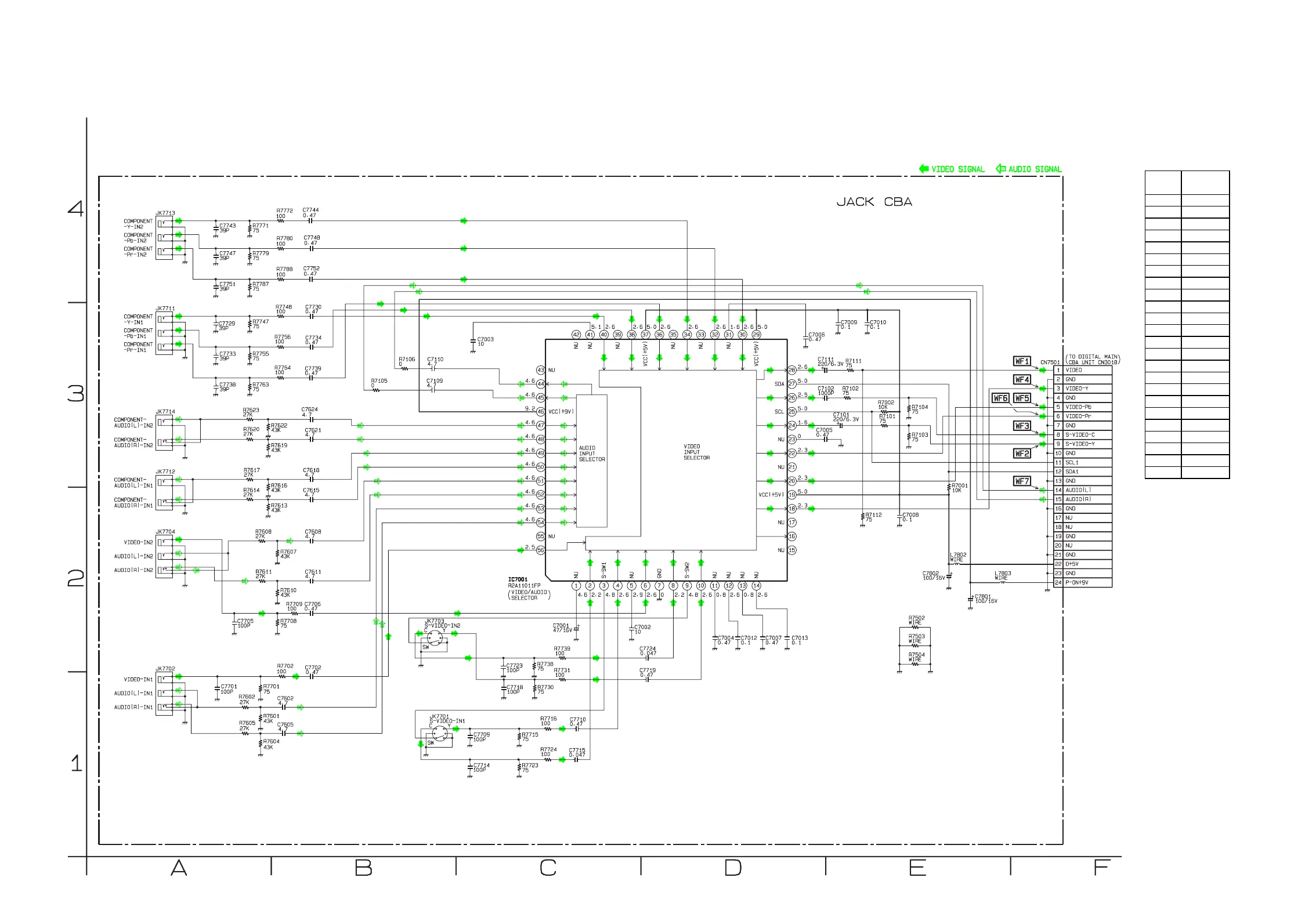

Jack Schematic Diagram
CN7501
12.6
20
32.3
40
52.3
60
70
80
90
10 0
11 5.0
12 5.0
13 0
14 2.5
15 2.5
16 0
17 ---
18 ---
19 0
20 ---
21 0
22 5.0
23 0
24 9.1
VOLTAGE CHART
Pin No. Voltage
