8-7
A71F3SCF

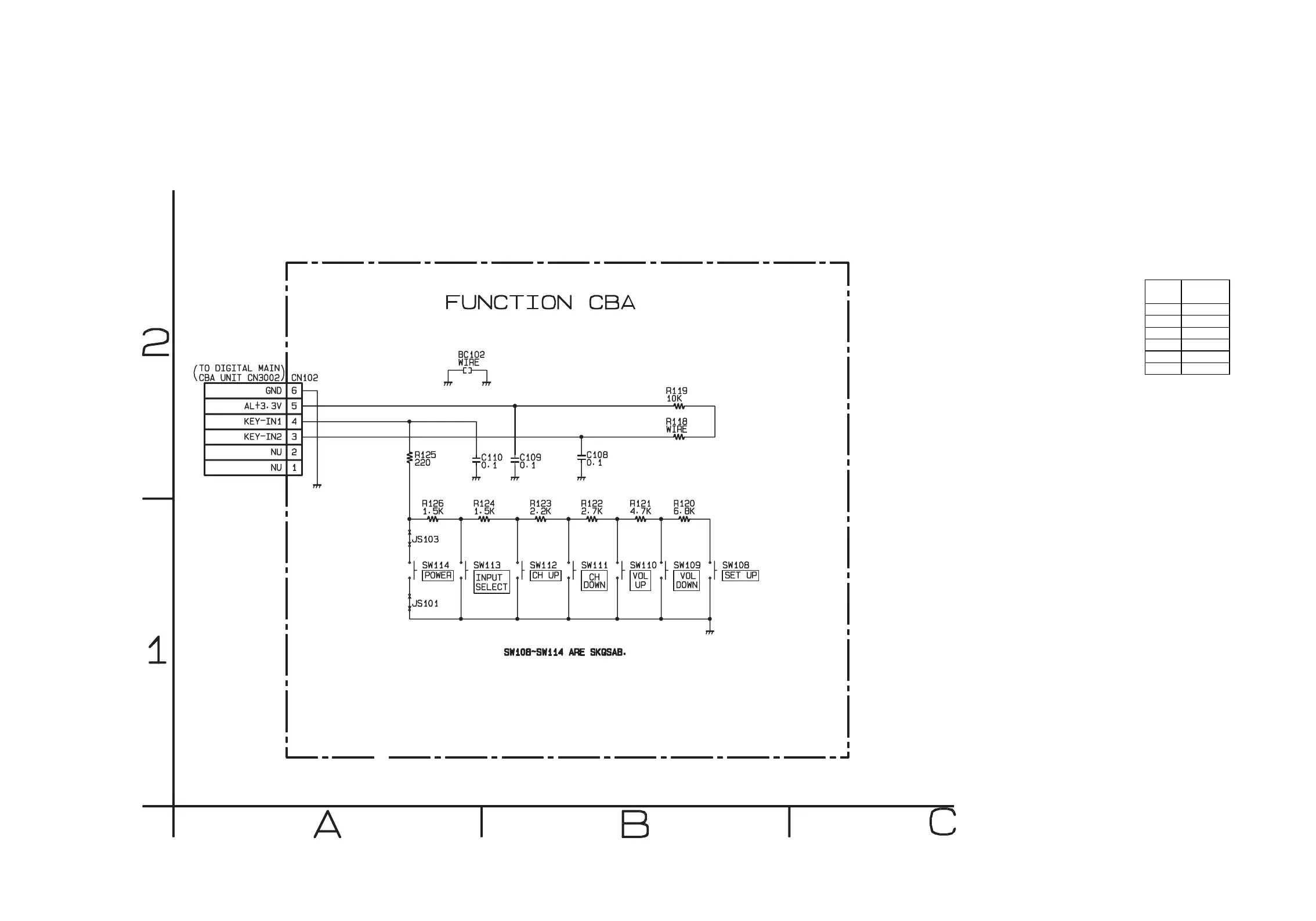

Function Schematic Diagram
CN102
1---
2---
33.4
43.4
53.4
60
VOLTAGE CHART
Pin No. Voltage
